Lubrication System: Component

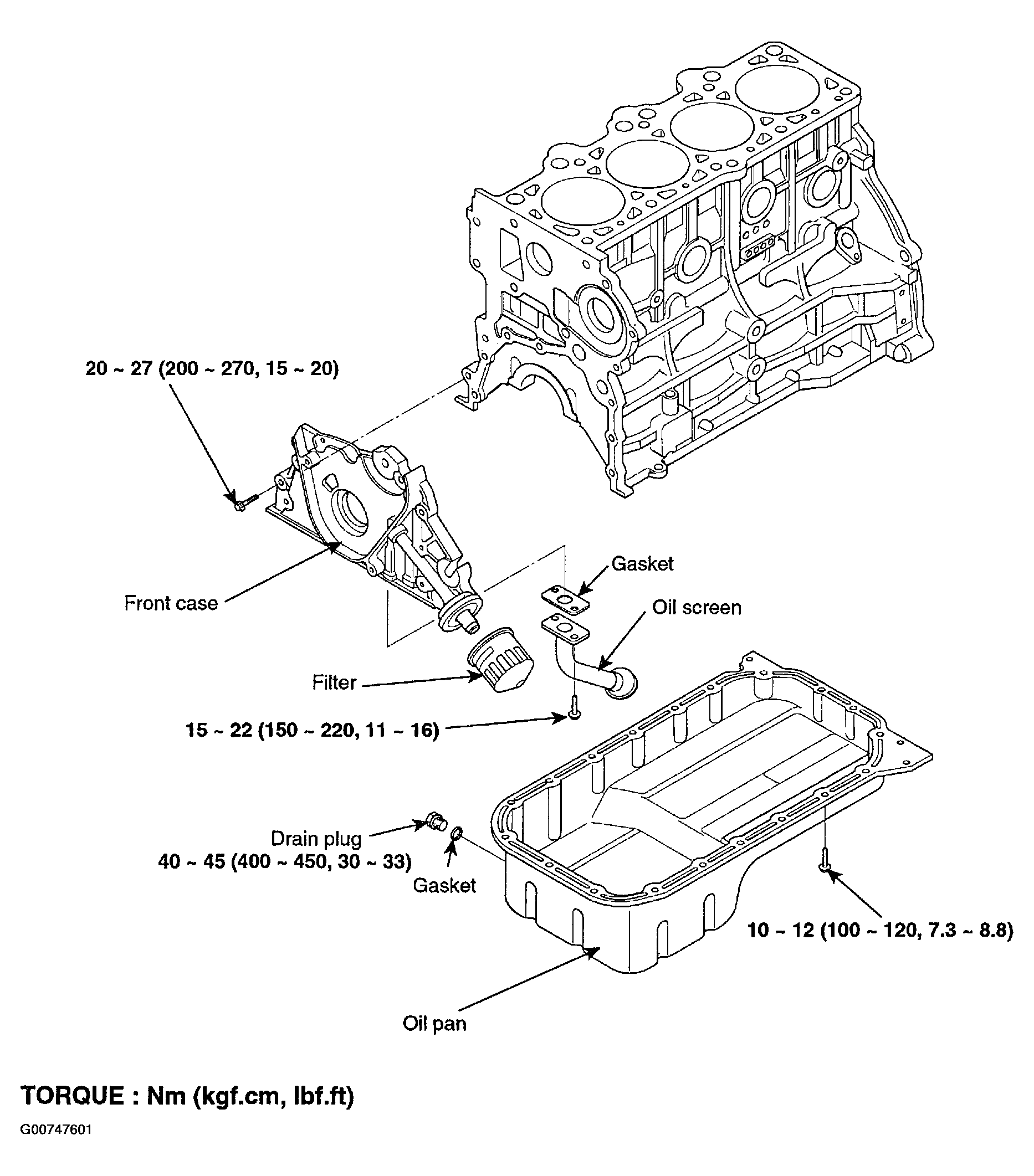

Fig 1: Identifying Lubrication System (1 Of 2)

G00747601

Courtesy of HYUNDAI MOTOR CO.

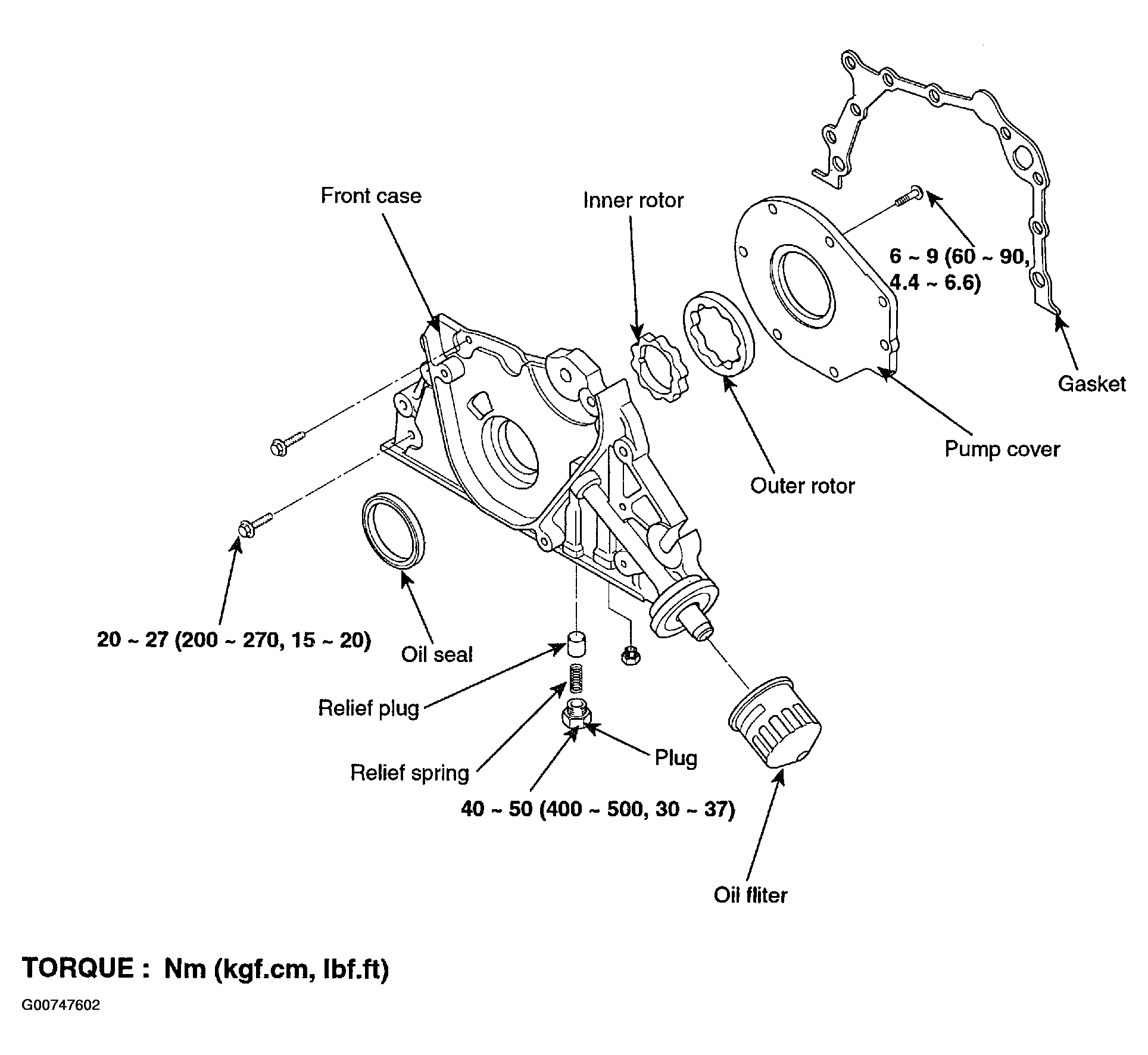

Fig 2: Identifying Lubrication System (2 Of 2)

G00747602

Courtesy of HYUNDAI MOTOR CO.
