Removal & Installation

  1. Disconnect the negative (-) battery terminal.
  2. Remove the 2 screws(A) holding the instrument facia panel.

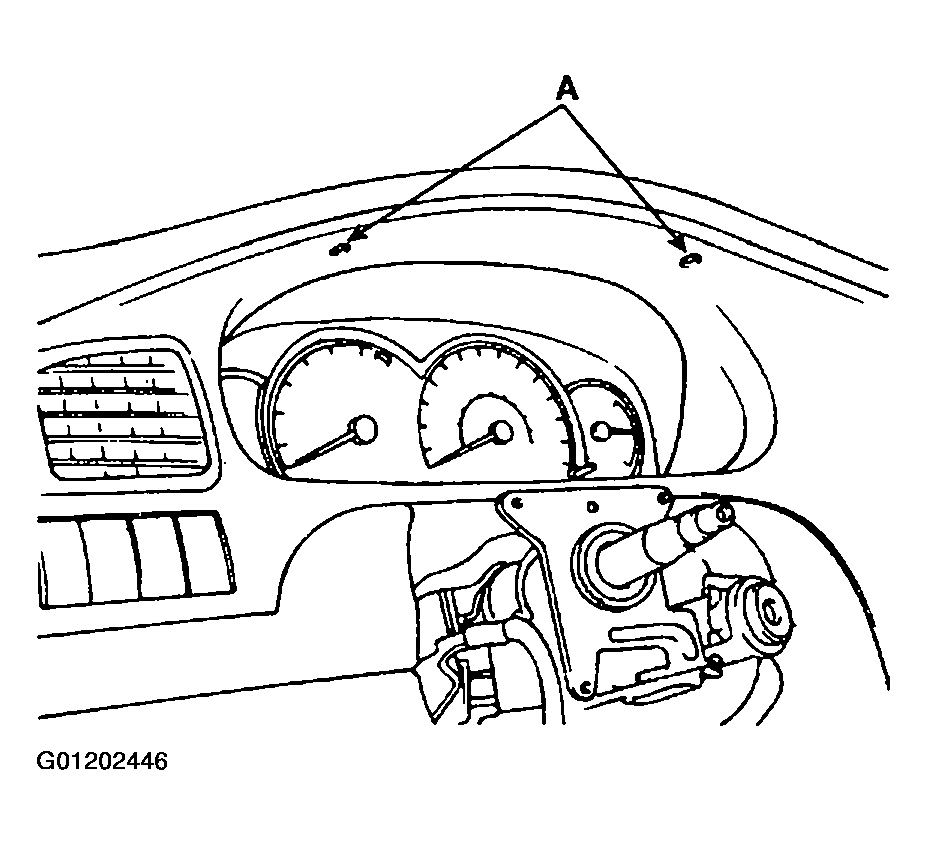

    Fig 1: Identifying Fascia Panel Screws
    G01202446Courtesy of HYUNDAI MOTOR CO.
  3. Remove the ash tray then remove the 2 screws(A) holding the instrument fascia panel.

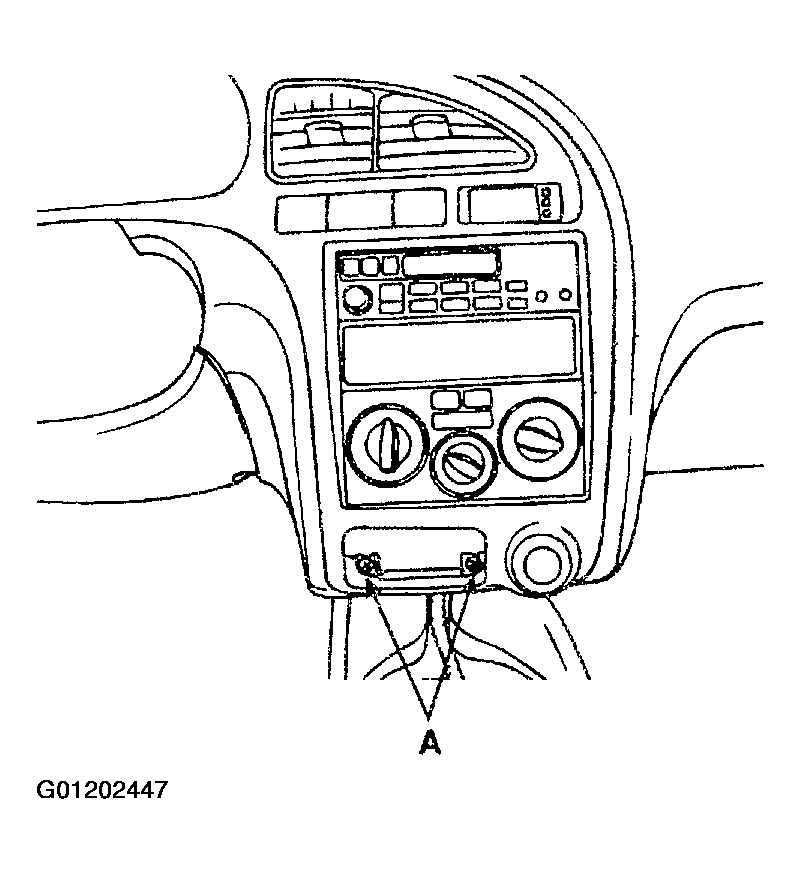

    Fig 2: Identifying Screws Behind Ash Tray
    G01202447Courtesy of HYUNDAI MOTOR CO.
  4. Remove the instrument facia panel.

    Remove the air conditioner switch panel(A) after removing 4 screws.

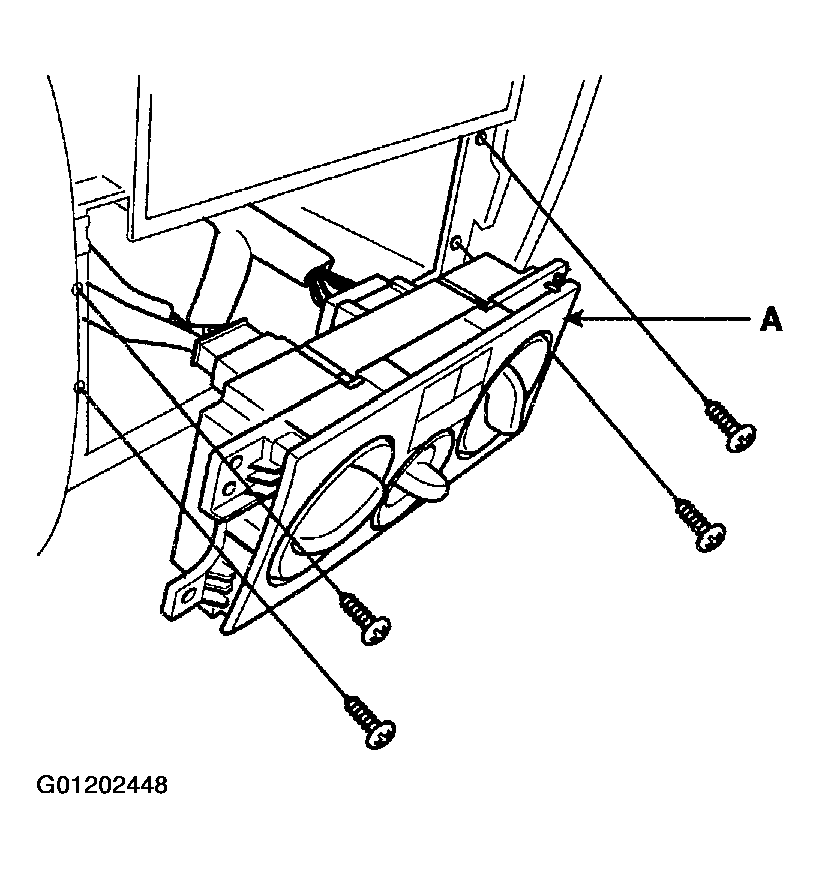

    Fig 3: Identifying Air Conditioner Switch Panel Screws
    G01202448Courtesy of HYUNDAI MOTOR CO.
  5. Remove the ETACS module (A) after removing 2 bolts.

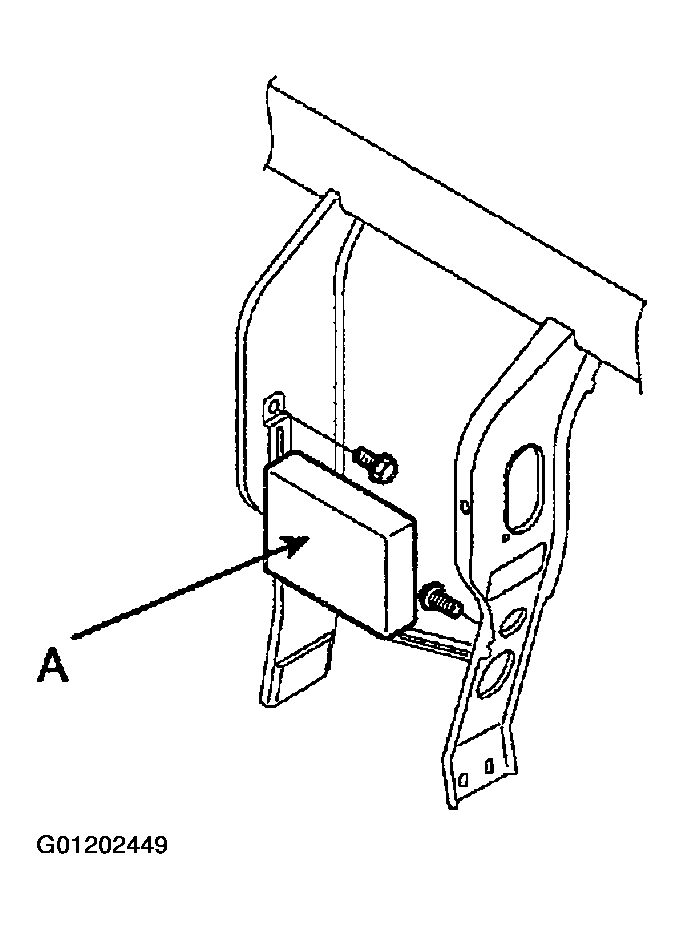

    Fig 4: Identifying ETACS Module Screws
    G01202449Courtesy of HYUNDAI MOTOR CO.
  6. Installation is the reverse of removal.
