Home >> Hyundai >> 2004 >> Elantra GLS, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission Overhaul >> Service Specifications

Service Specifications

NOTE: Overhaul information is not available from manufacturer. Only service adjustment procedures are provided by manufacturer.

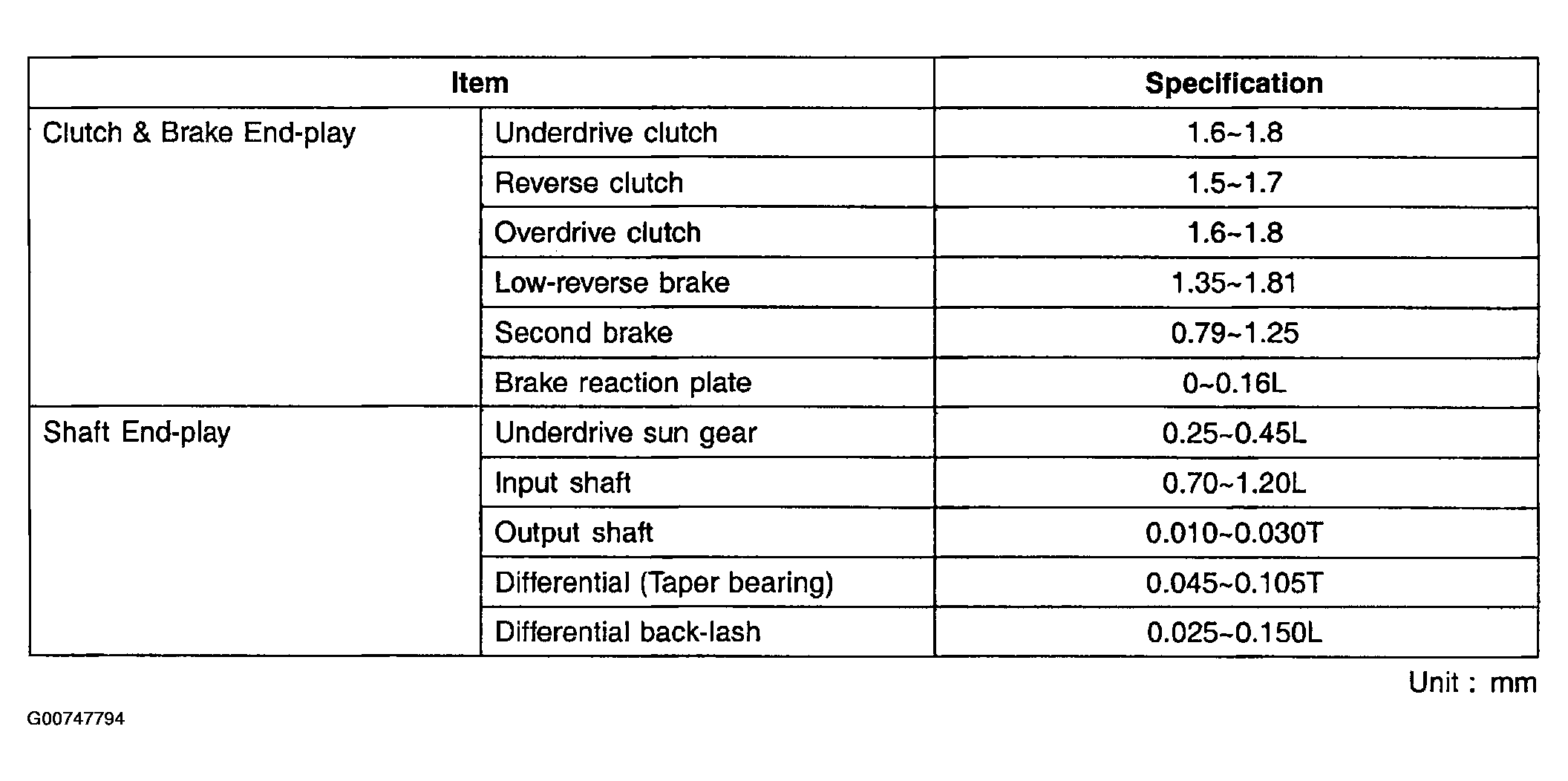

Fig 1: Automatic Transaxle End Play Specification Table
G00747794Courtesy of HYUNDAI MOTOR CO.
