Low-Reverse Brake End Play Adjustment

Reverse the transmission and install the dial gauge. Move the special tool up and down to measure the end play.

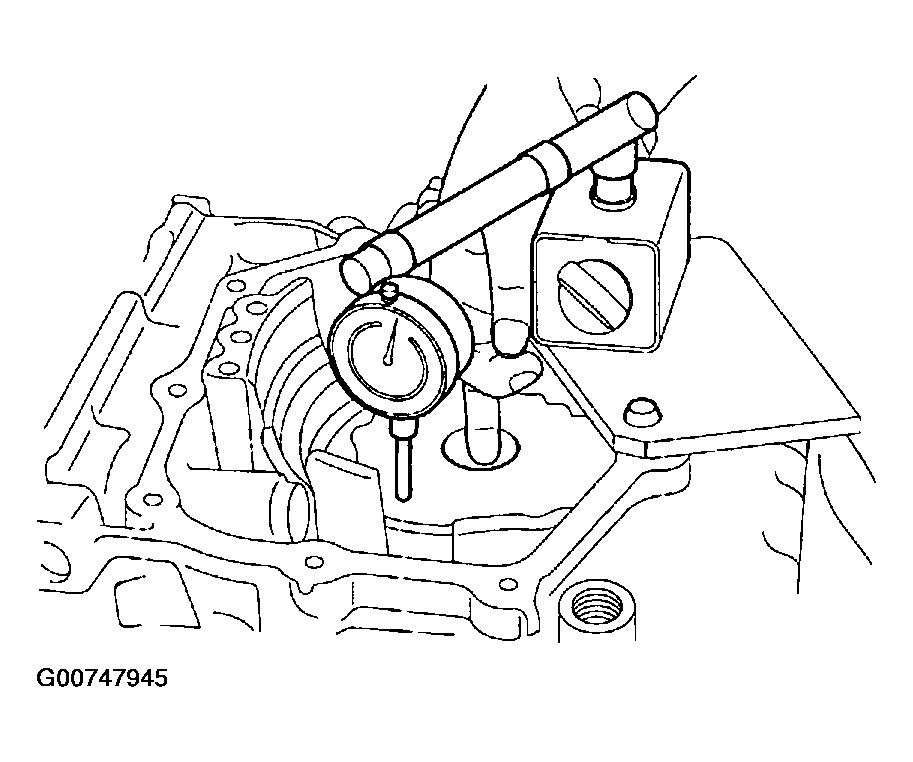

Fig 1: Measuring Low-Reverse Brake End Play

Courtesy of HYUNDAI MOTOR CO.

Standard value : 1.35~1.81mm

Reference Select a pressure plate whose thickness is within the following value. [A (moving amount) + thickness of the special tool - 1.81] to [A (moving amount) + thickness of the special tool - 1.35].

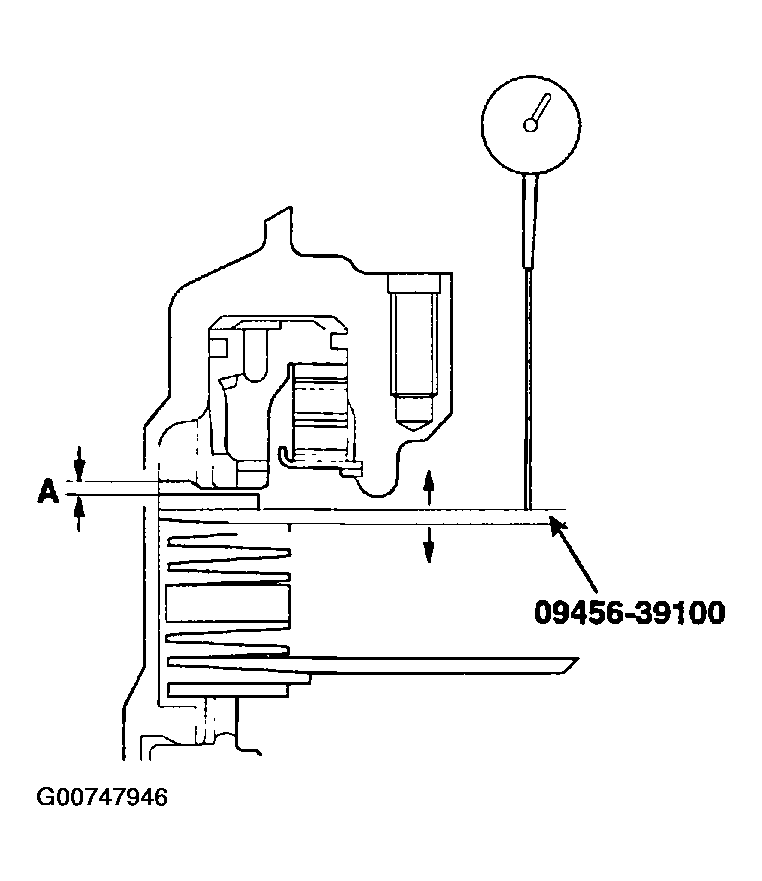

Fig 2: Determining Low-Reverse Brake End Play Shim Thickness

Courtesy of HYUNDAI MOTOR CO.
