Front Stabilizer Bar: Components

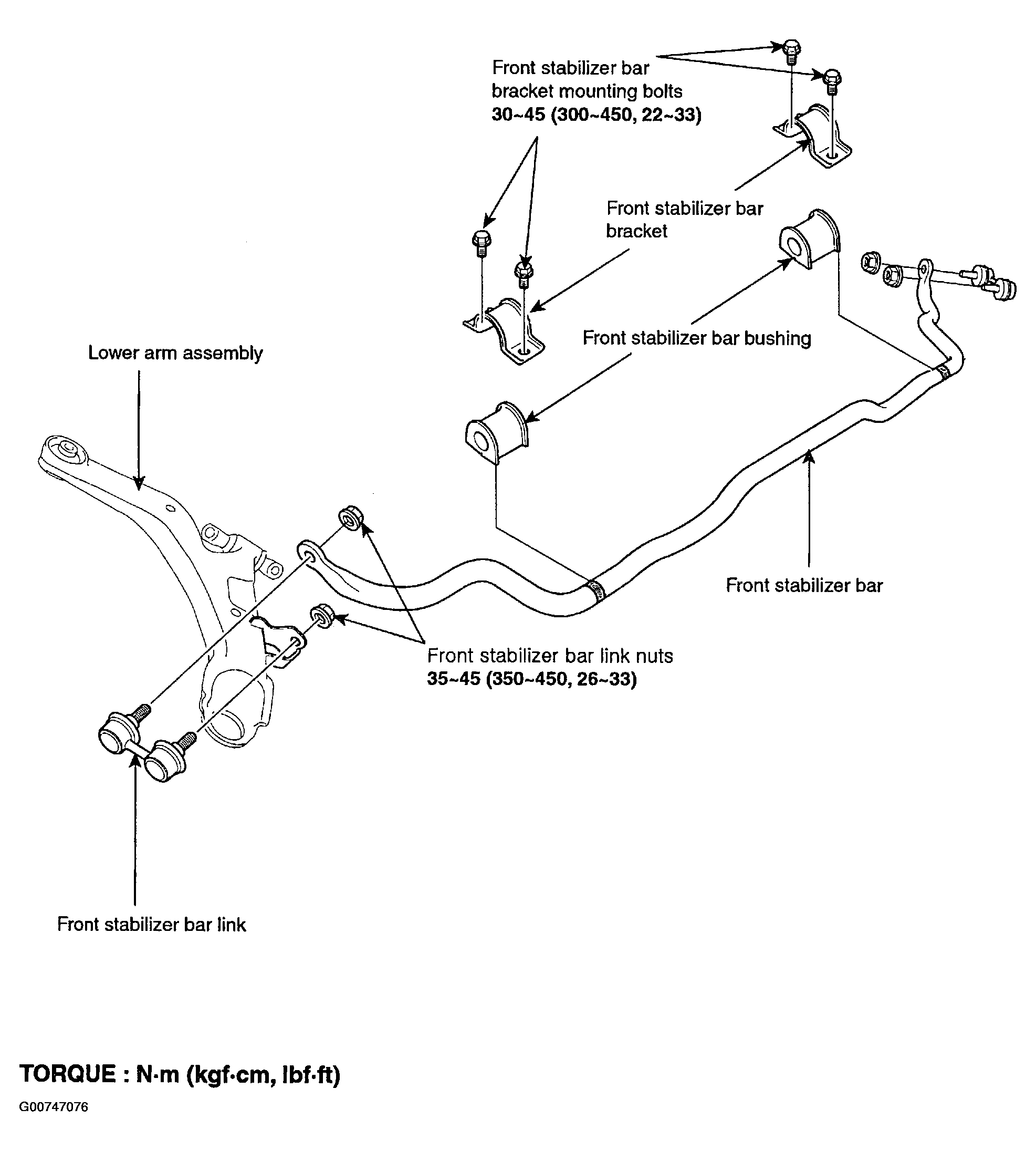

Fig 1: Identifying Front Stabilizer Bar Components

G00747076

Courtesy of HYUNDAI MOTOR CO.
