DTC PO454: EVAP Emission Control System Pressure Sensor Intermittent
>>
DTC Detecting Condition
DTC PO454: EVAP Emission Control System Pressure Sensor Intermittent: DTC Detecting Condition

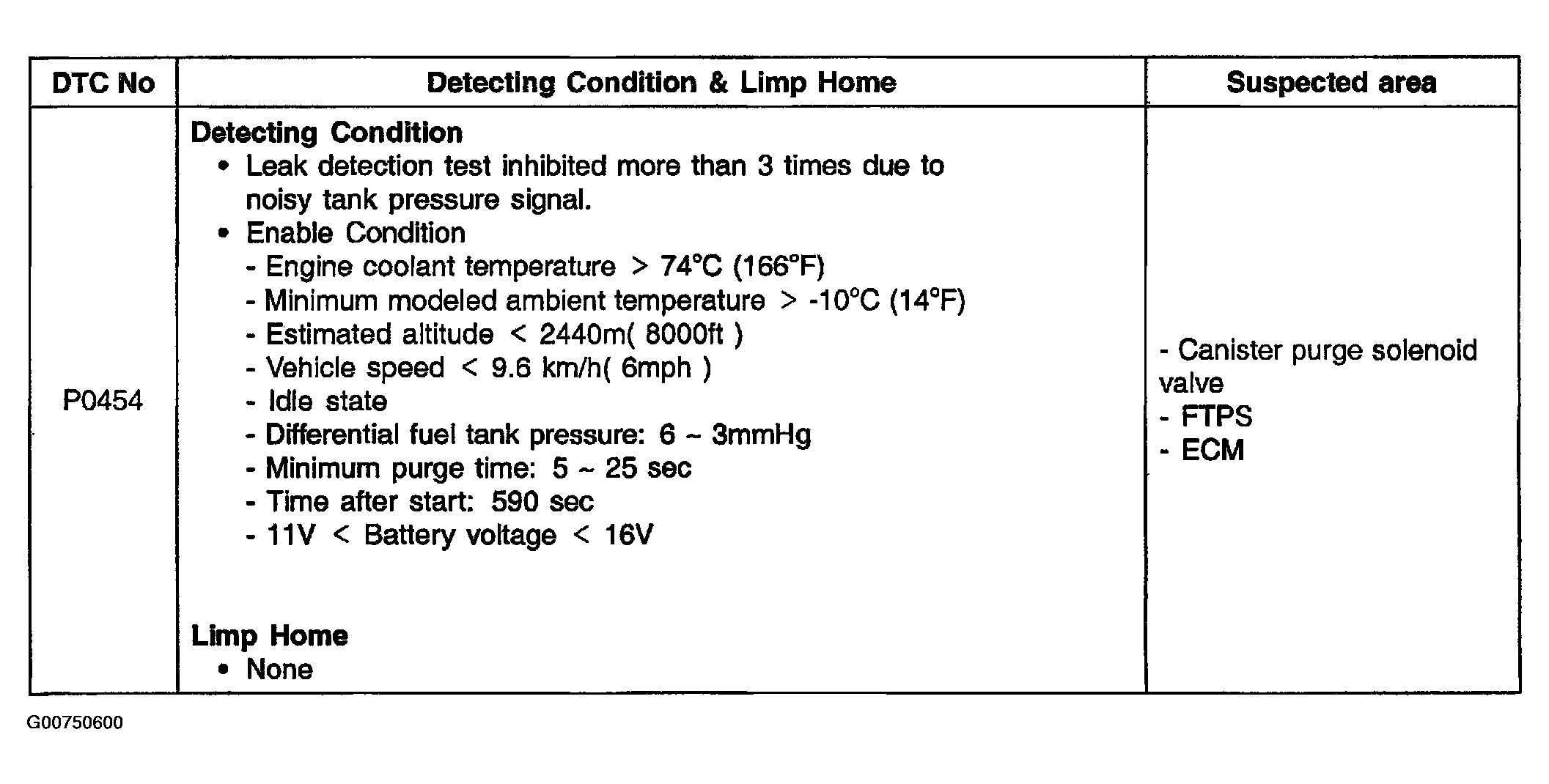

Fig 1: DTC P0454: Detecting Conditions & Probable Causes
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
