DTC P0113: Intake Air Temperature Sensor (IATS) Circuit High Input: DTC Detecting Condition

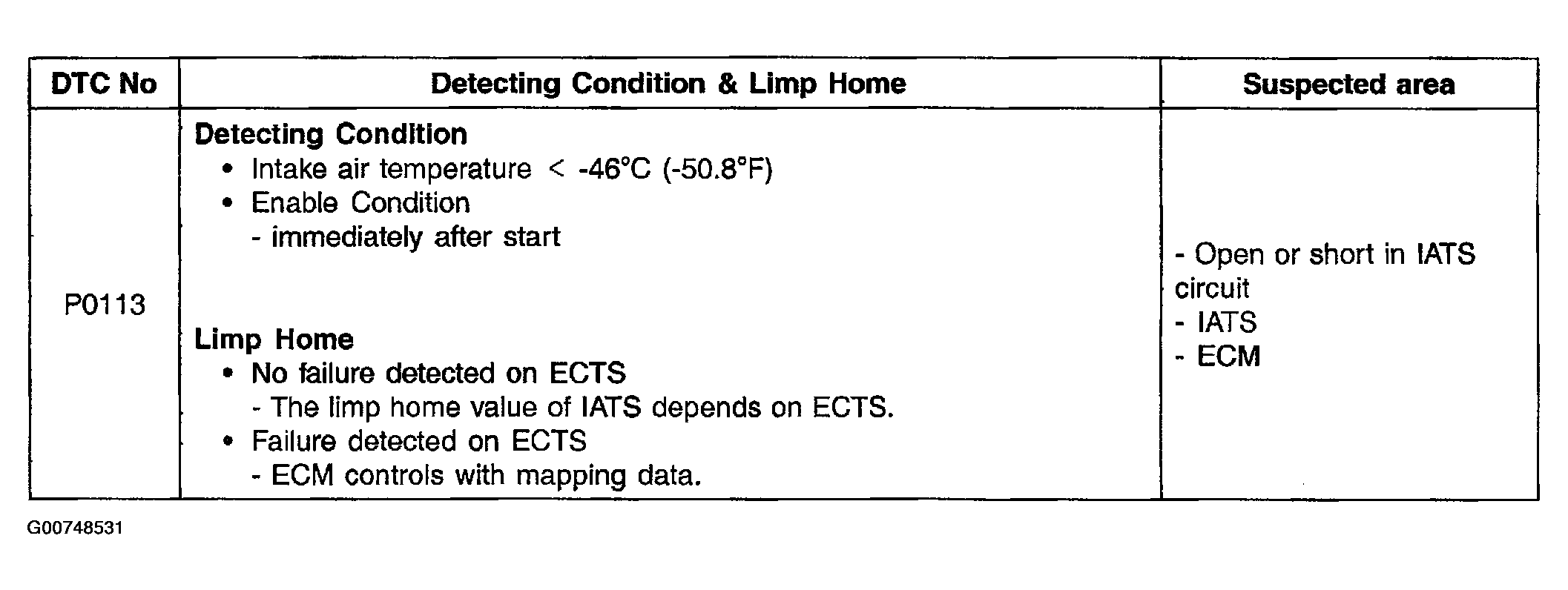

Fig 1: DTC P0113: Detecting Conditions & Probable Causes

G00748531

Courtesy of HYUNDAI MOTOR CO.
