DTC P0103: Mass Air Flow Circuit High Input: DTC Detecting Condition

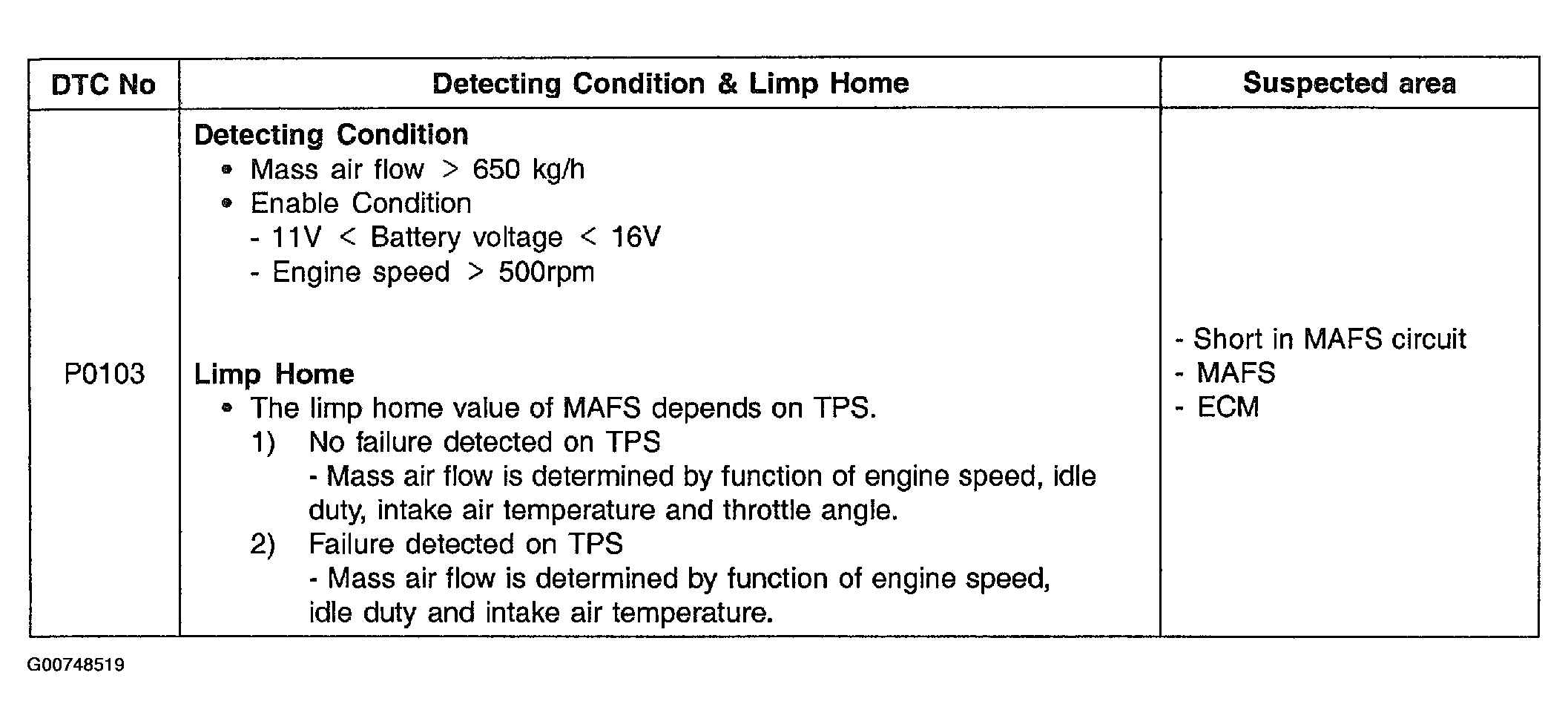

Fig 1: DTC P0103: Detecting Conditions & Probable Causes

G00748519

Courtesy of HYUNDAI MOTOR CO.
