ETACS Module Connector End Views & Location

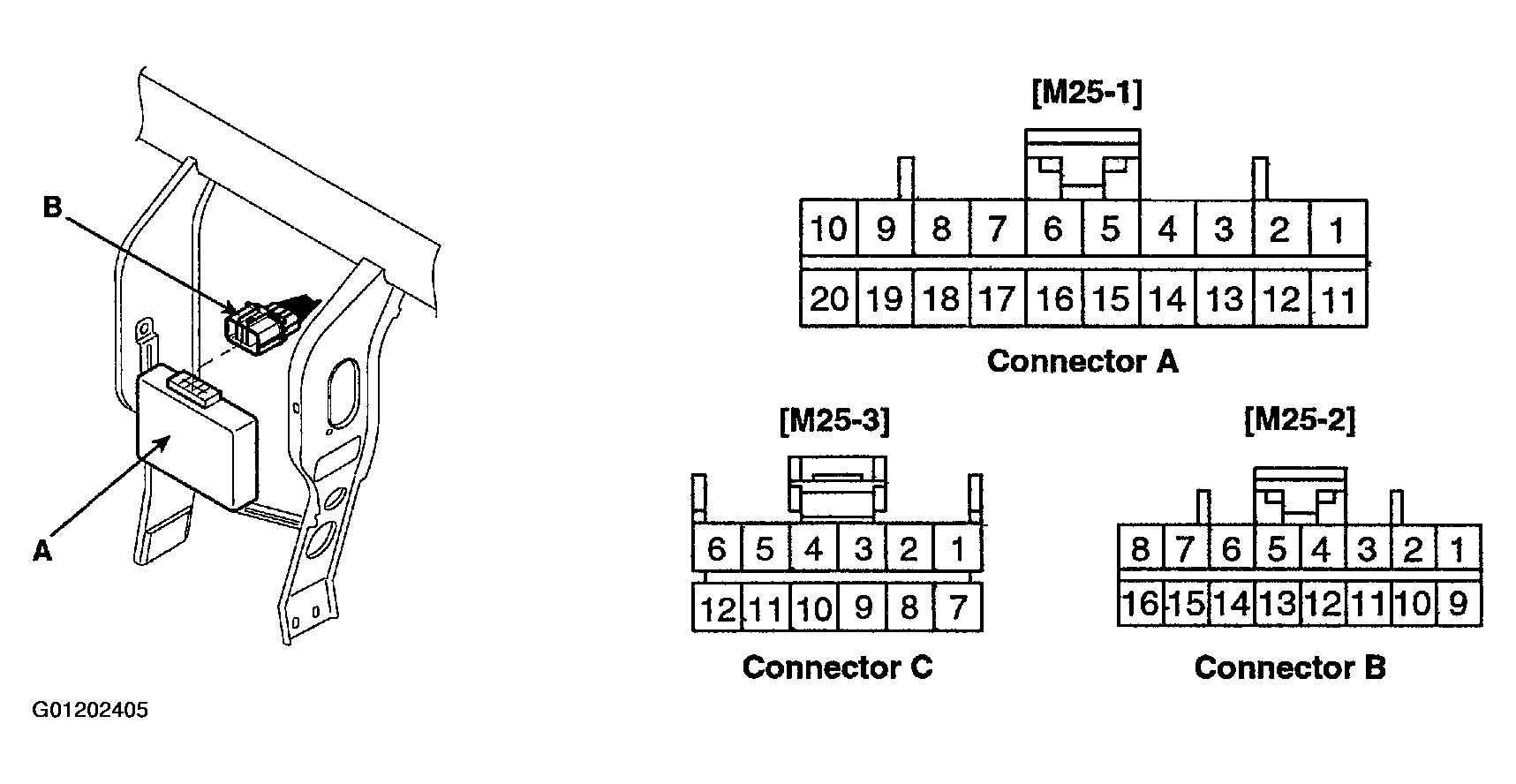

Fig 1: ETACS Module Connector End Views & Location

G01202405

Courtesy of HYUNDAI MOTOR AMERICA
