Home >> Hyundai >> 2004 >> Elantra GLS, Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> DRL Control Module Harness Side Connector End View & Location

DRL Control Module Harness Side Connector End View & Location

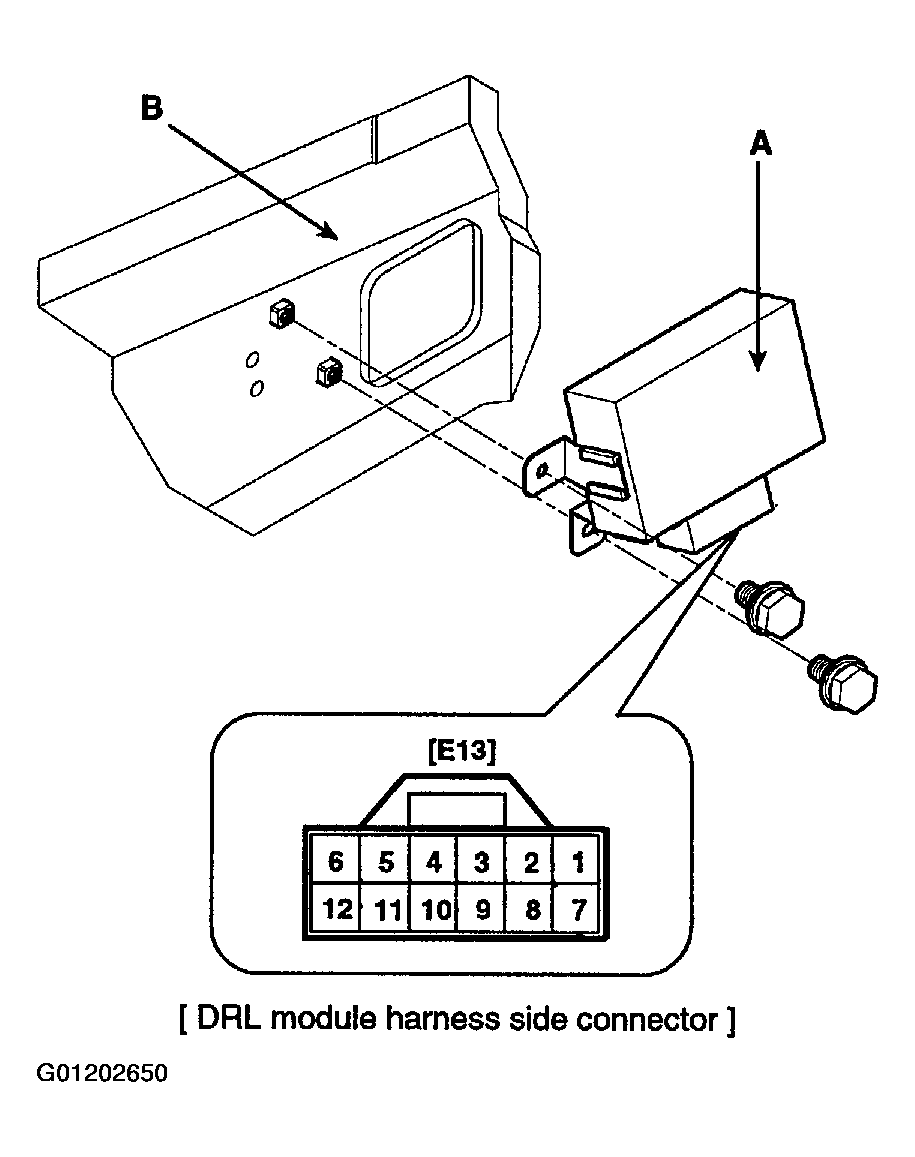

Fig 1: DRL Control Module Harness Side Connector End View & Location

G01202650

Courtesy of HYUNDAI MOTOR AMERICA
