Air Control Module Connector End View & Location

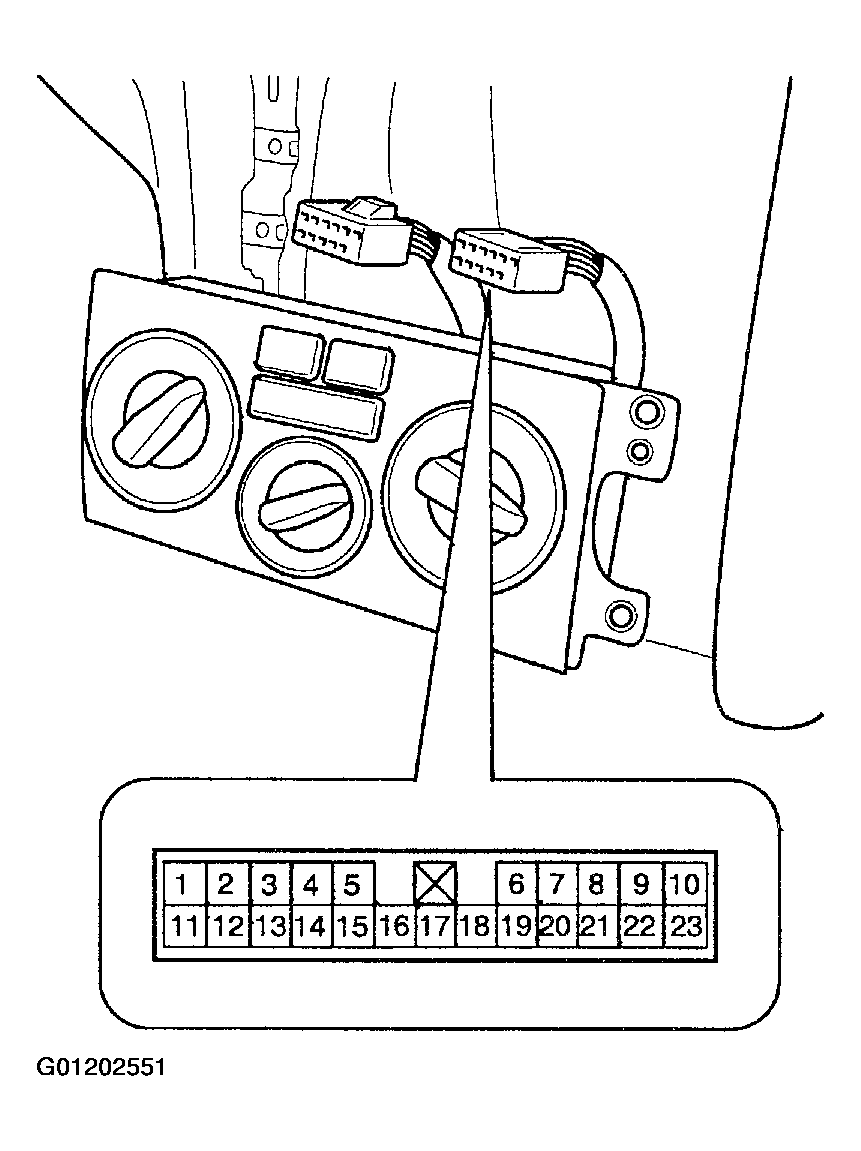

Fig 1: Air Control Module Connector End View & Location

G01202551

Courtesy of HYUNDAI MOTOR AMERICA
