Notes With Regard To Diagnosis

The phenomena listed in the following table are not abnormal.

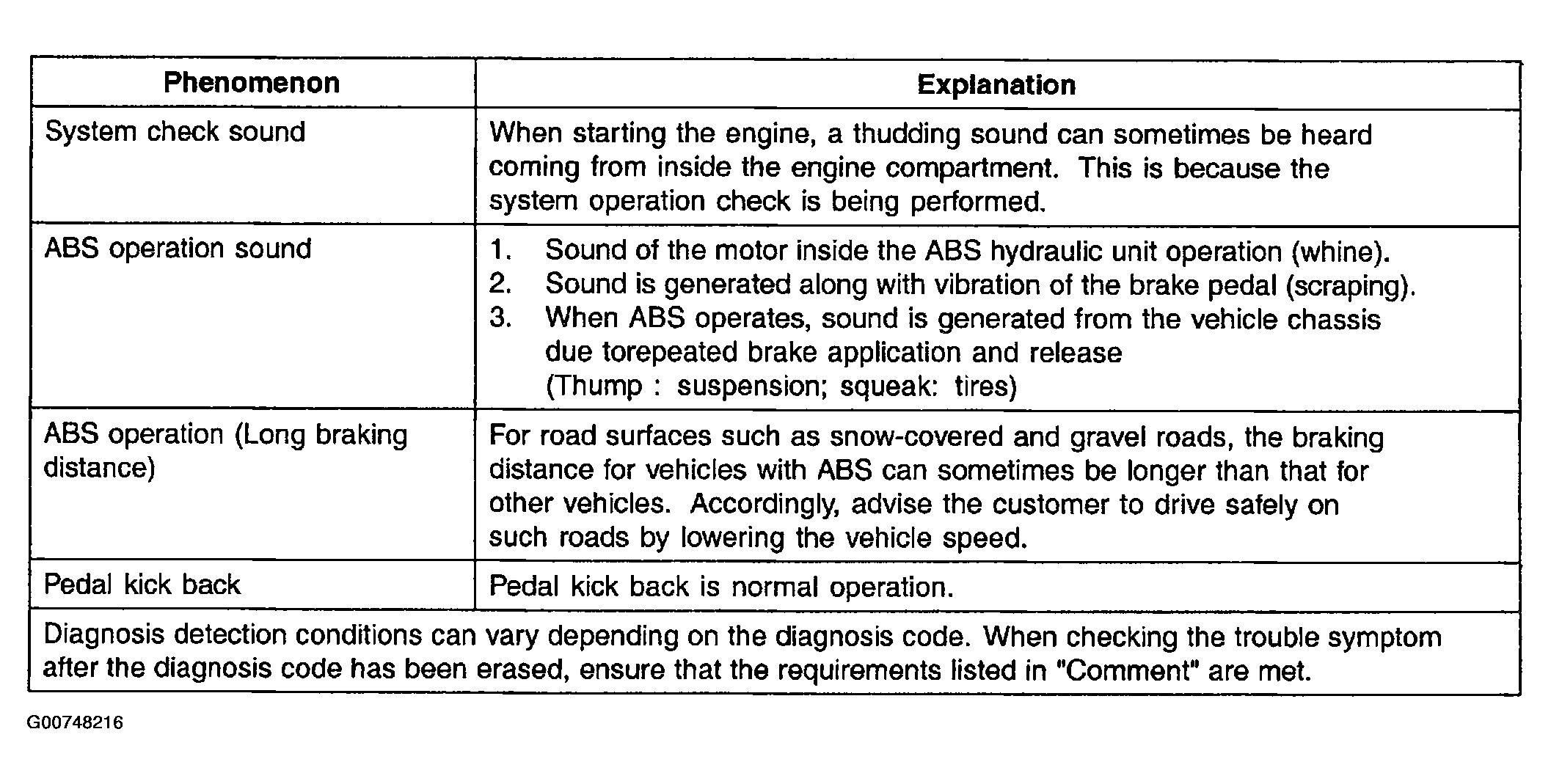

Fig 1: Normal ABS Running Conditions
G00748216Courtesy of HYUNDAI MOTOR CO.
