Home >> Hyundai >> 2004 >> Elantra GLS, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> Troubleshooting >> DTC C1610: CAN Bus Off Failure (Only System With TCS) >> DTC Detecting Condition

DTC C1610: CAN Bus Off Failure (Only System With TCS): DTC Detecting Condition

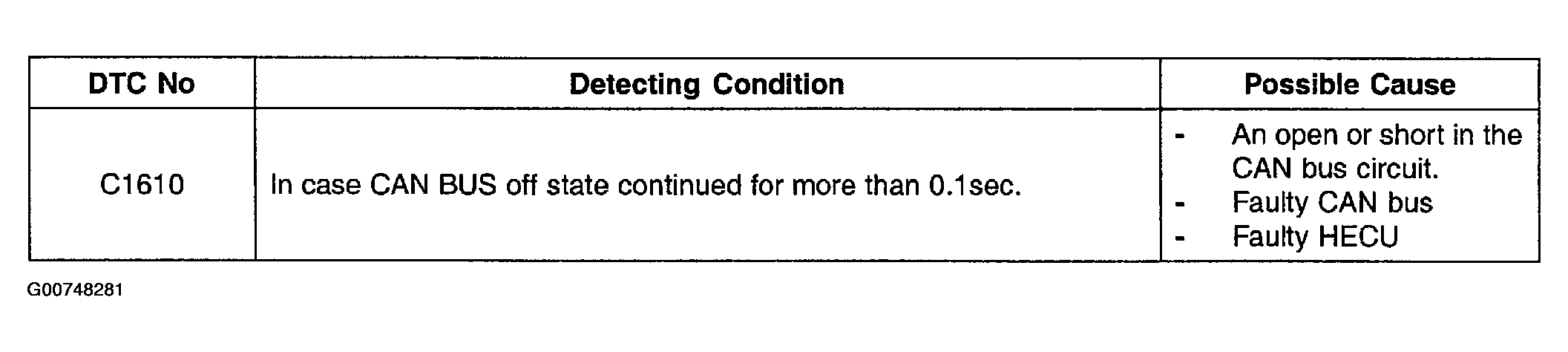

Fig 1: DTC Detecting Condition

G00748281

Courtesy of HYUNDAI MOTOR CO.
