Diagnostic Trouble Code Chart: Notes

Inspect according to the inspection chart that is appropriate for the malfunction code.

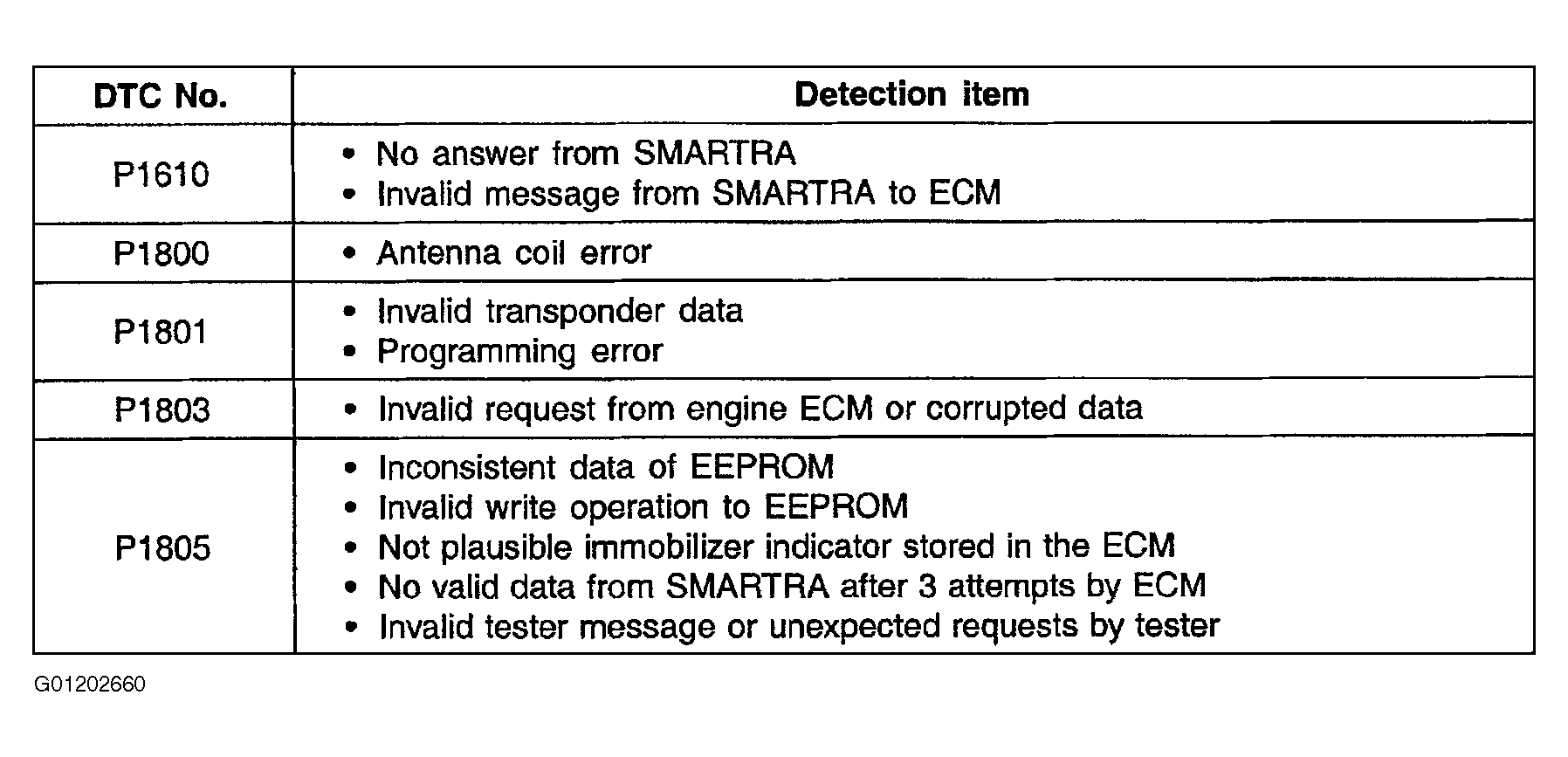

Fig 1: Trouble Code & Detection Item Chart

G01202660

Courtesy of HYUNDAI MOTOR CO.
