Home >> Hyundai >> 2004 >> Accent GT, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle System >> Troubleshooting (A/T) >> Notes

Troubleshooting (A/T): Notes

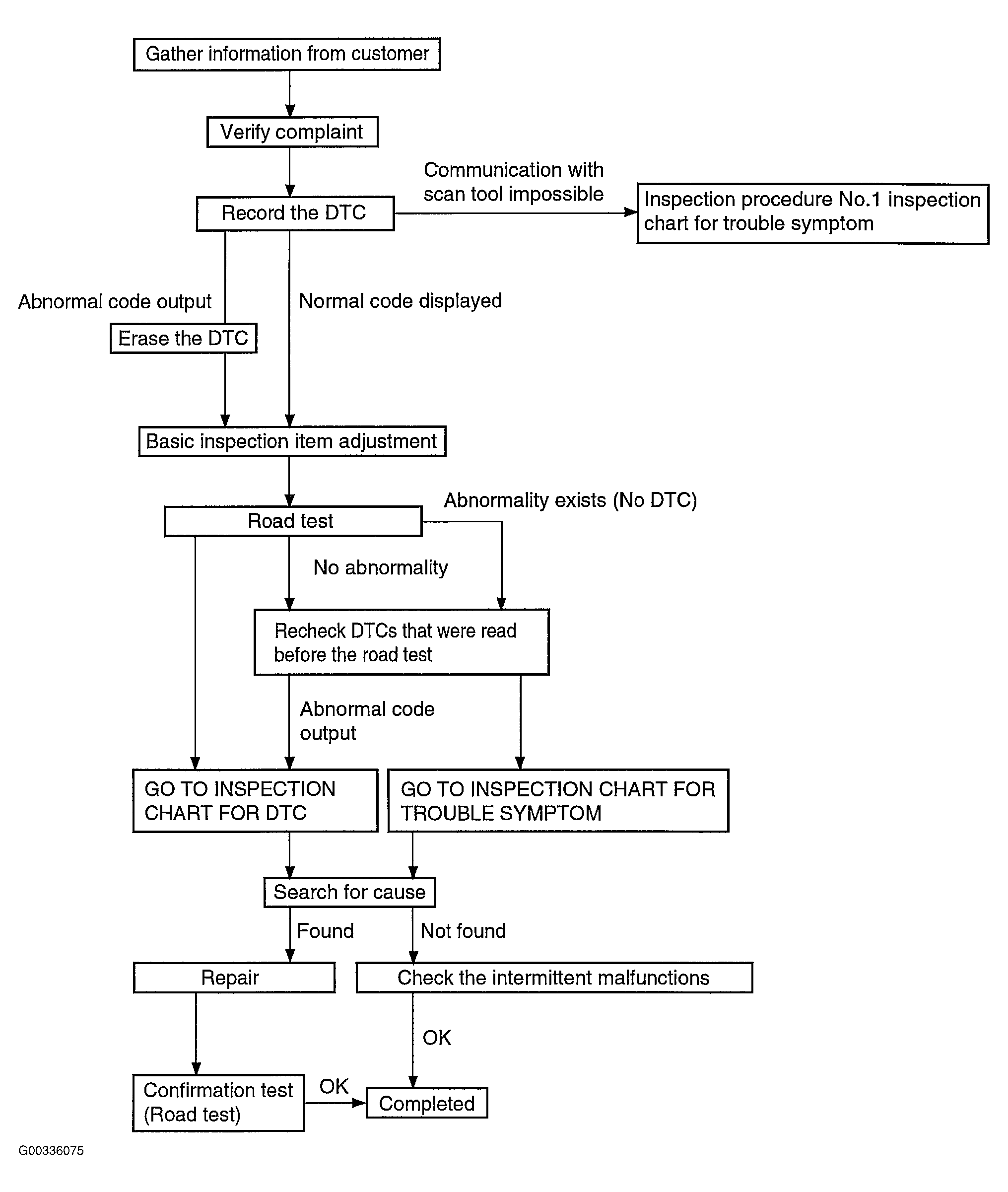

Fig 1: Troubleshooting Flow Chart

G00336075

Courtesy of HYUNDAI MOTOR CO.
