Shift Lever Assembly

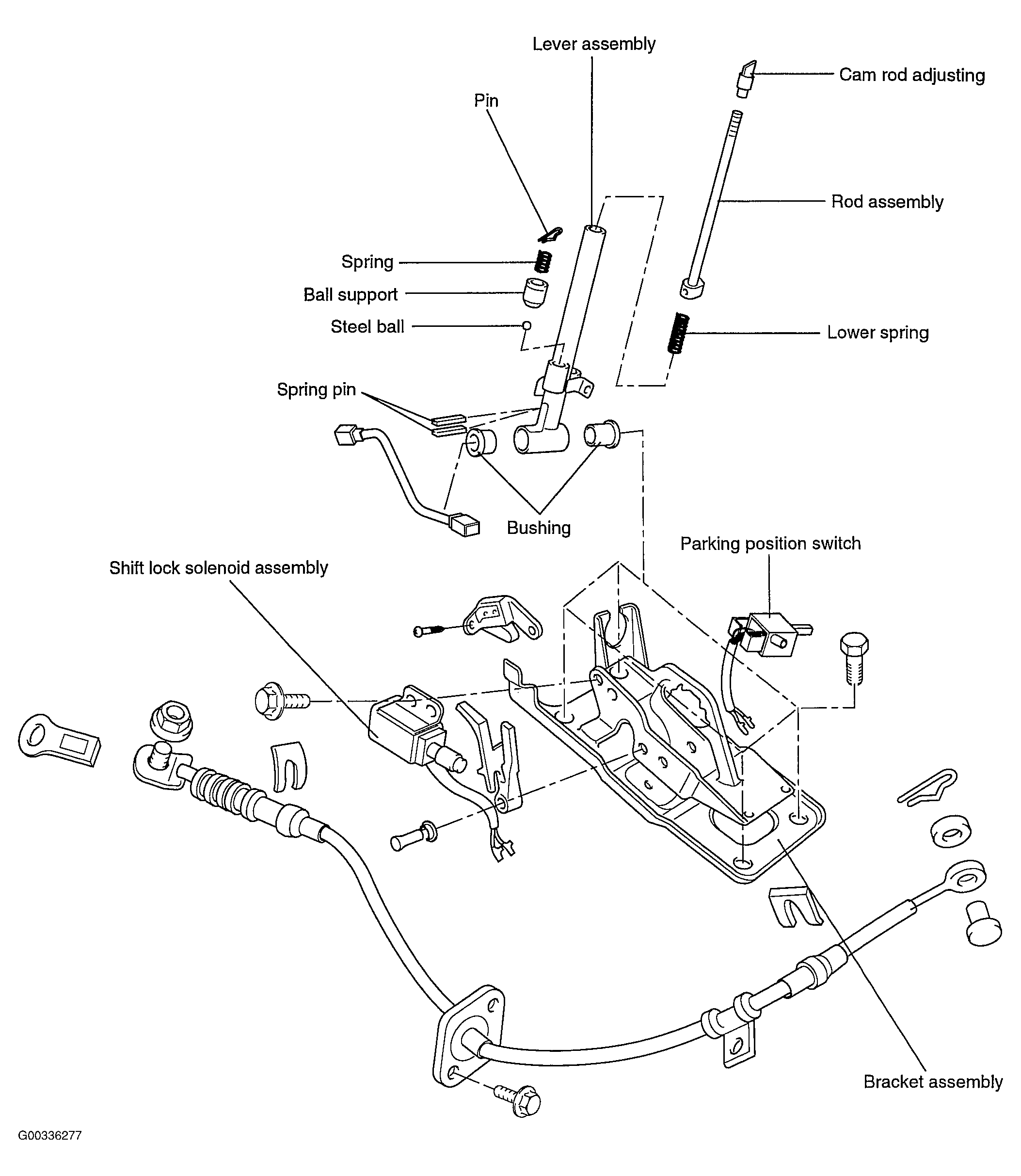

Fig 1: Identifying Shift Lever Assembly

G00336277

Courtesy of HYUNDAI MOTOR CO.
