Automatic Transaxle System
>>
Inspection Of Electronic Control System Components
>>
Standard Oil Pressure Table
Standard Oil Pressure Table

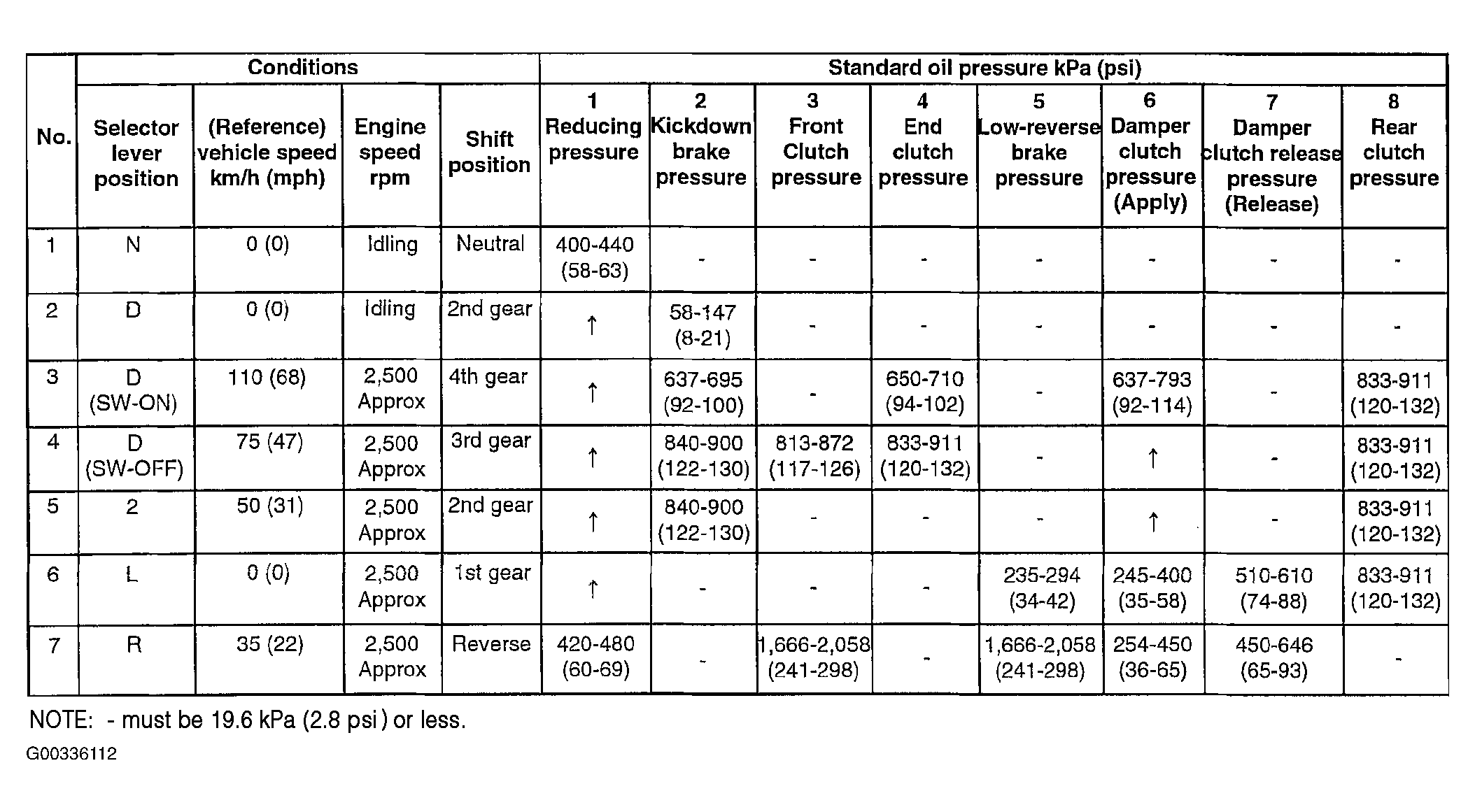

Fig 1: Standard Oil Pressure Table
Courtesy of HYUNDAI MOTOR CO.
NOTE:
must be 19.6 kPa (2.8 psi) or less.
Courtesy of HYUNDAI MOTOR CO.
