Preliminary Steps If Oil Pressure Is Not Normal

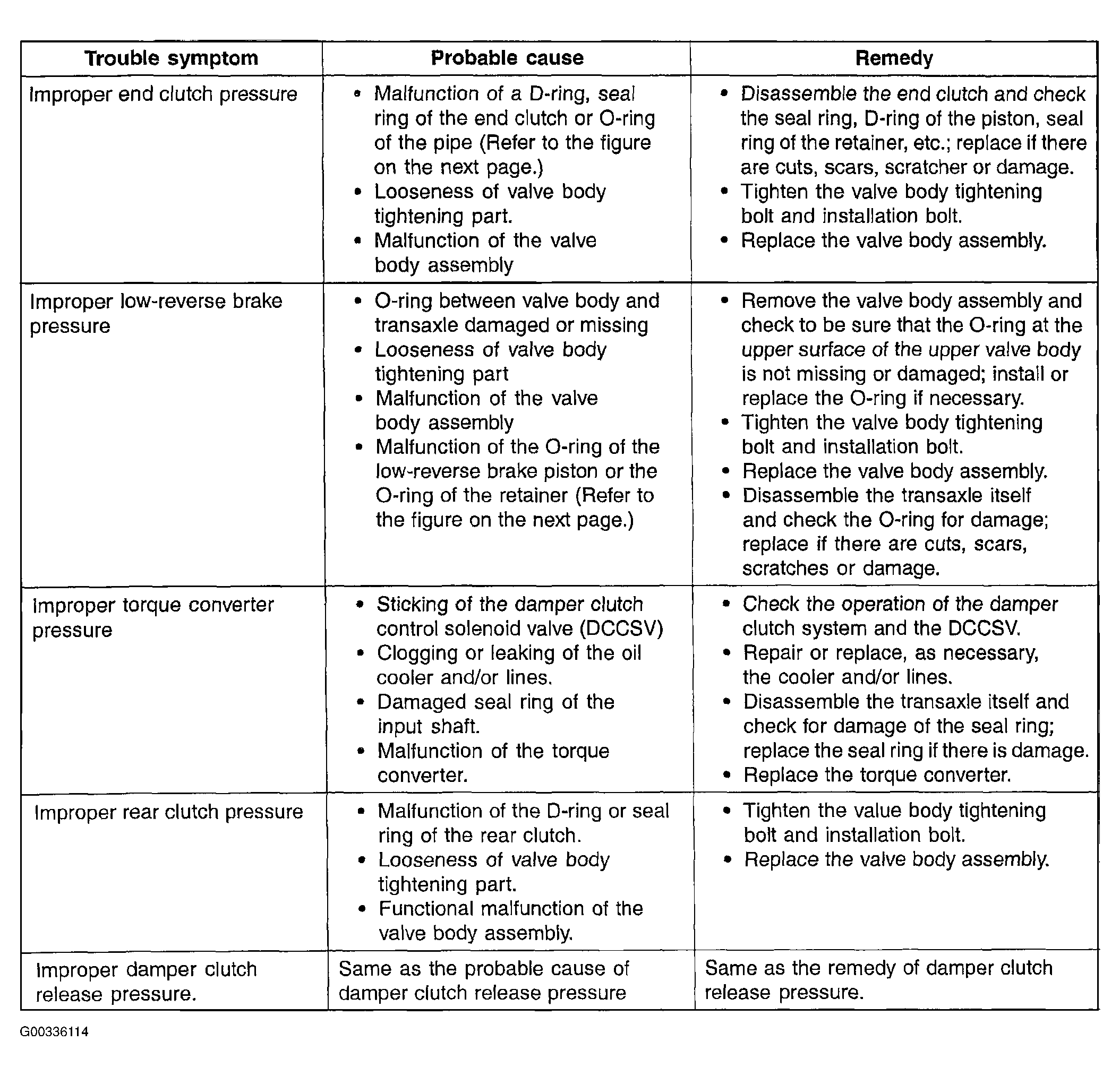

Fig 1: Preliminary Steps If Oil Pressure Is Not Normal (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

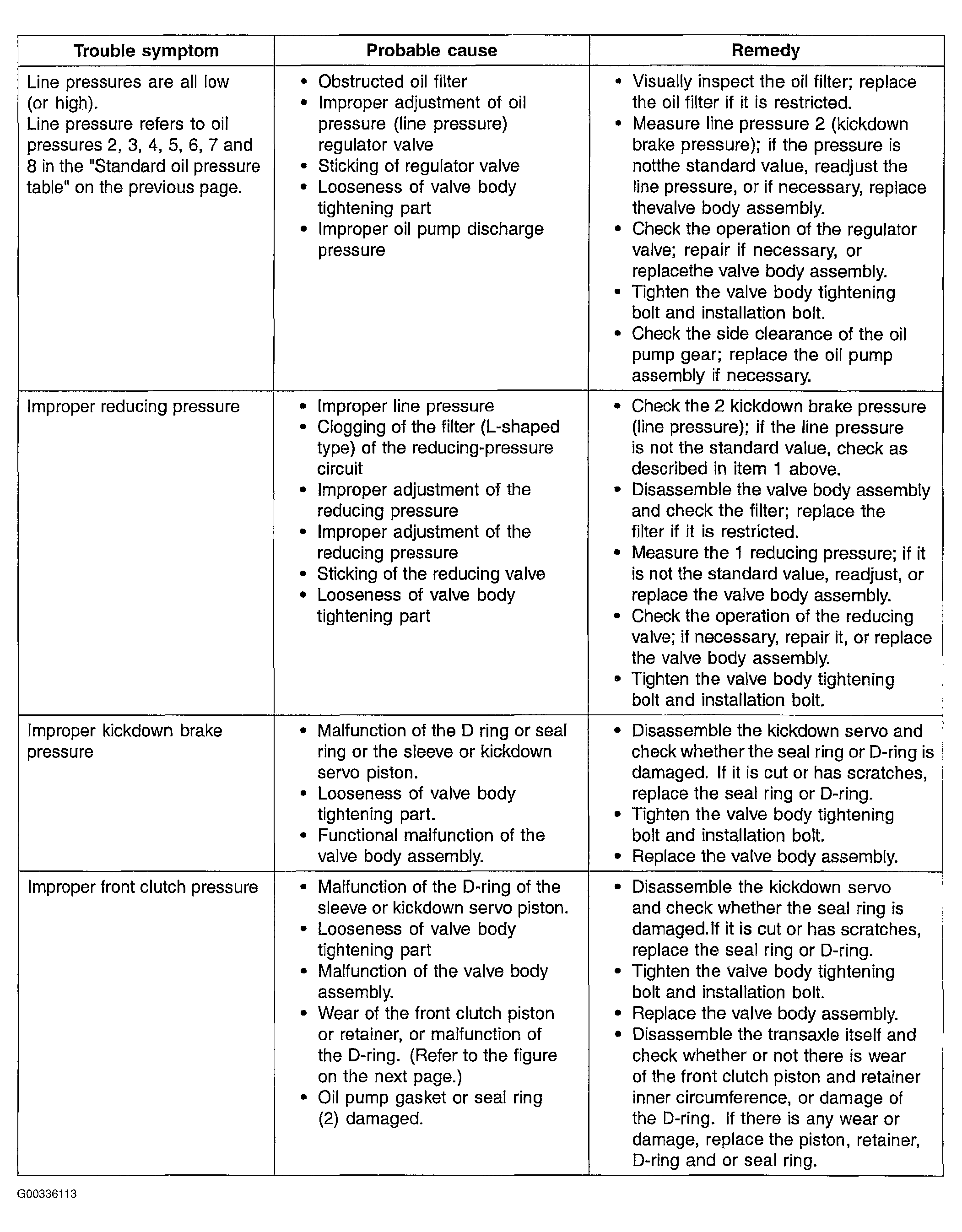

Fig 2: Preliminary Steps If Oil Pressure Is Not Normal (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.
