Pressure Control Valve A, B

Pressure control valve A, B regulate the pressure supplied to each clutch under the control of the pressure control solenoid valve A, B to eliminate shock at the time of shifting.

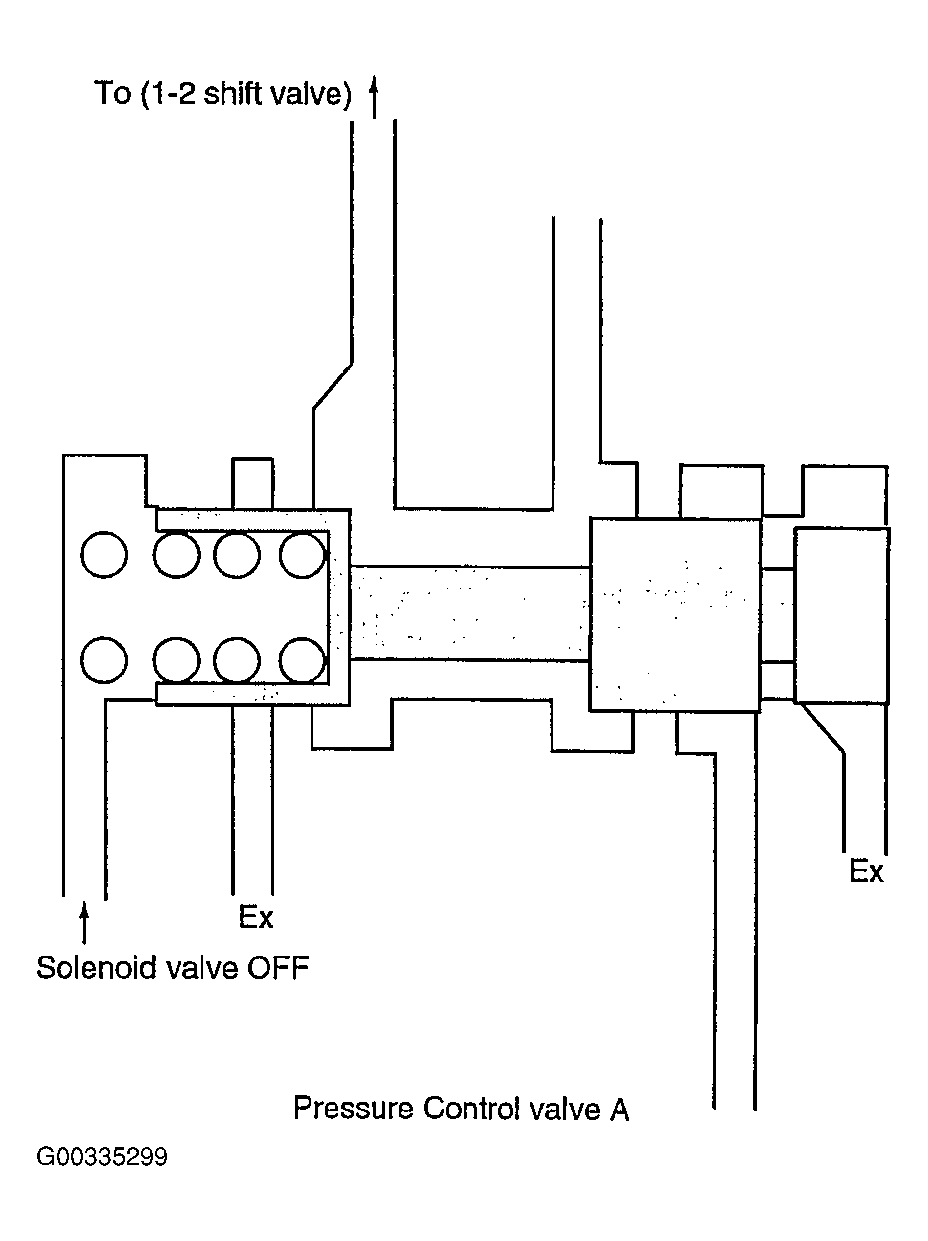

(1) pressure control valve A - Not operated

Fig 1: Pressure Control Valve A Not Operated

Courtesy of HYUNDAI MOTOR CO.

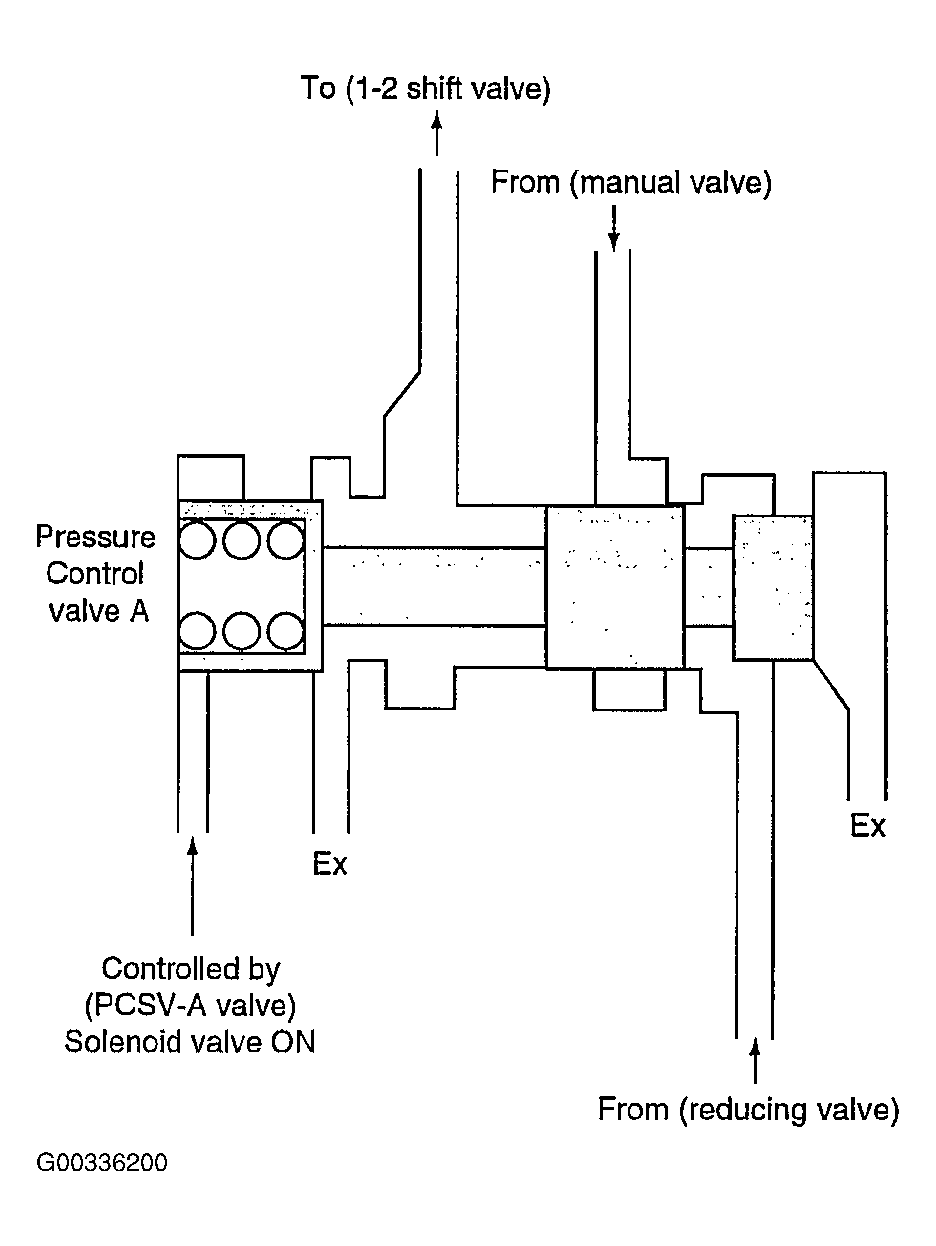

(1) Pressure control valve A - Operation

Fig 1: Pressure Control Valve A Operation

Courtesy of HYUNDAI MOTOR CO.

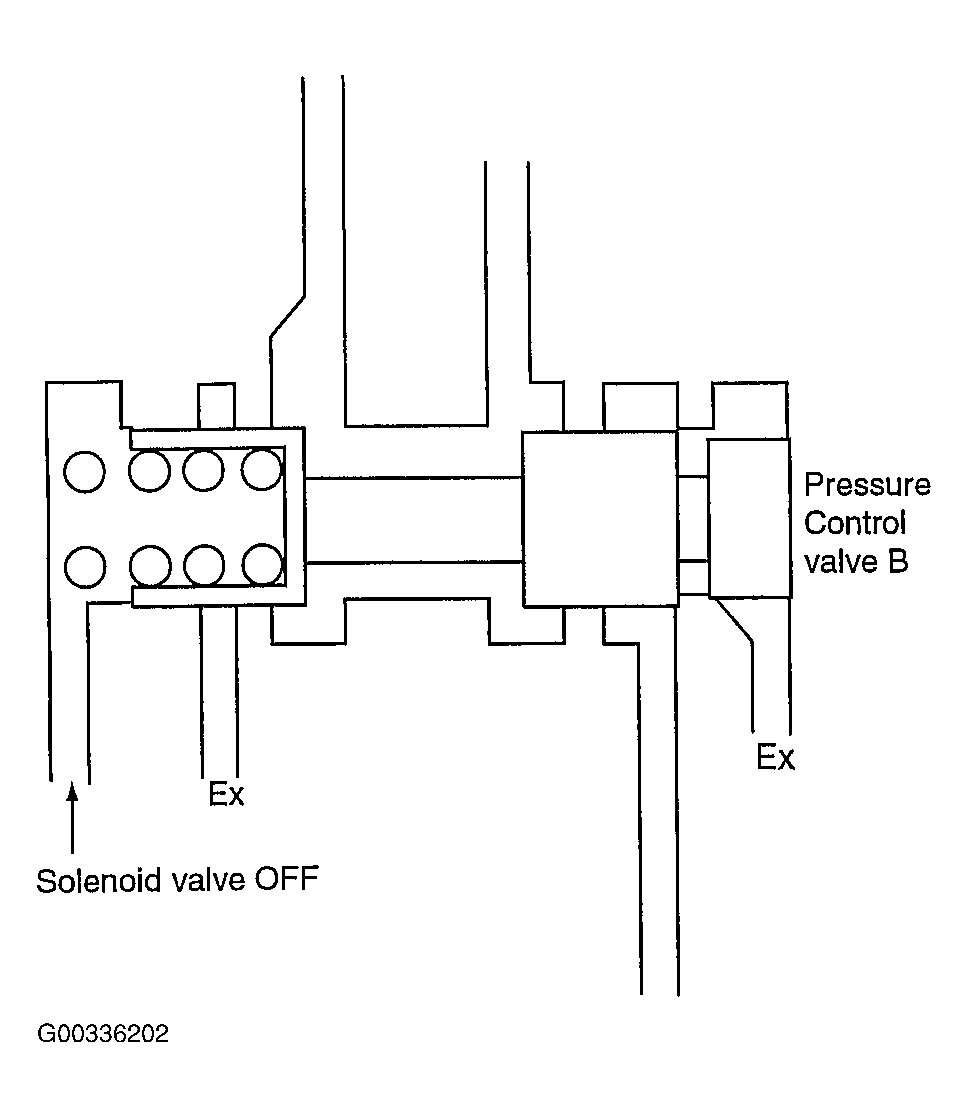

(2) Pressure control valve B - Not Operated

Fig 1: Pressure Control Valve B Not Operated

Courtesy of HYUNDAI MOTOR CO.

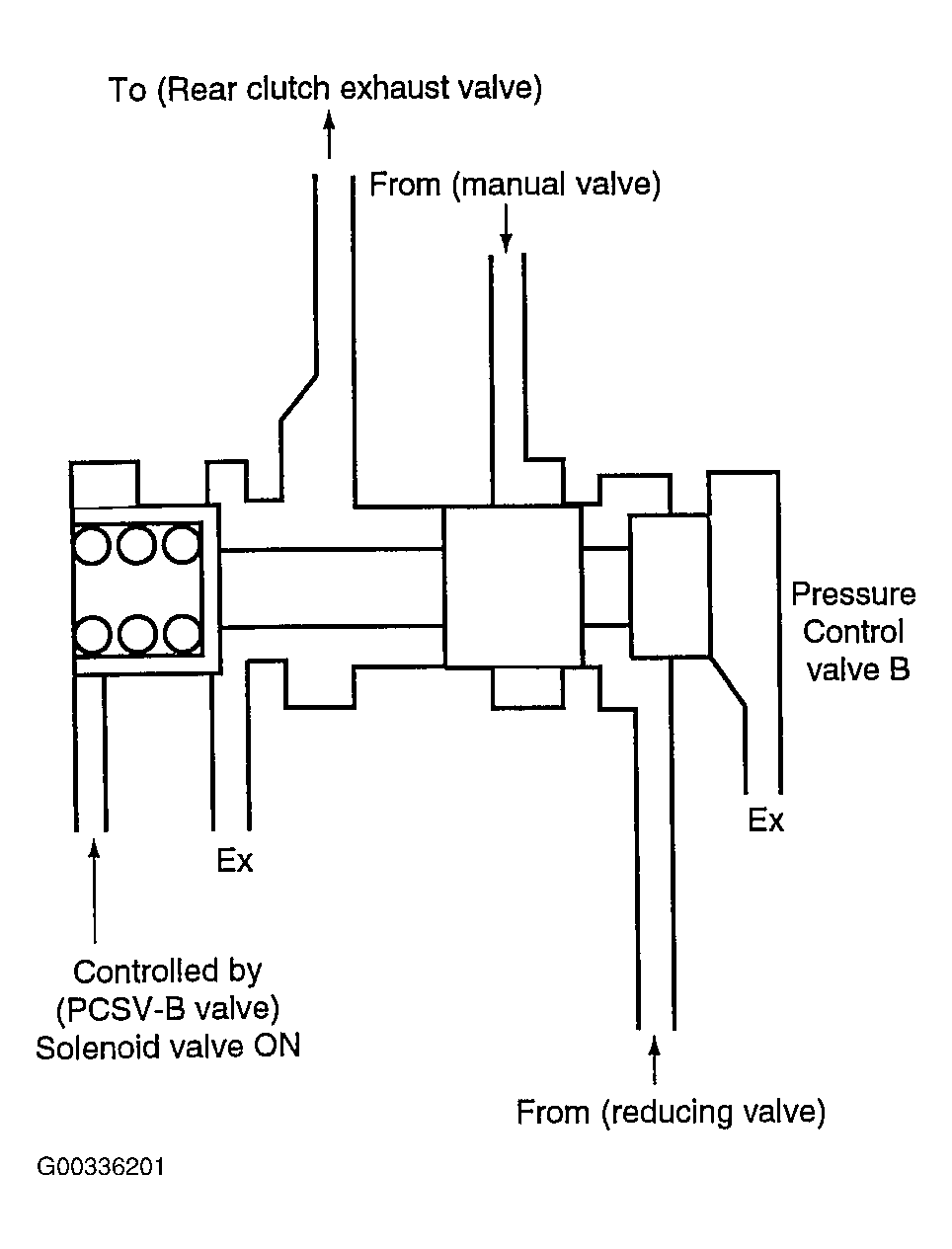

(2) Pressure control valve B - Operation

Fig 1: Pressure Control Valve B Operation

Courtesy of HYUNDAI MOTOR CO.

The main function of this valve controls the rear clutch independently.

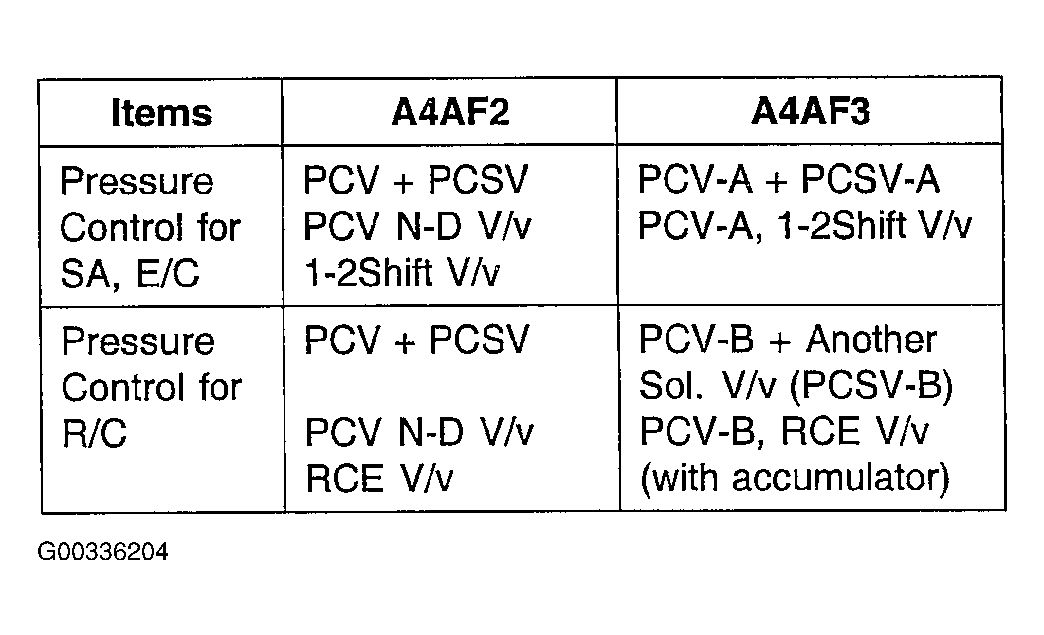

Comparisons with A4AF2

Fig 1: Comparisons With A4AF2 Table

Courtesy of HYUNDAI MOTOR CO.
