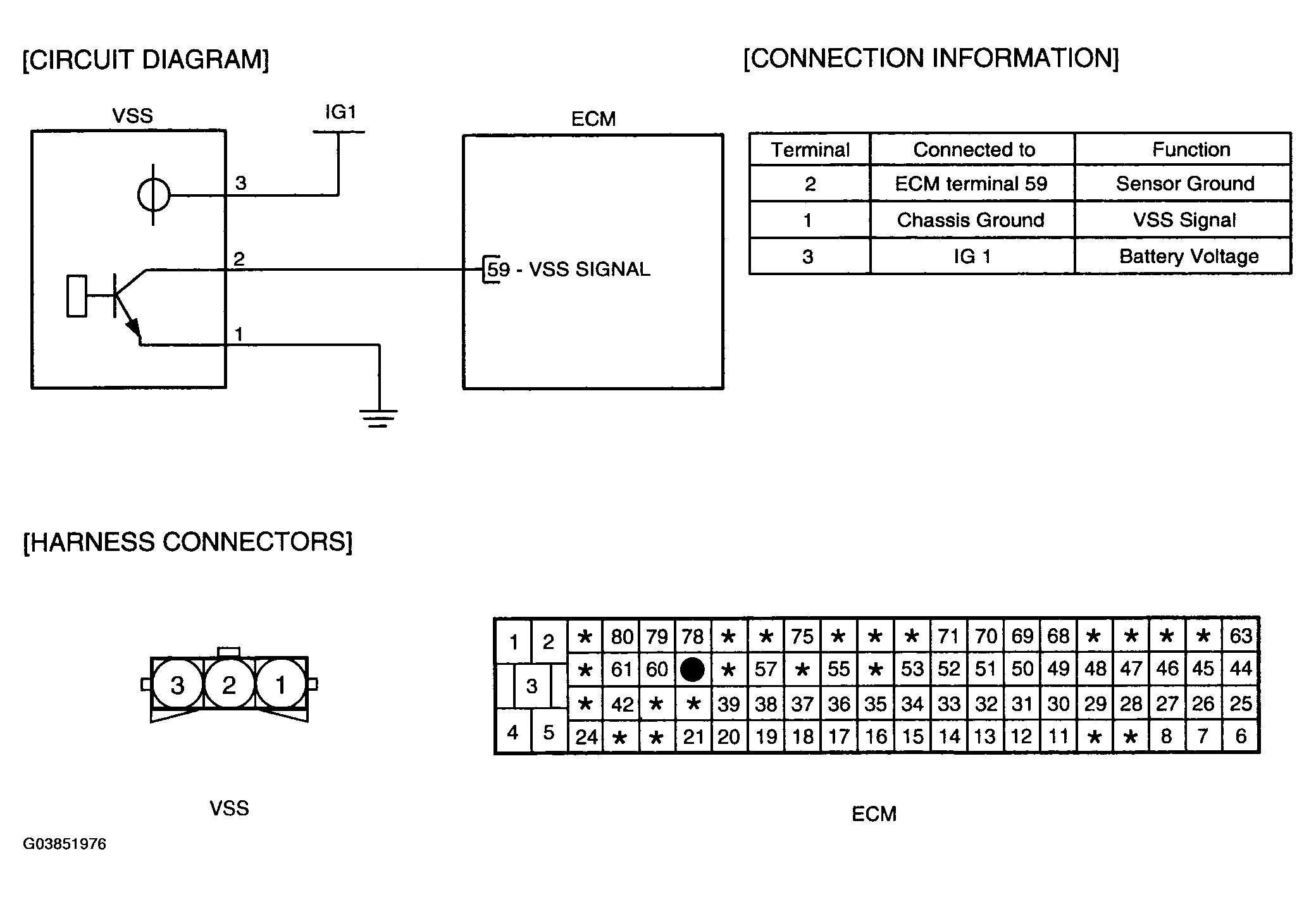

Home >> Hyundai >> 2004 >> Accent GL, 2D Hatchback, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (2 Of 2) >> DTC Troubleshooting Procedures >> DTC P0501: Vehicle Speed Sensor Range/Performance >> Schematic Diagram
