Drive (Second)
Drive (Second)

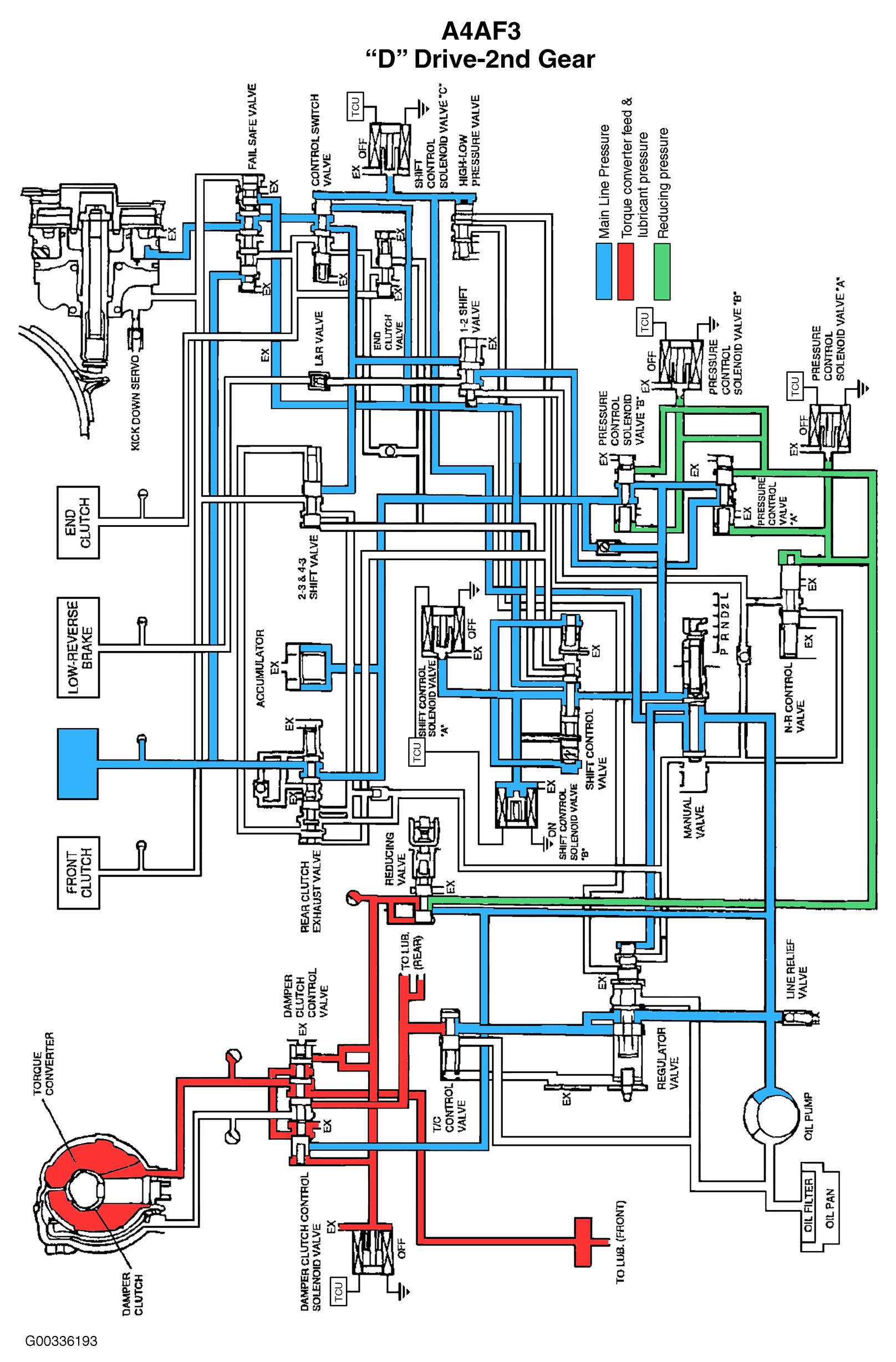

Fig 1: Drive (Second) Hydraulic Circuit
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
