Front Strut Assembly: Components

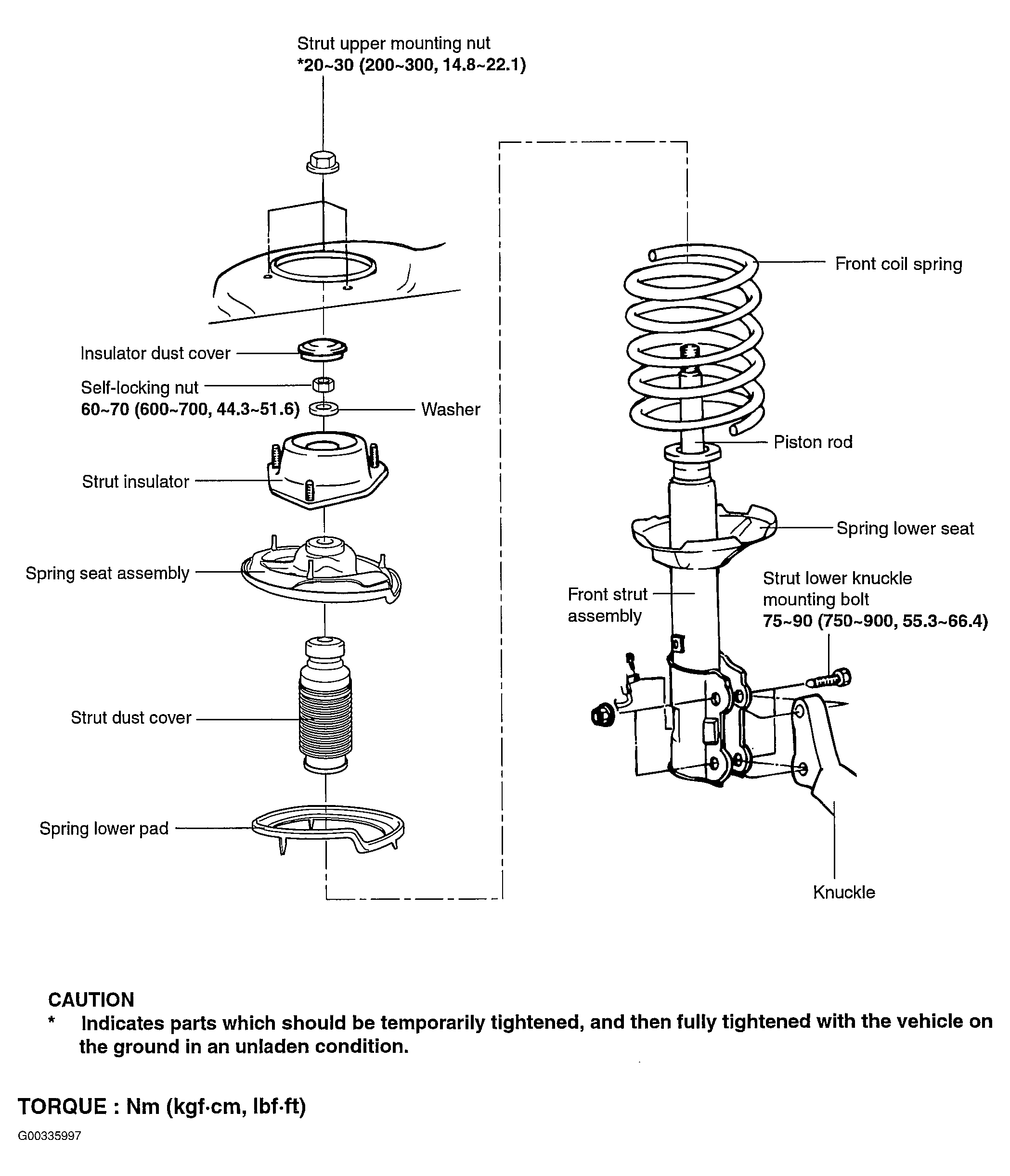

Fig 1: Identifying Strut Assembly Components

G00335997

Courtesy of HYUNDAI MOTOR CO.
