Trouble Shooting

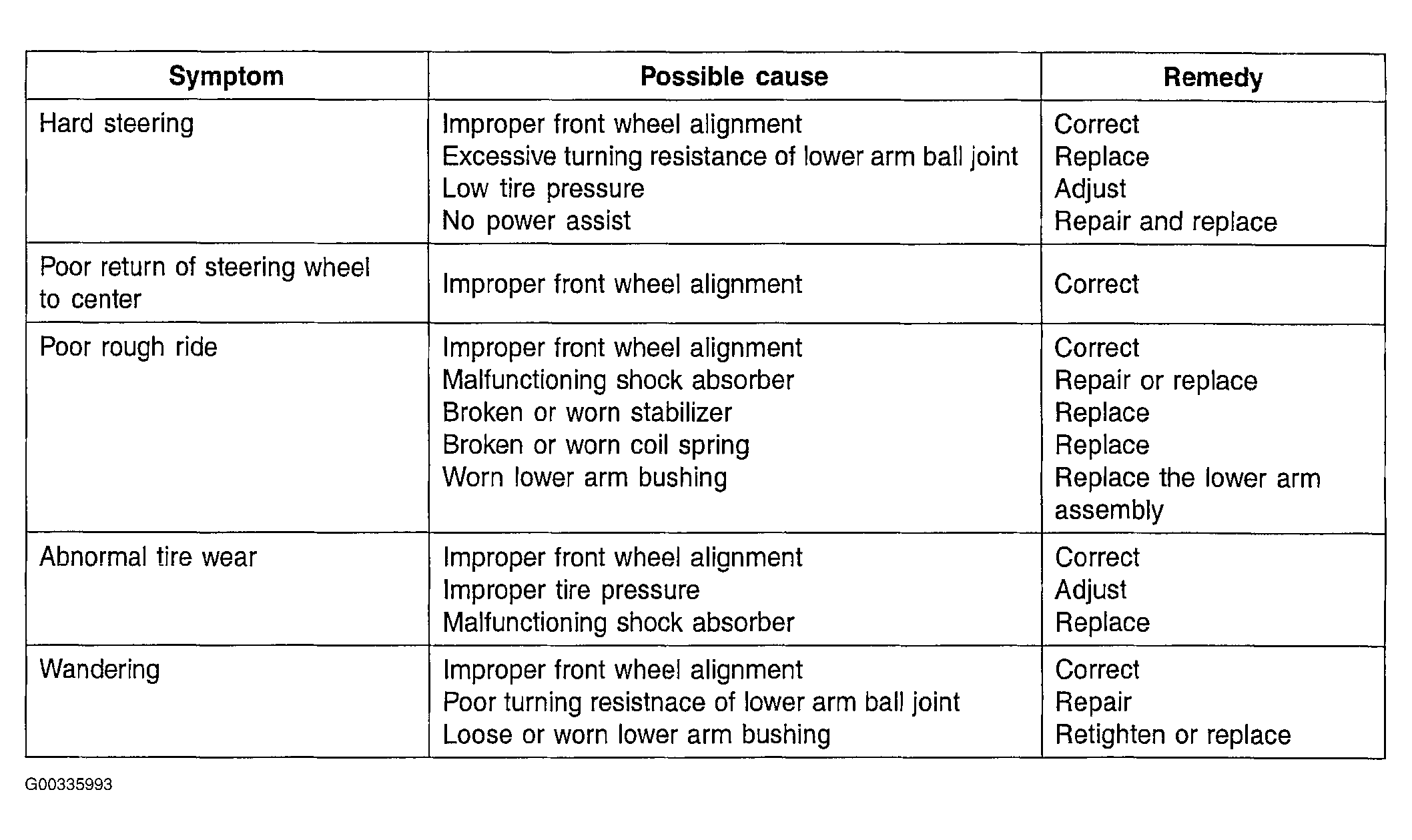

Fig 1: Trouble Shooting (1 Of 4)
G00335993Courtesy of HYUNDAI MOTOR CO.

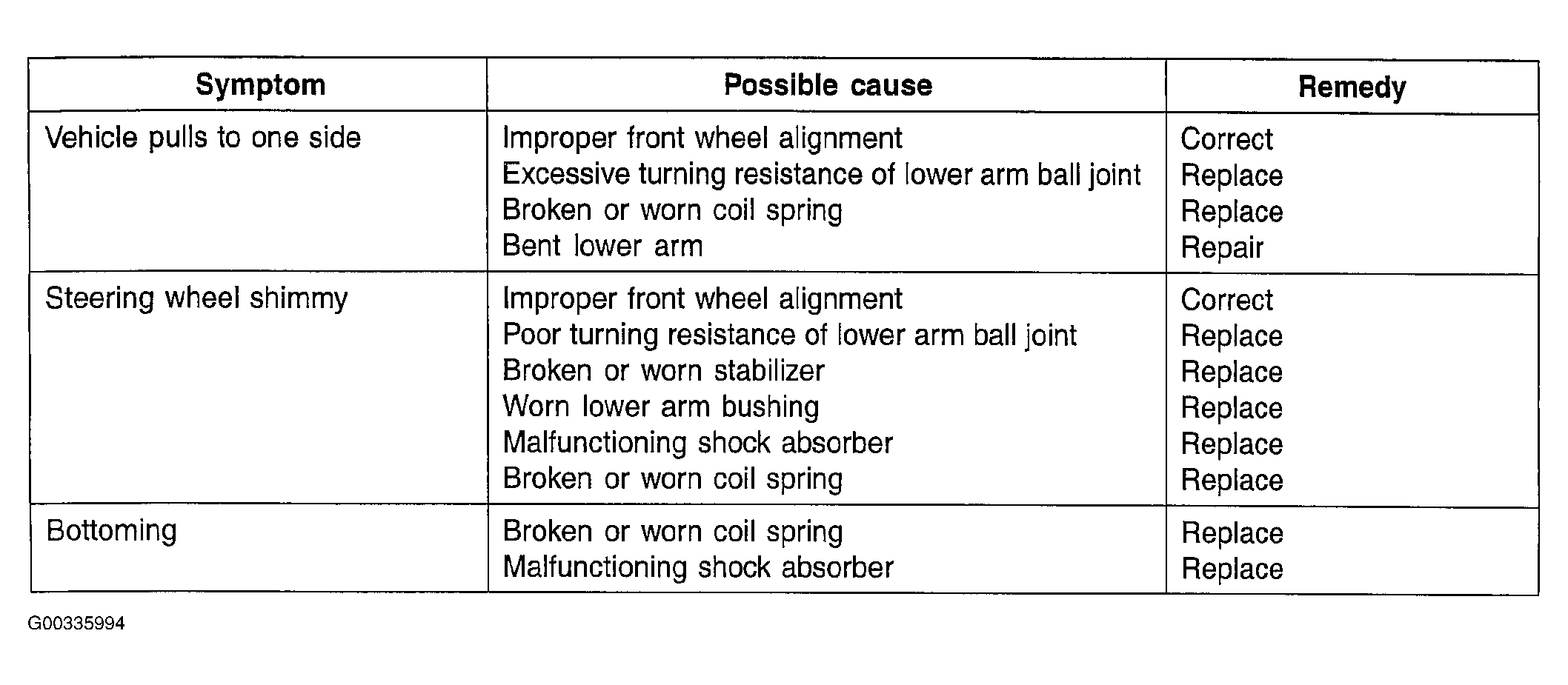

Fig 2: Trouble Shooting (2 Of 4)
G00335994Courtesy of HYUNDAI MOTOR CO.

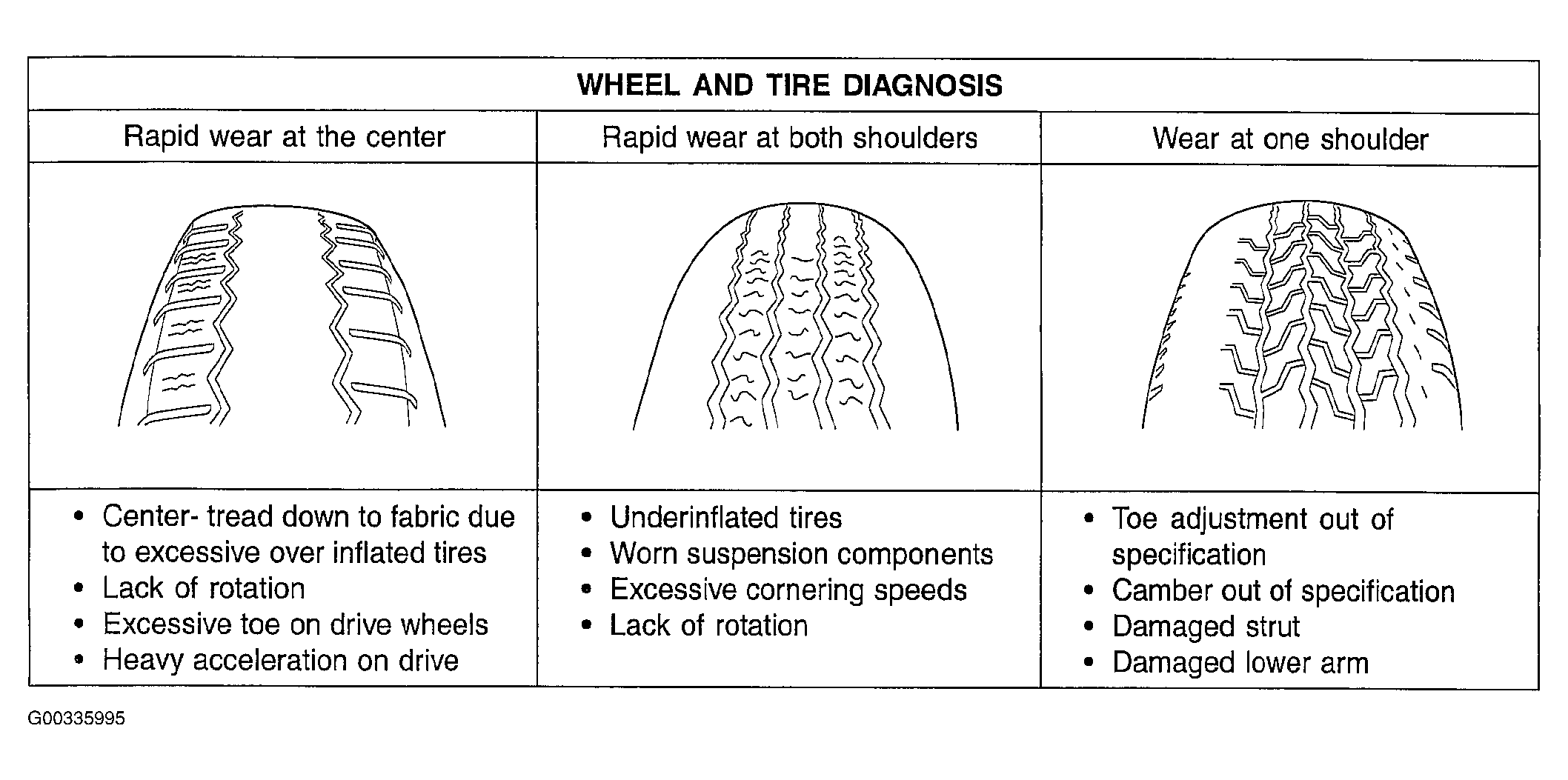

Fig 3: Trouble Shooting (3 Of 4)
G00335995Courtesy of HYUNDAI MOTOR CO.

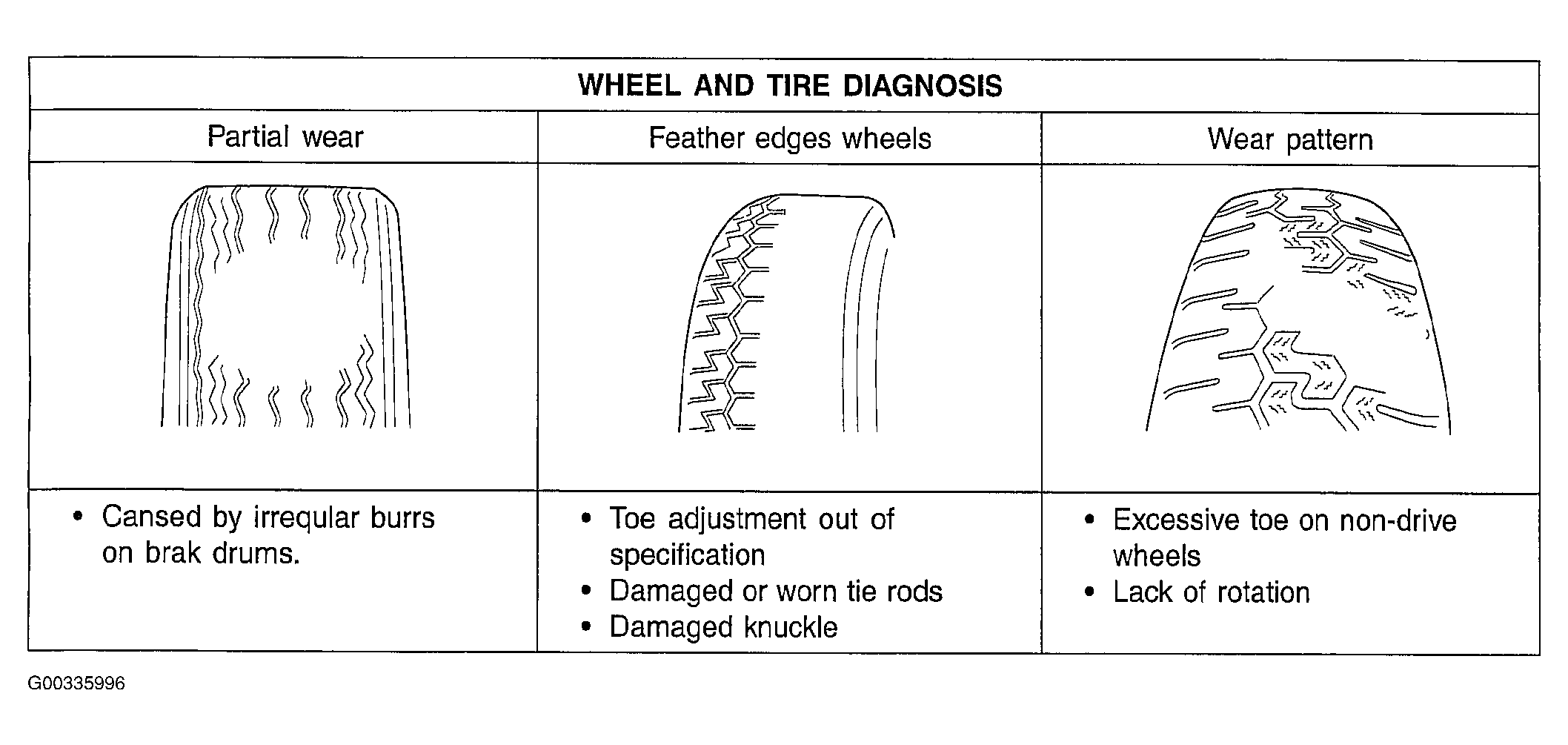

Fig 4: Trouble Shooting (4 Of 4)
G00335996Courtesy of HYUNDAI MOTOR CO.
