Home >> Hyundai >> 2004 >> Accent Base >> Repair and Diagnosis >> Suspension >> Front Suspension System >> Front Suspension System >> Front Hub/Knuckle >> Components

Front Hub/Knuckle: Components

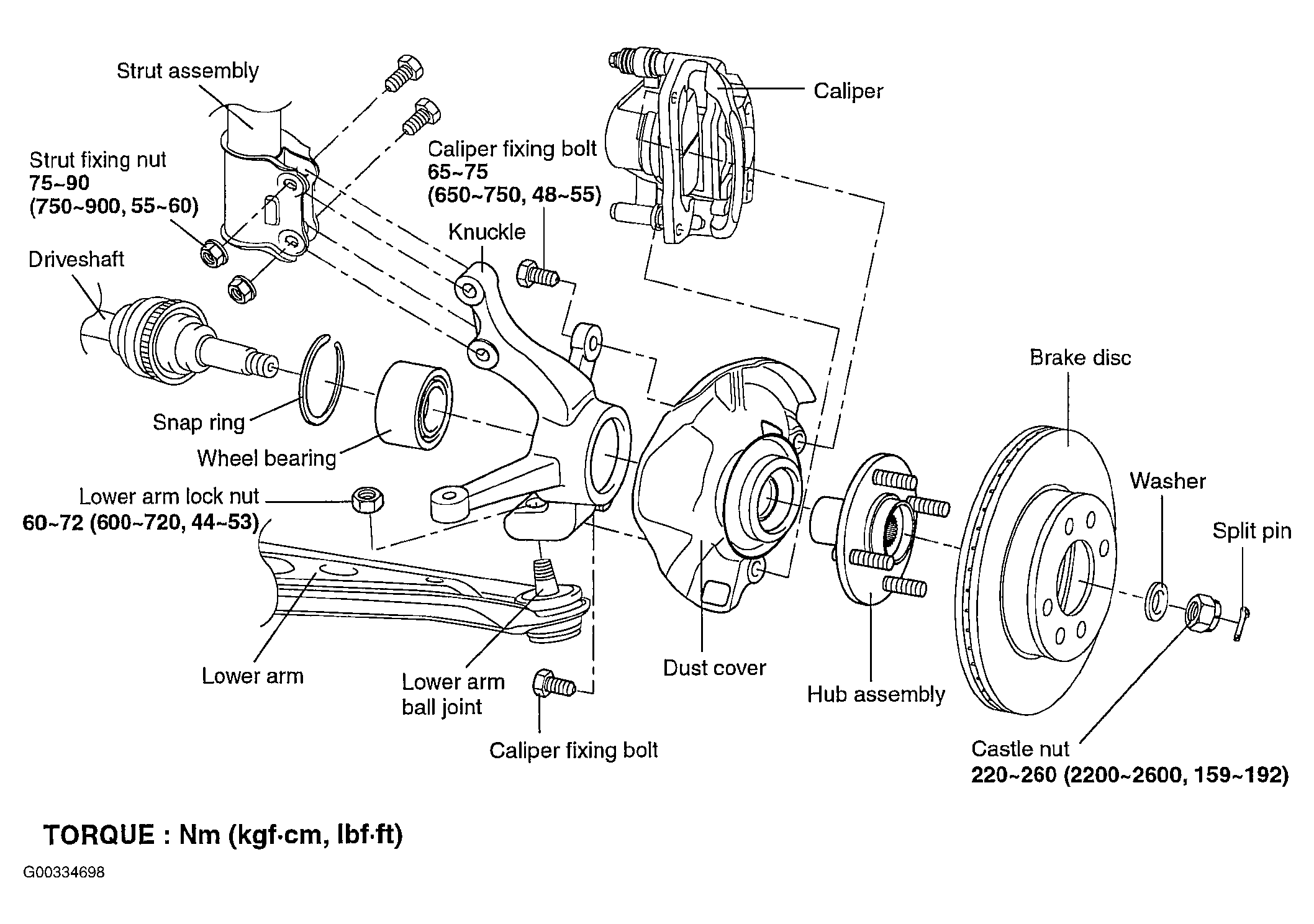

Fig 1: Identifying Front Hub/Knuckle Components
G00334698Courtesy of HYUNDAI MOTOR CO.
