Steering Column/Shaft: Installation

Place the steering column shaft in position and install the 4 mounting bolts temporarily.

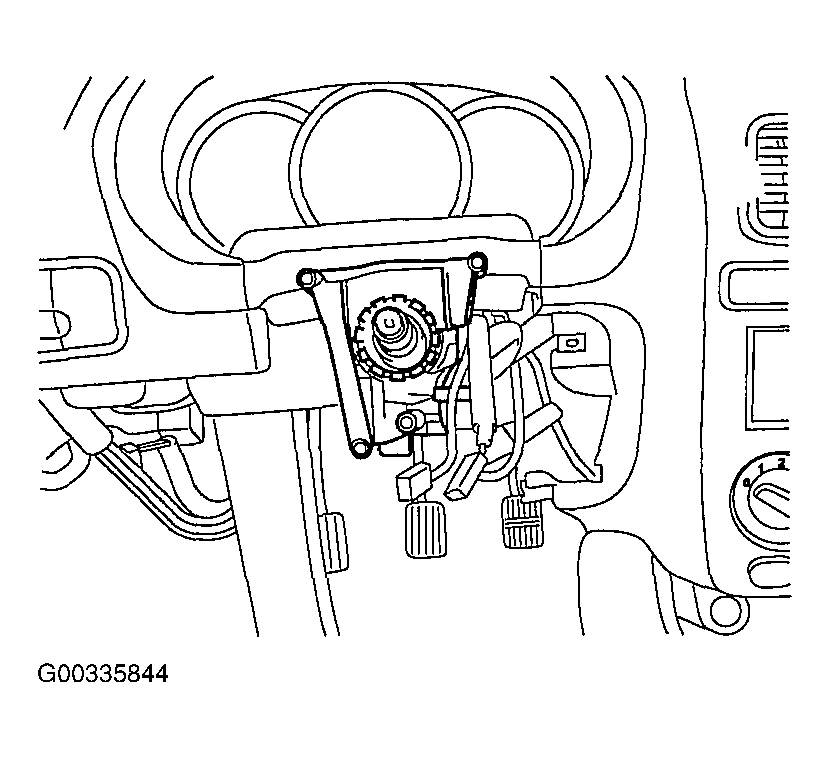

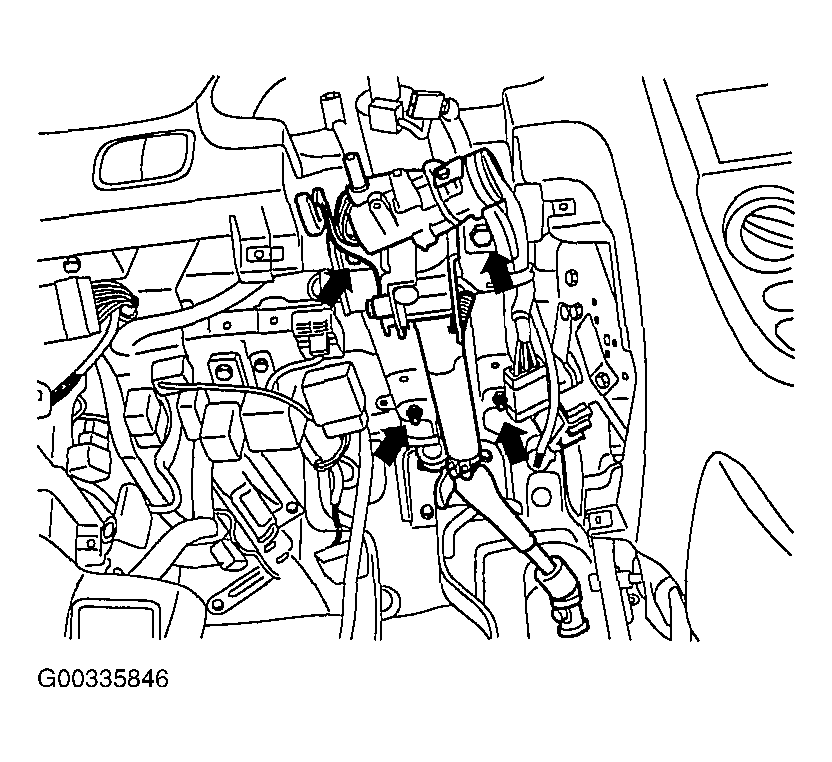

Fig 1: Installing Steering Column Shaft Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.
Install the bolt on the universal joint and gear box connecting part in the driver's side brake pedal lower portion.

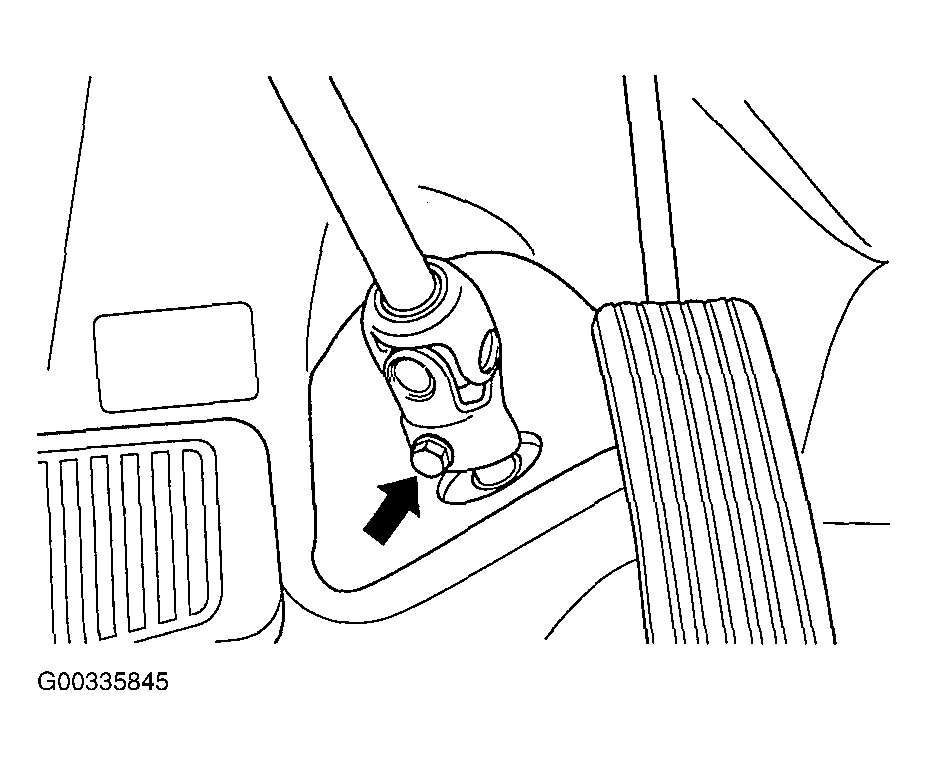

Fig 2: Installing Universal Joint & Gear Box Connecting Bolt
Courtesy of HYUNDAI MOTOR CO.
Completely tighten the temporarily installed 4 mounting bolts on the steering column shaft.

Fig 3: Locating Steering Column Shaft Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.
After installing the lower crash pad, tighten the 4 bolts.

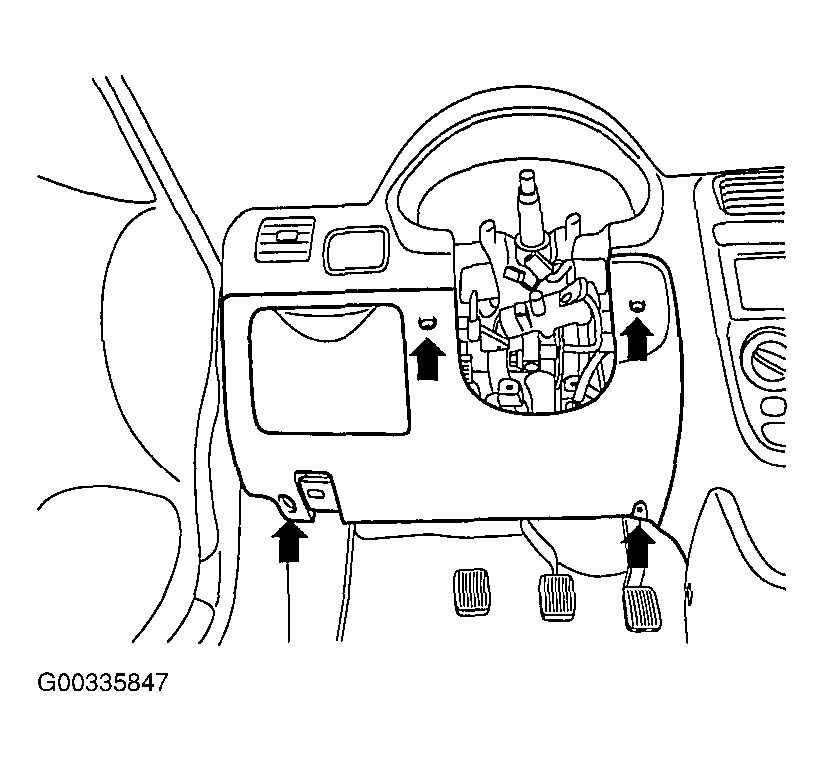

Fig 4: Installing Lower Crash Pad
Courtesy of HYUNDAI MOTOR CO.
Install the multi-function switch to the steering column shaft by pushing it until it reaches the marked portion.

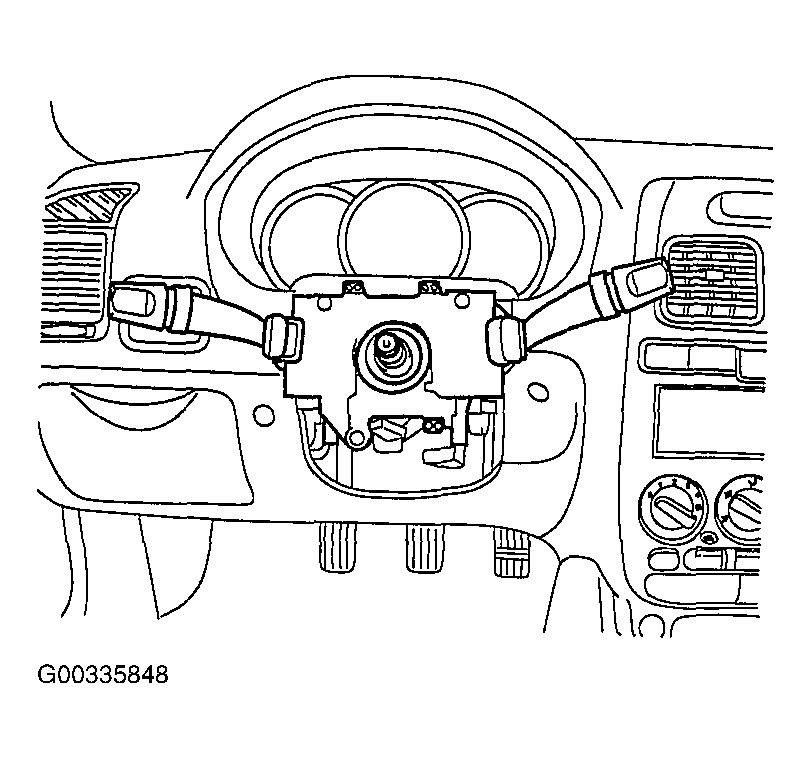

Fig 5: Installing Multi-Function Switch To Steering Column Shaft
Courtesy of HYUNDAI MOTOR CO.
Install the SRS clock spring and multi-function switch connector.

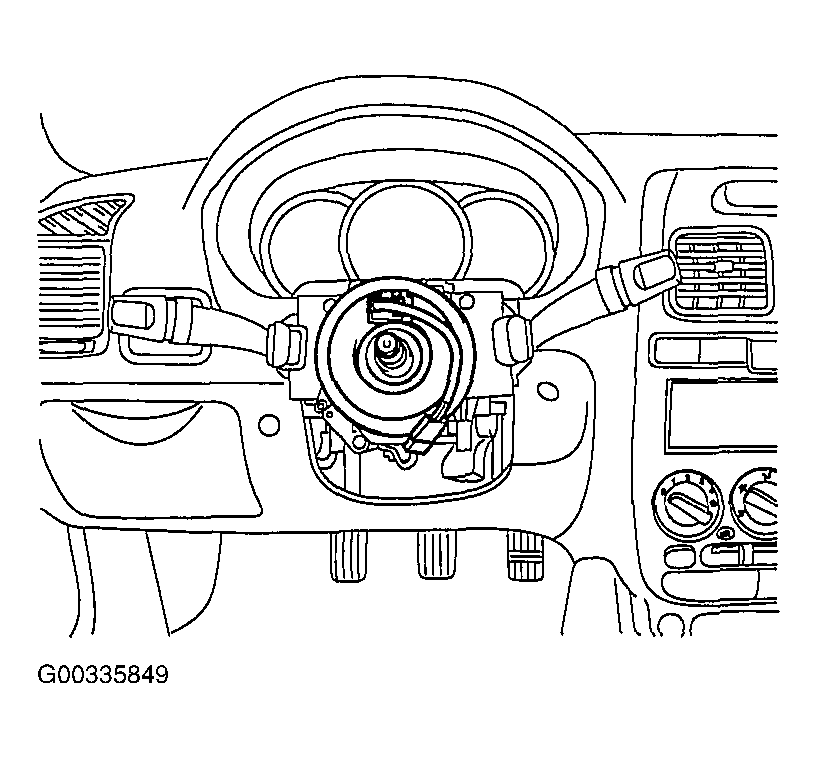

Fig 6: Installing SRS Clock Spring & Multi-Function Switch Connector
Courtesy of HYUNDAI MOTOR CO.
After installing the upper/lower column shroud, tighten the 3 bolts.

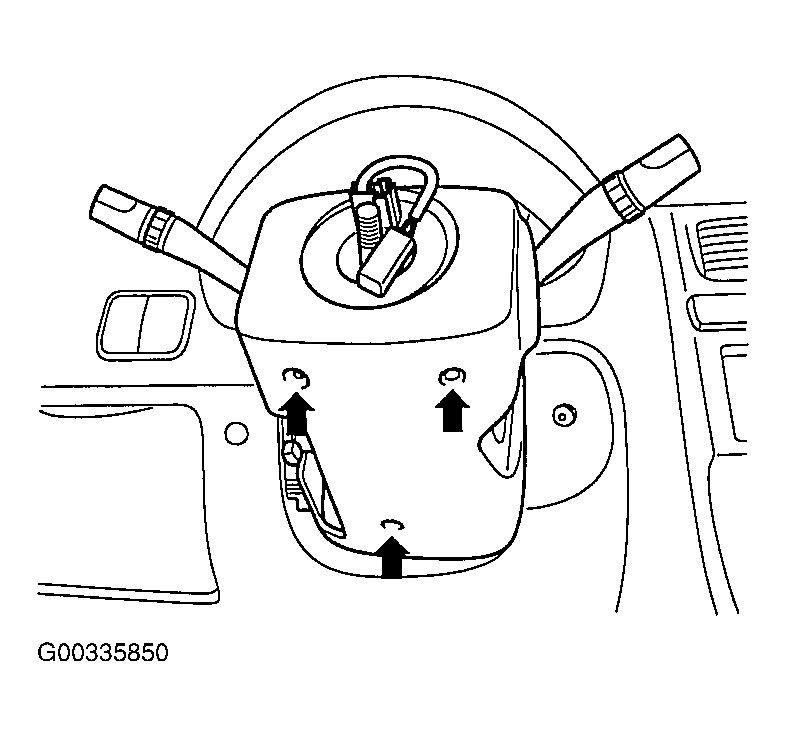

Fig 7: Installing Upper/Lower Column Shroud
Courtesy of HYUNDAI MOTOR CO.
Fix the steering wheel with a lock nut.

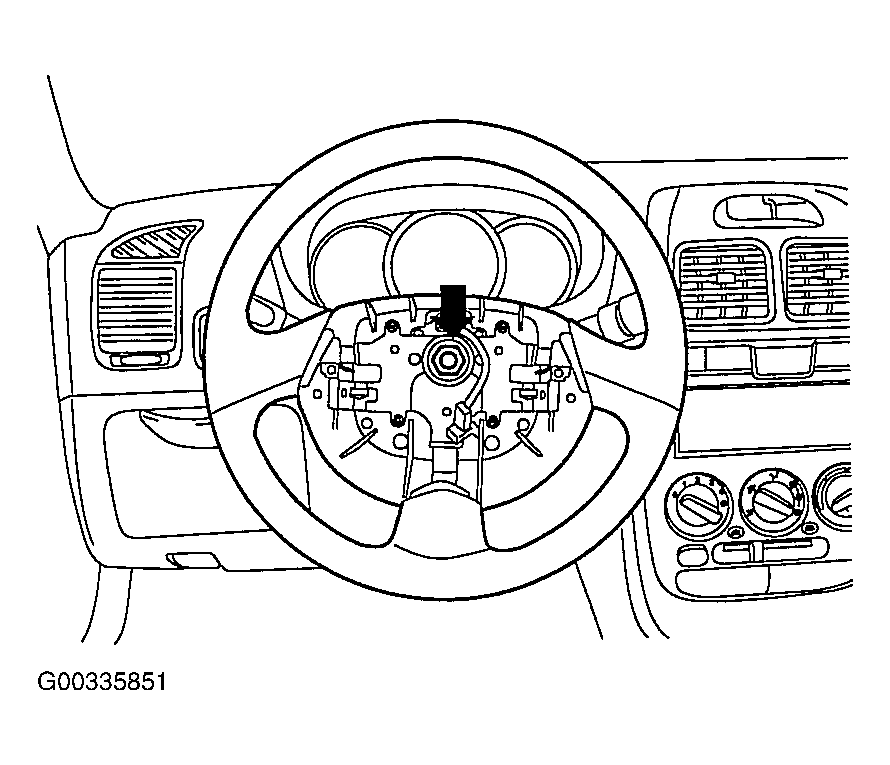

Fig 8: Installing Steering Wheel Lock Nut
Courtesy of HYUNDAI MOTOR CO.
Fix the SRS module to the steering wheel with 2 bolts.

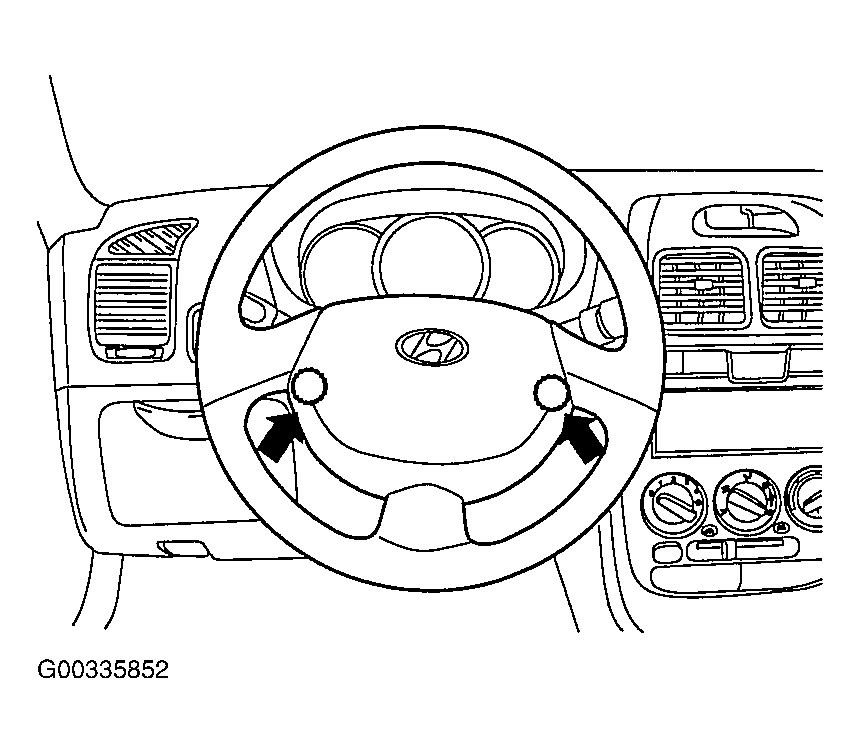

Fig 9: Locating Steering Wheel SRS Module Cover Bolts
Courtesy of HYUNDAI MOTOR CO.
Connect the negative battery cable.

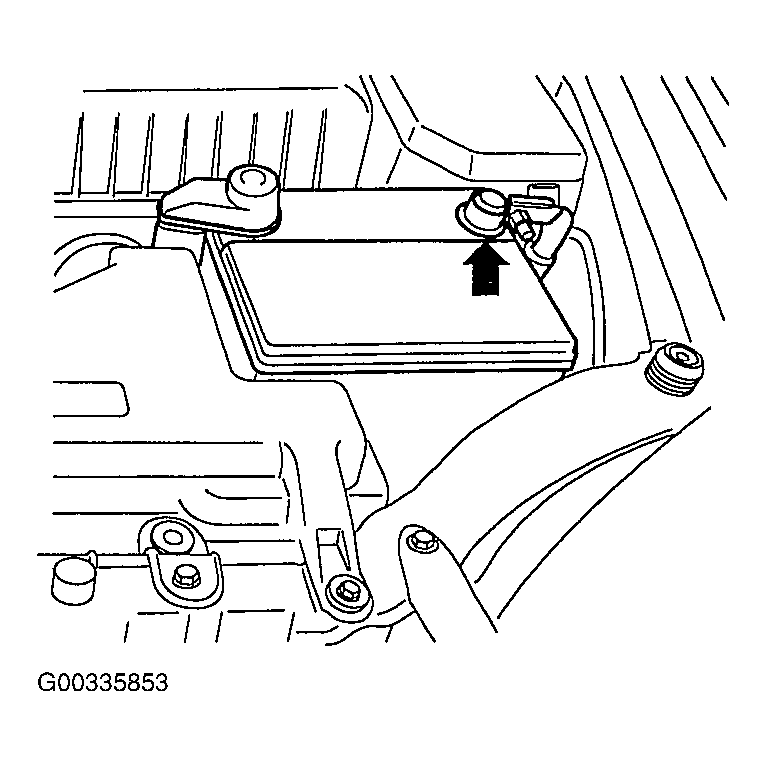

Fig 10: Connecting Negative Battery Cable

Courtesy of HYUNDAI MOTOR CO.
