Section 1 (Automatic Transaxle System)
>>
Inspection Chart For Trouble Symptoms
>>
Inspection Procedure 7
Inspection Procedure 7
WARNING:
This page is about a different variant/trim than selected.

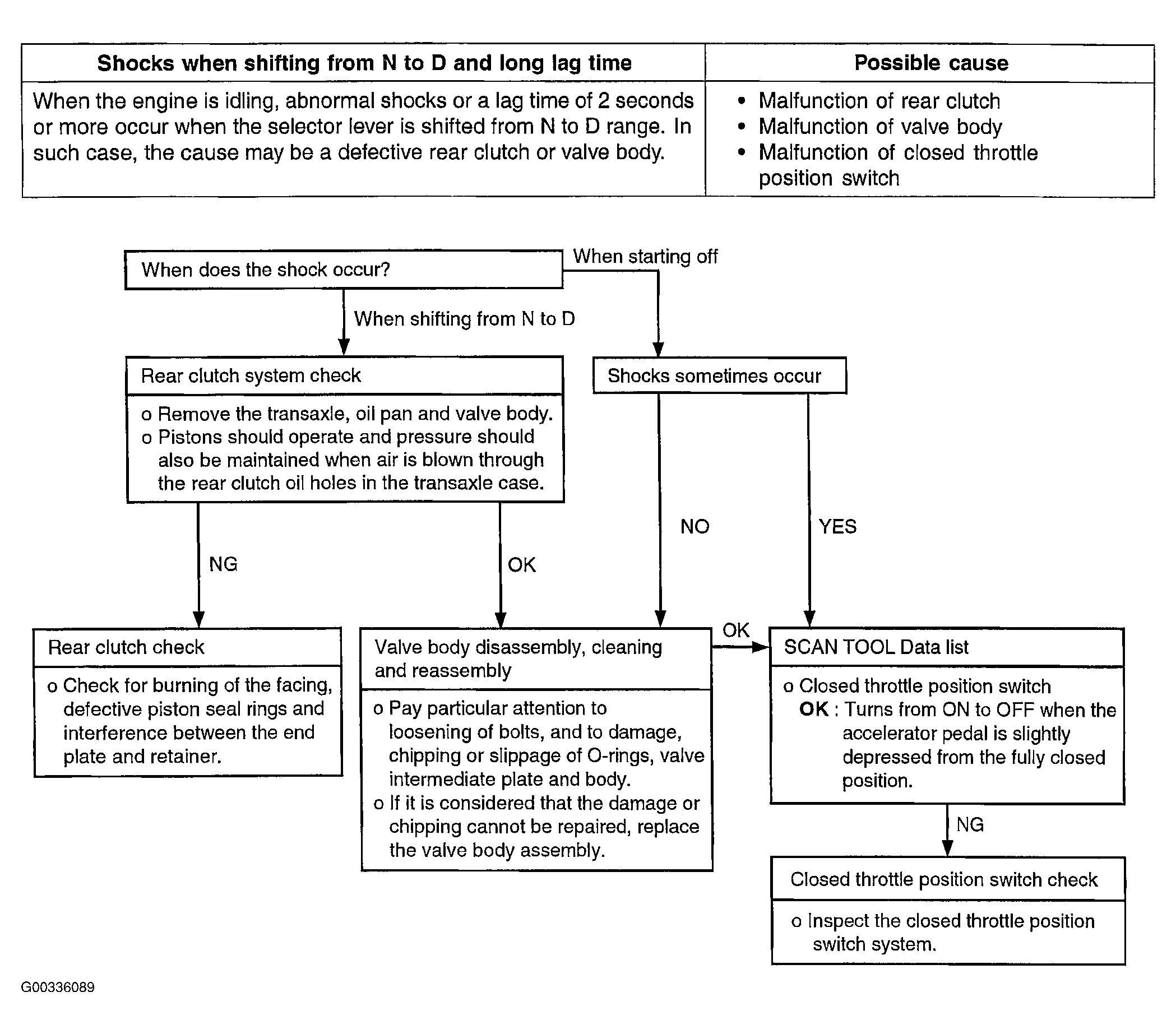

Fig 1: Inspection Procedure 7 Flow Chart
Courtesy of HYUNDAI MOTOR CO.
