Section 1 (Automatic Transaxle System)
>>
Inspection Chart For Trouble Symptoms
>>
Inspection Procedure 14
Inspection Procedure 14
WARNING:
This page is about a different variant/trim than selected.

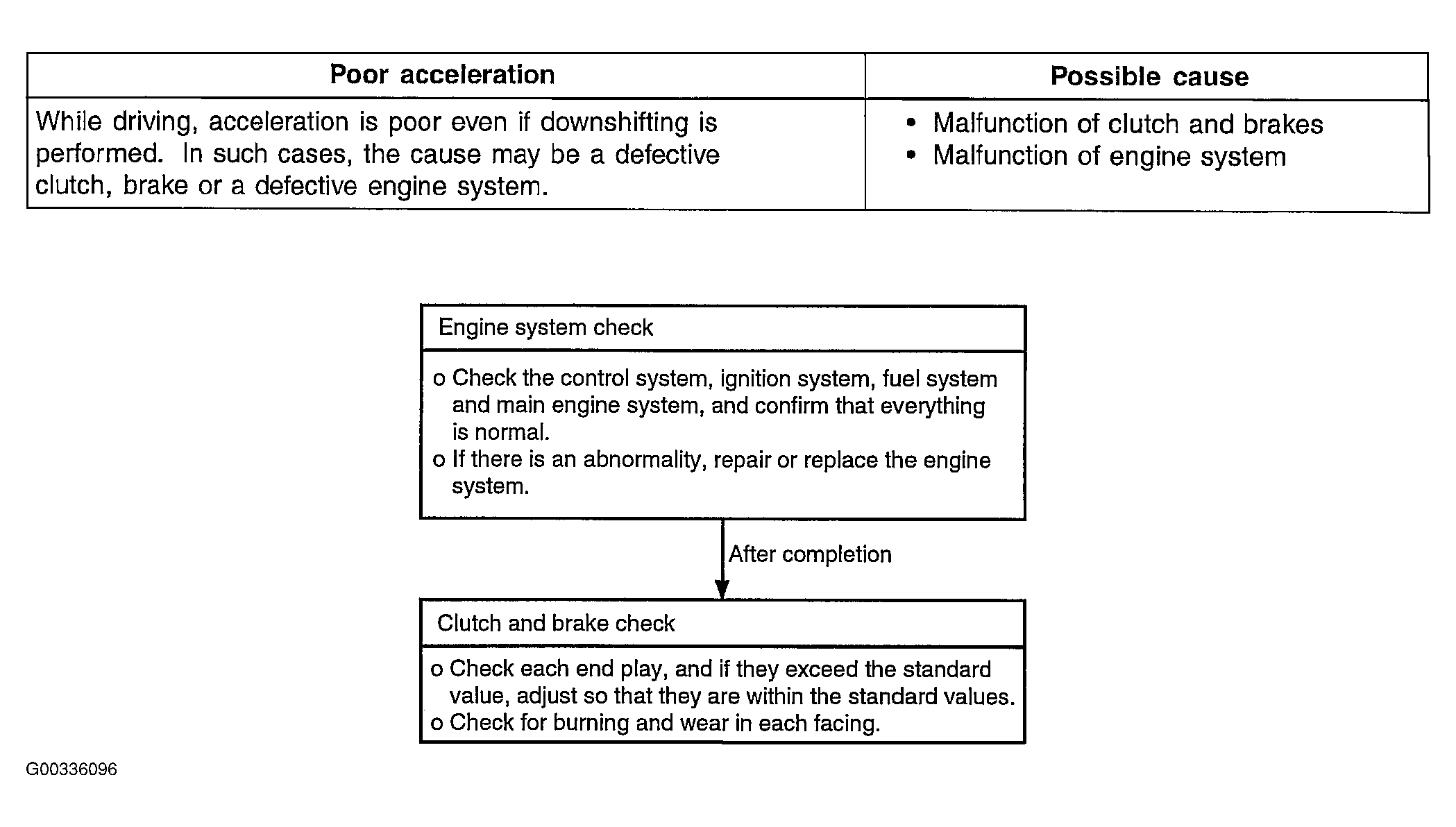

Fig 1: Inspection Procedure 14 Flow Chart
Courtesy of HYUNDAI MOTOR CO.
