4 to 2 Skip shift

WARNING: This page is about a different variant/trim than selected.

Operating elements

Fig 1: Operating Elements Table
Courtesy of HYUNDAI MOTOR CO.
Controls
1. R/C engaging duty control
2. E/C releasing duty control
3. Continuous switching to SA
Description
1. R/C engaging duty control

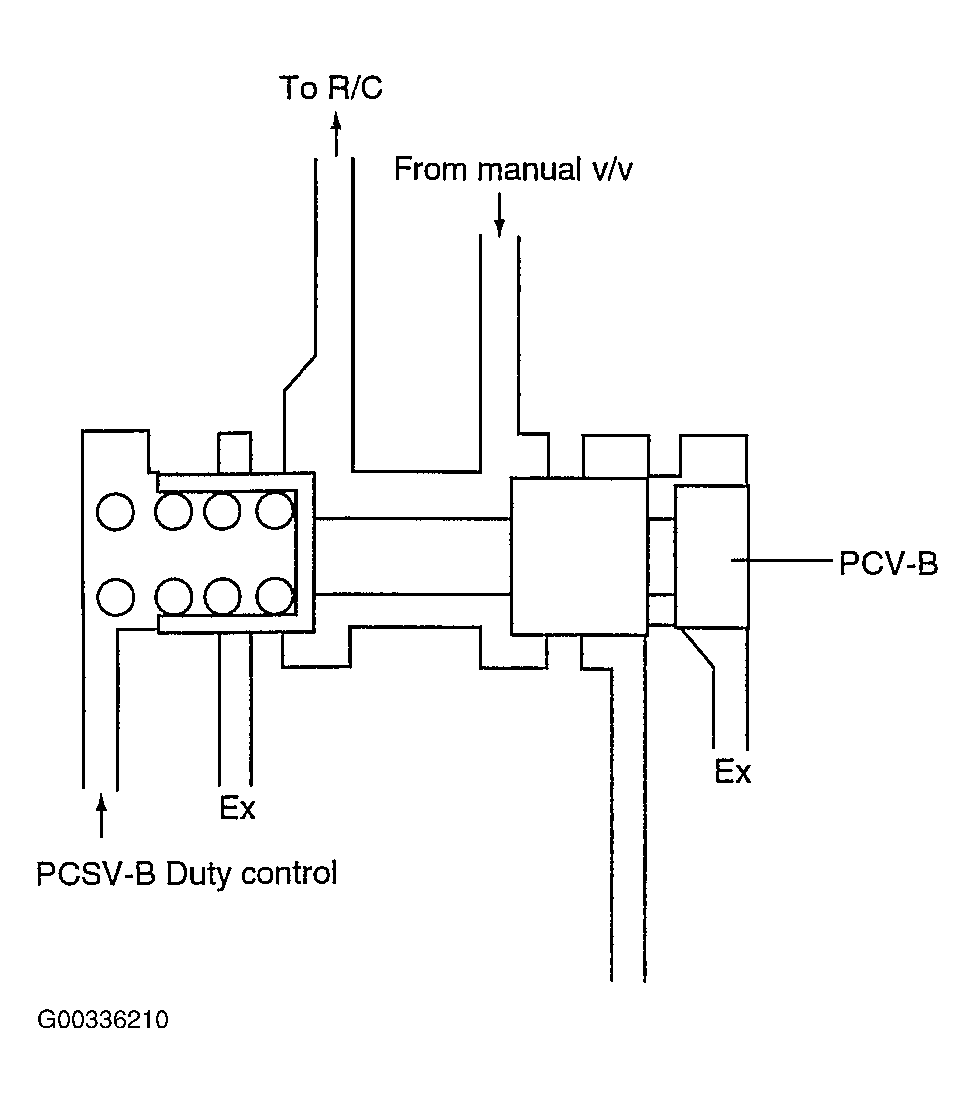

  Fig 2: R/C Engaging Duty Control
  Courtesy of HYUNDAI MOTOR CO.
2. E/C releasing duty control
  4 to 2 Skip shift only (SCSV-C ON)

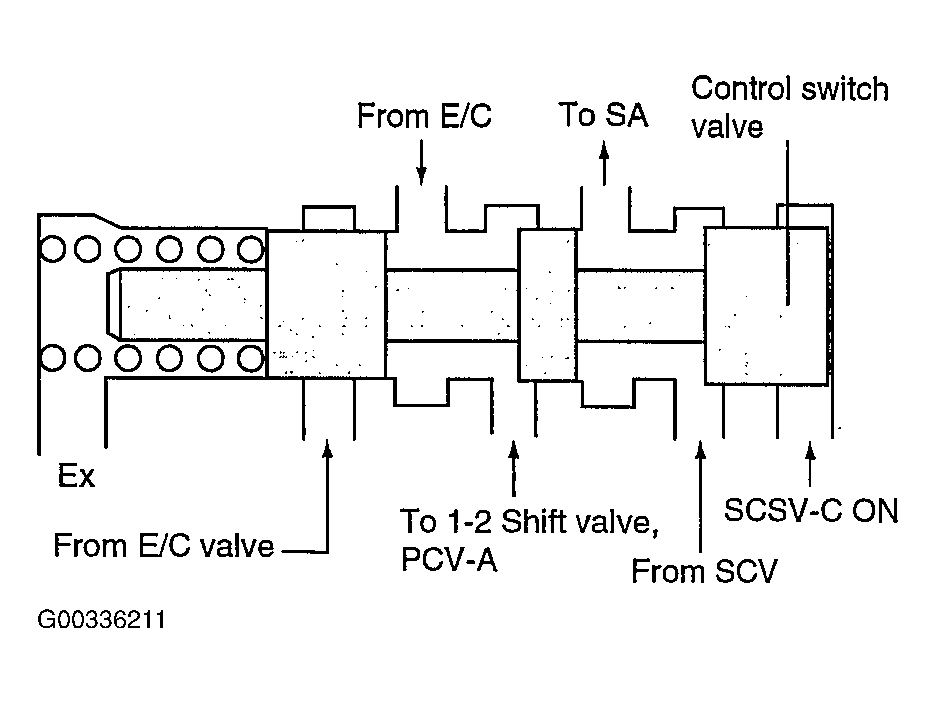

  Fig 3: E/C Releasing Duty Control
  Courtesy of HYUNDAI MOTOR CO.

  When releasing the E/C clutch pressure, it is controlled by duty of PCSV-A only in case of 4 to 2 skip shift.
3. Continuous switching to SA
- From (SCV) to SA through (CSV)
