Strut Assembly: Components

WARNING: This page is about a different car, the 2003 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.

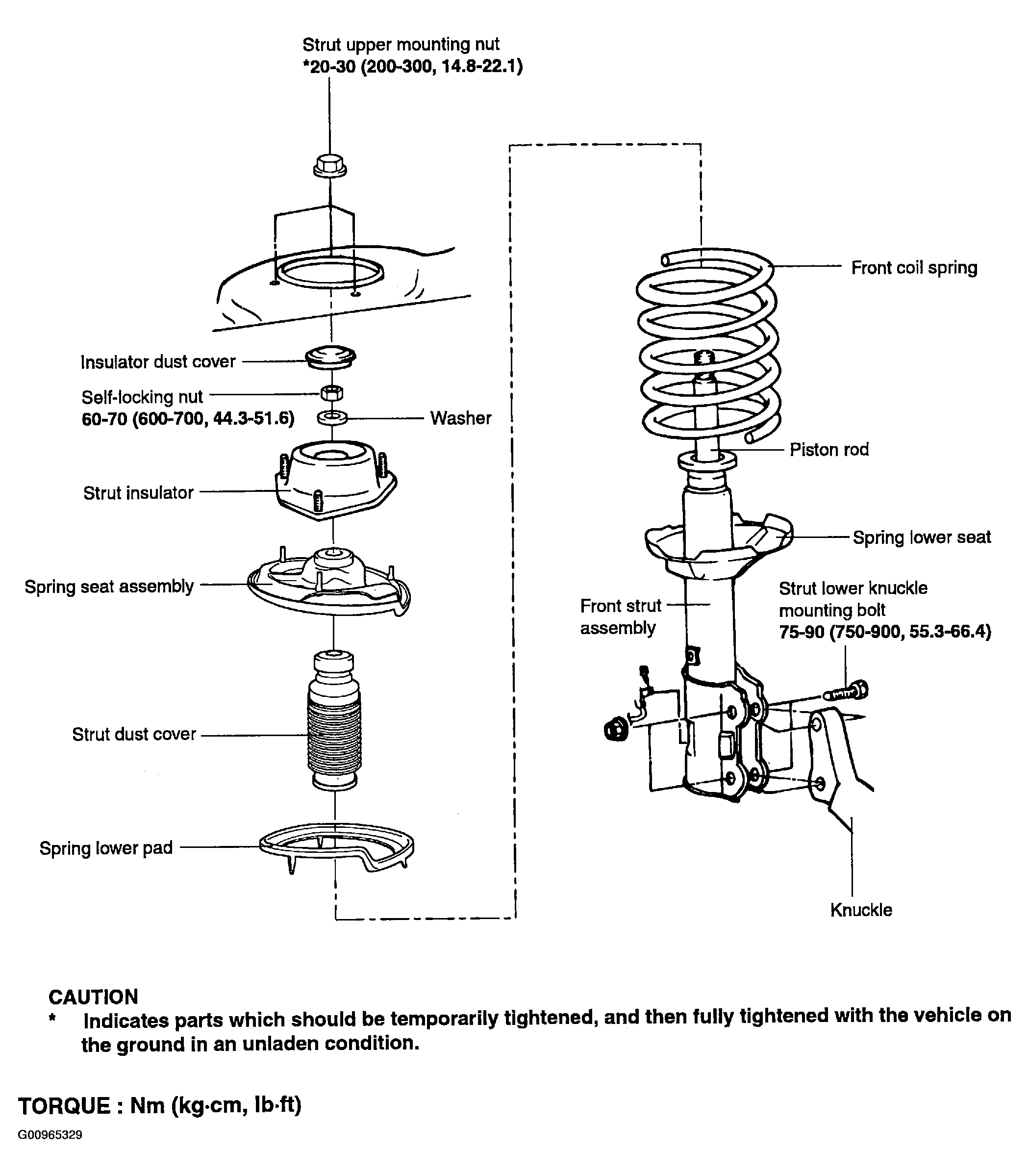

Fig 1: Strut Assembly Components
G00965329Courtesy of HYUNDAI MOTOR CO.
