Home >> Hyundai >> 2004 >> Accent Base >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> 1.6L 4-Cylinder Engine >> Troubleshooting

1.6L 4-Cylinder Engine: Troubleshooting

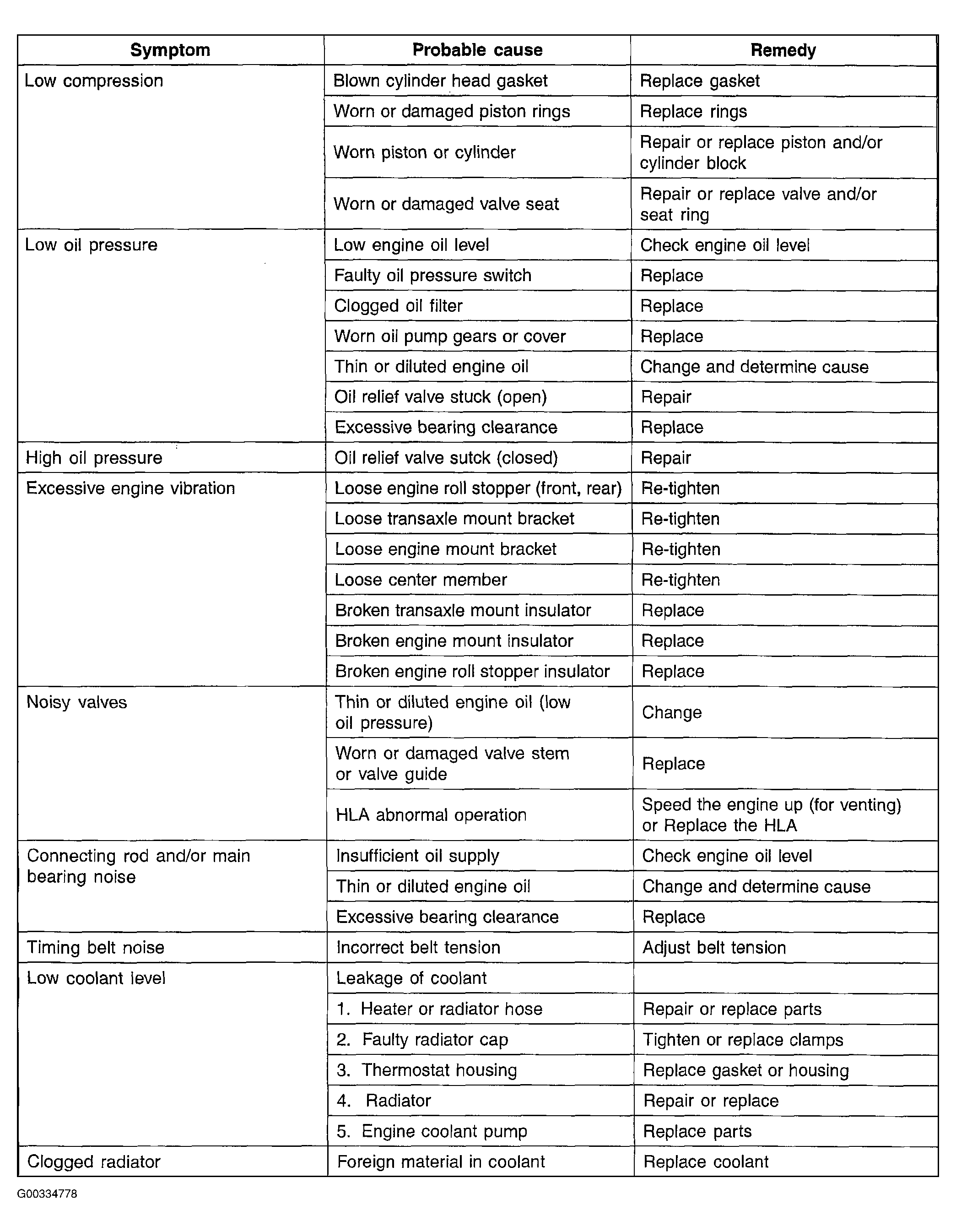

Fig 1: Trouble Shooting Table (1 Of 2)

G00334778

Courtesy of HYUNDAI MOTOR CO.

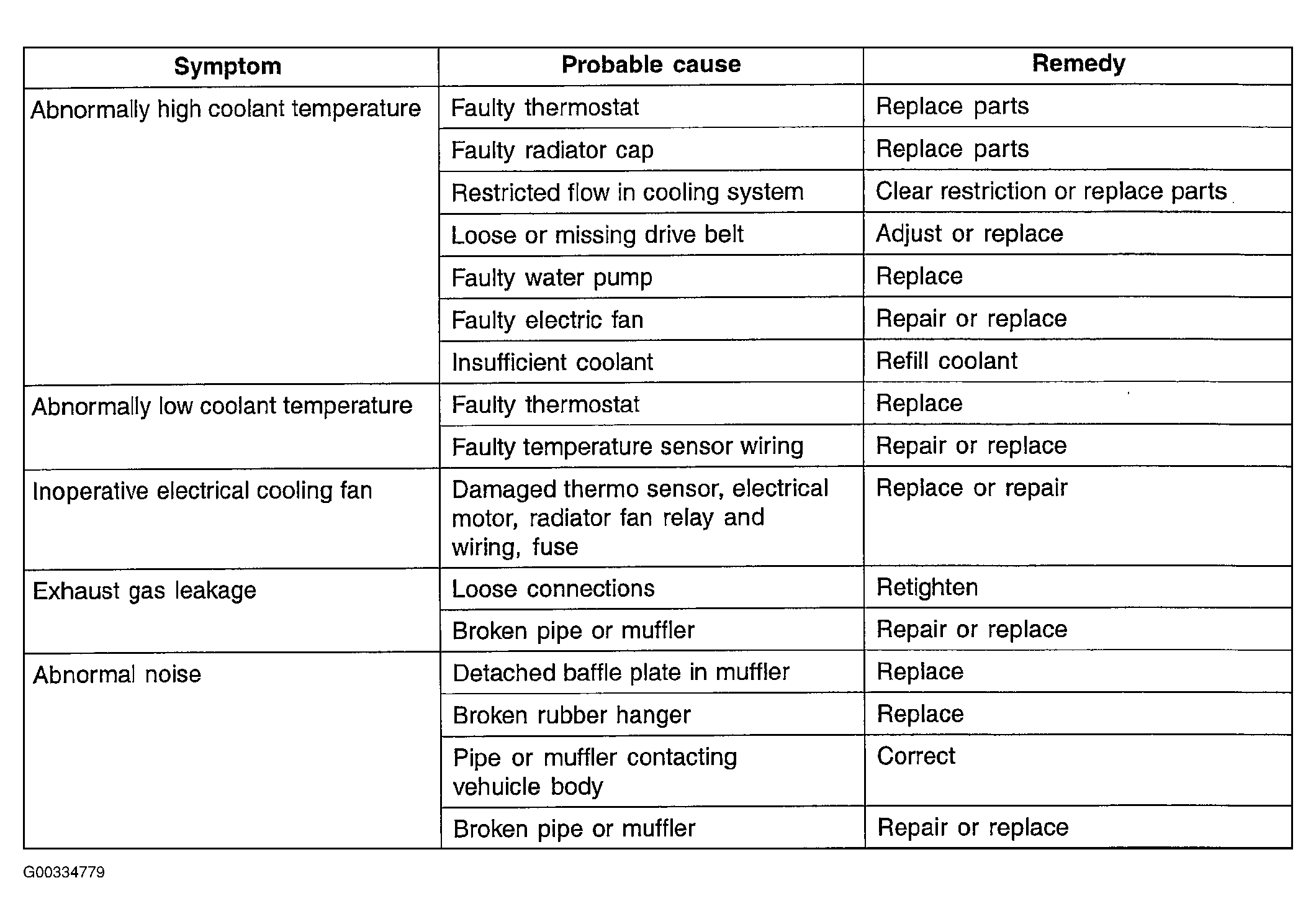

Fig 2: Trouble Shooting Table (2 Of 2)

G00334779

Courtesy of HYUNDAI MOTOR CO.
