Timing Belt: Disassembly

Lift the vehicle by using of jack.

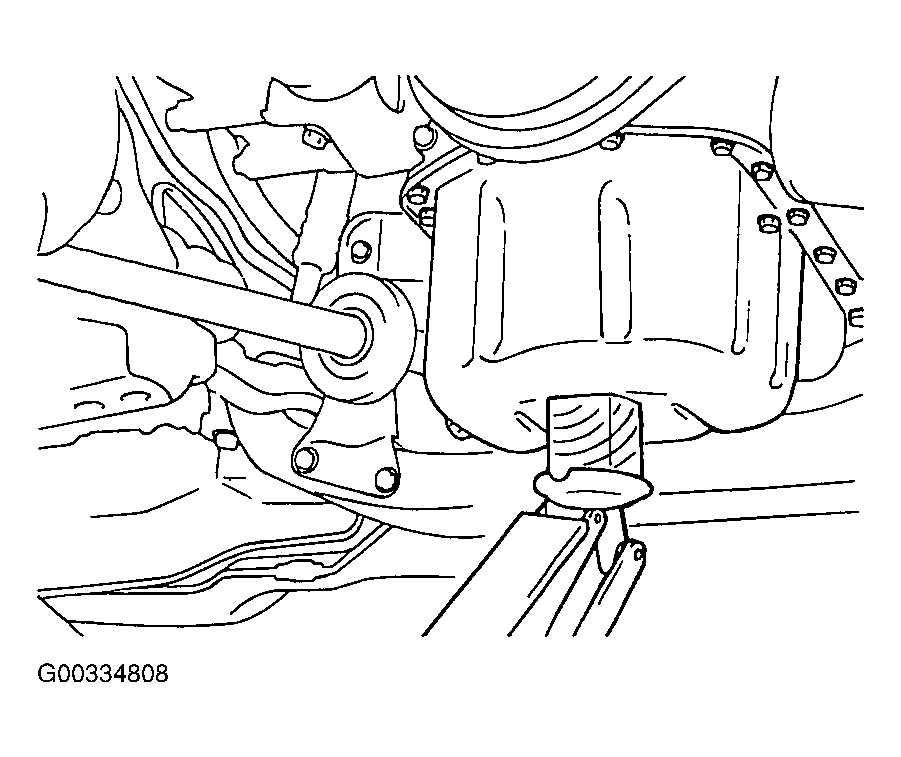

Fig 1: Lifting Vehicle With Jack
Courtesy of HYUNDAI MOTOR CO.
Remove the engine support bracket. (14 mm bolt and 2 nuts, 17 mm bolt)

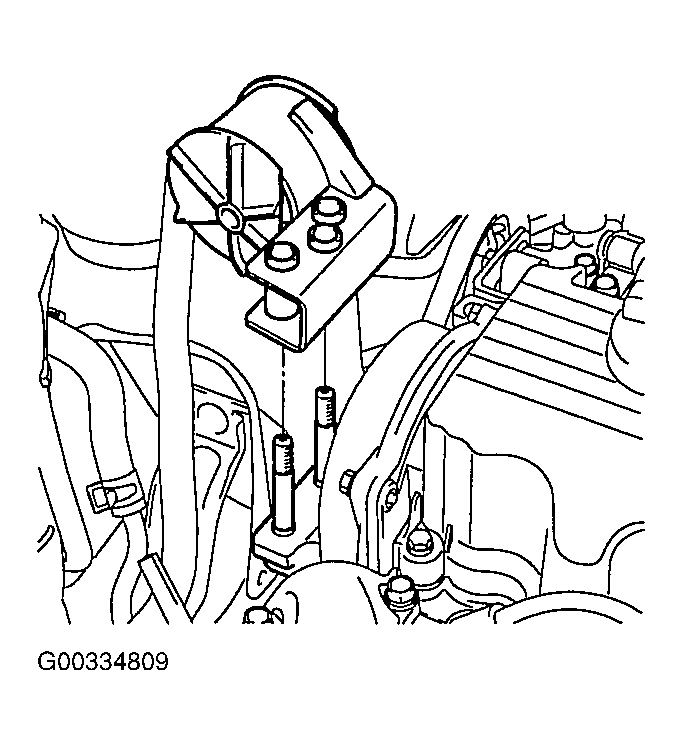

Fig 2: Removing Engine Support Bracket
Courtesy of HYUNDAI MOTOR CO.
Remove the power steering belt.
Remove the air conditioning compressor belt.
Remove the alternator belt.

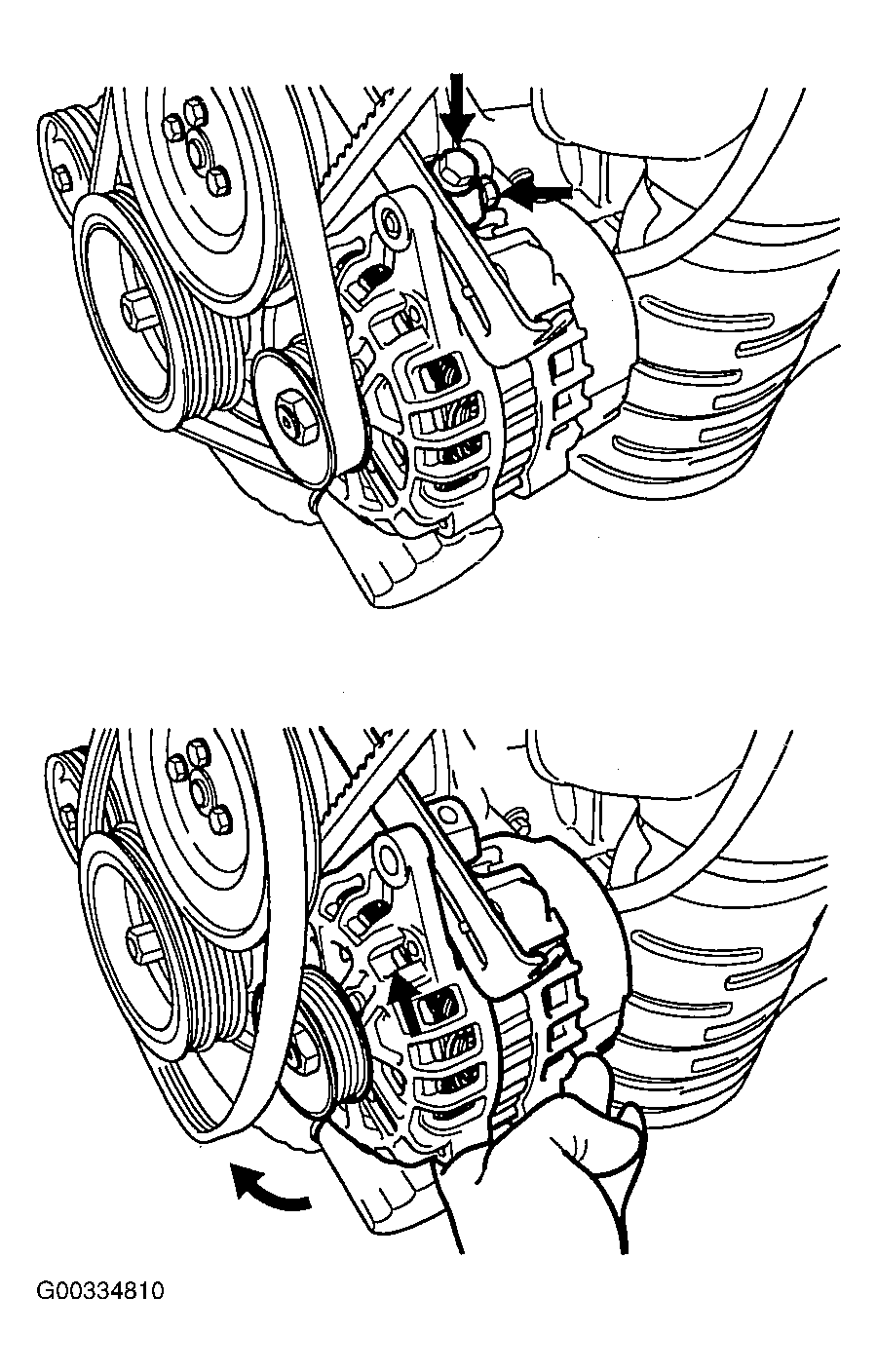

Fig 3: Locating Alternator Adjuster Bolt
Courtesy of HYUNDAI MOTOR CO.
Remove the coolant pump pulley.

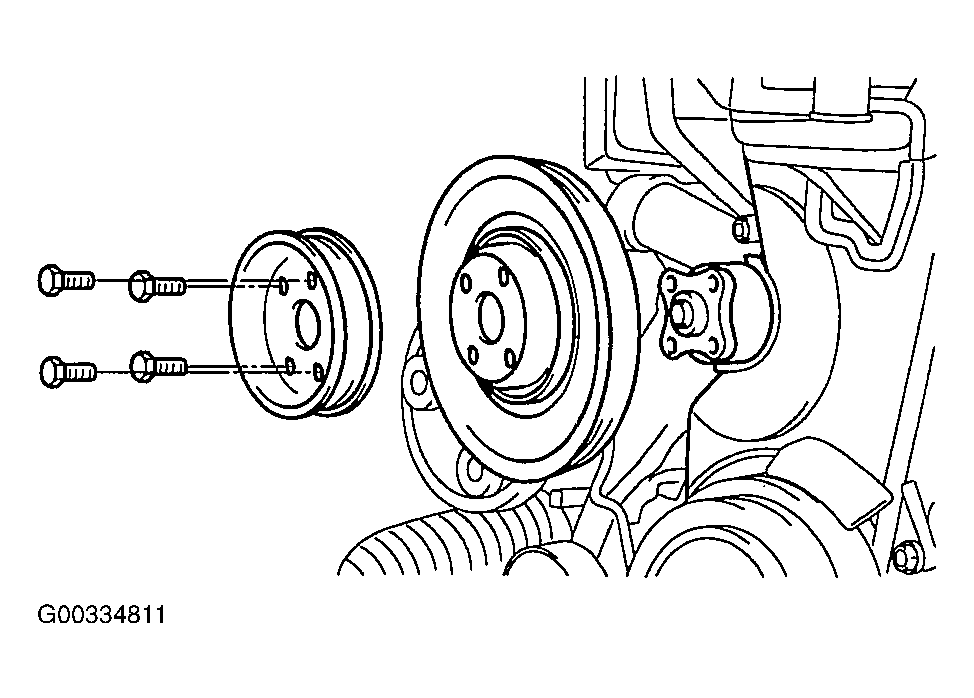

Fig 4: Removing Coolant Pump Pulley
Courtesy of HYUNDAI MOTOR CO.
Remove the crankshaft pulley.

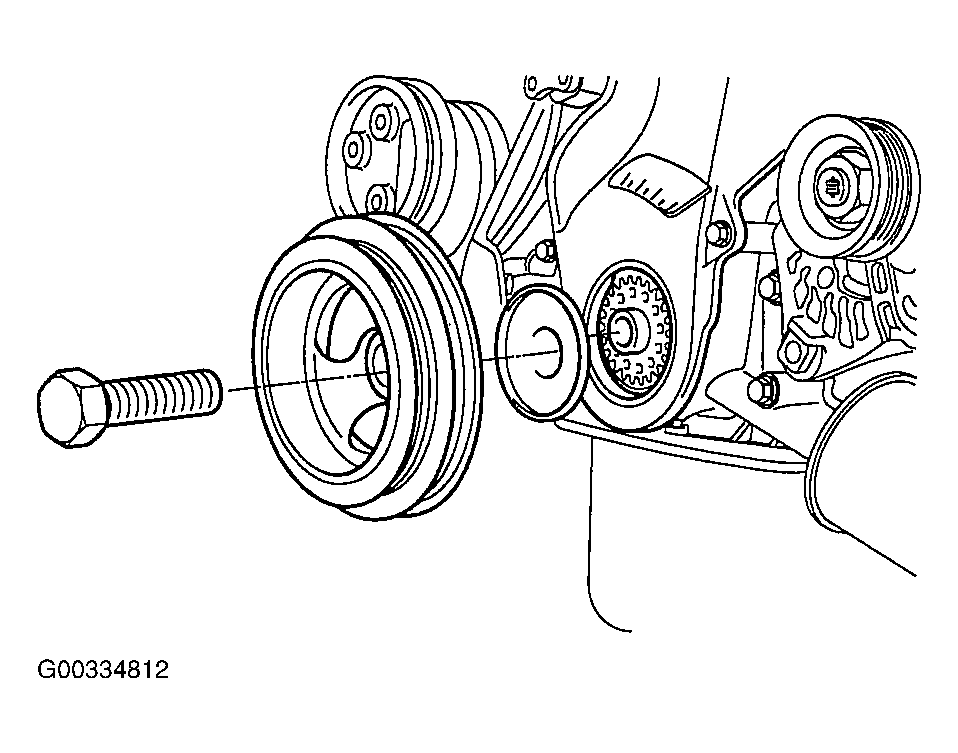

Fig 5: Removing Crankshaft Pulley
Courtesy of HYUNDAI MOTOR CO.
Remove the timing belt cover.

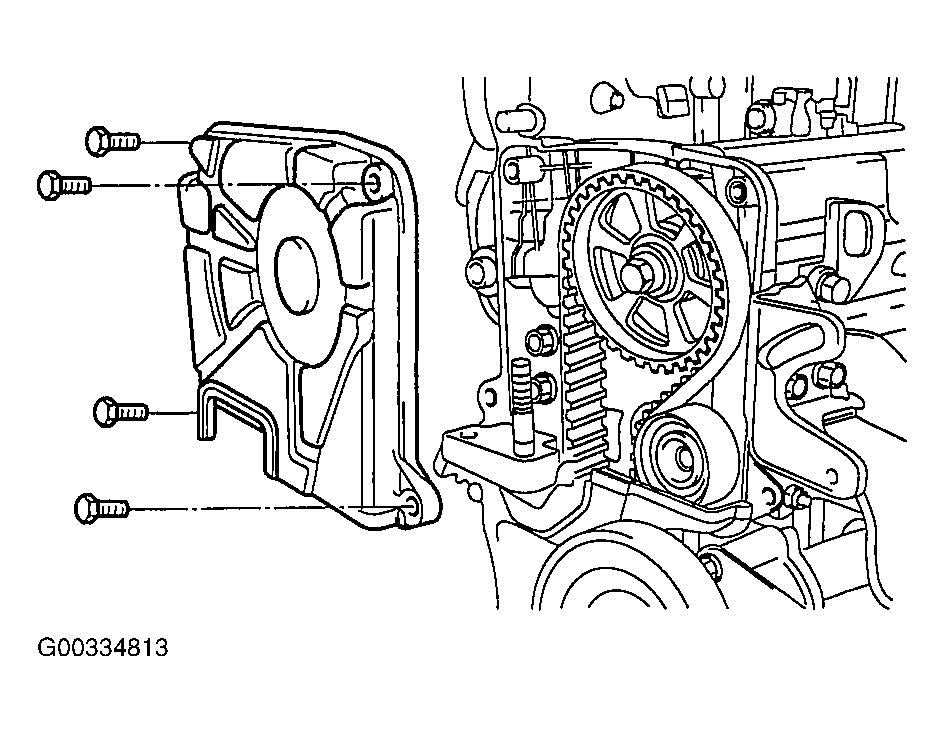

Fig 6: Removing Timing Belt Cover
Courtesy of HYUNDAI MOTOR CO.
Move the timing belt tensioner pulley toward the coolant pump and temporarily secure it.

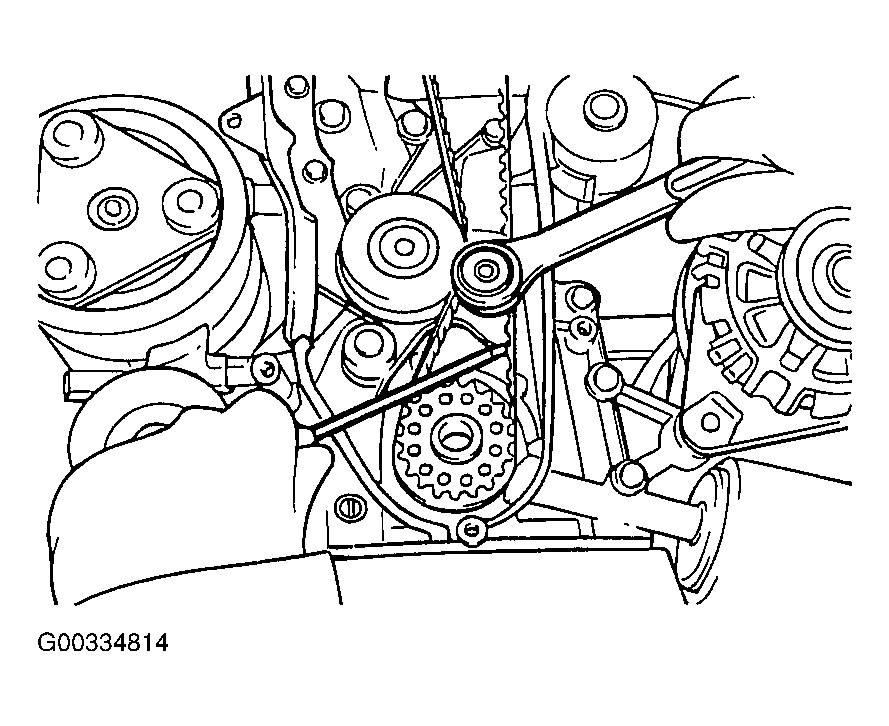

Fig 7: Loosening Timing Belt Tensioner
Courtesy of HYUNDAI MOTOR CO.
Remove the timing belt.
NOTE: If the timing belt is reused, mark with an arrow to indicate direction of rotation (on the front of the engine) to make sure that the belt is reinstalled in the same direction as before.

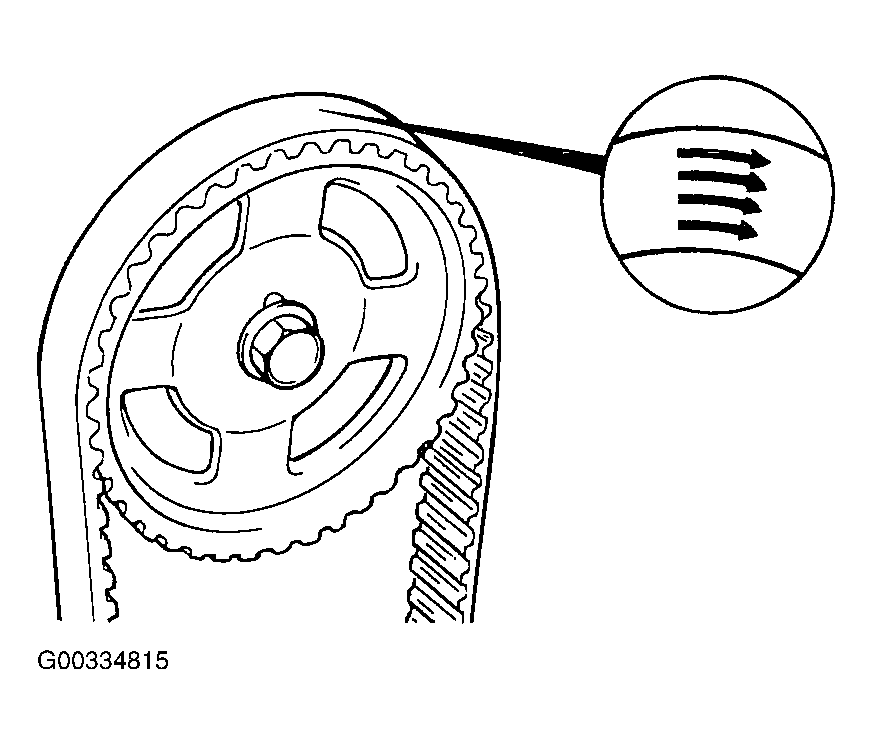

Fig 8: Marking Timing Belt For Installation
Courtesy of HYUNDAI MOTOR CO.
Remove the camshaft from the camshaft sprocket.
Remove the crankshaft sprocket and flange.
Remove the timing belt idler.
Remove the timing belt tensioner.

Fig 9: Removing Timing Belt Tensioner
Courtesy of HYUNDAI MOTOR CO.
