Fly Wheel: Components

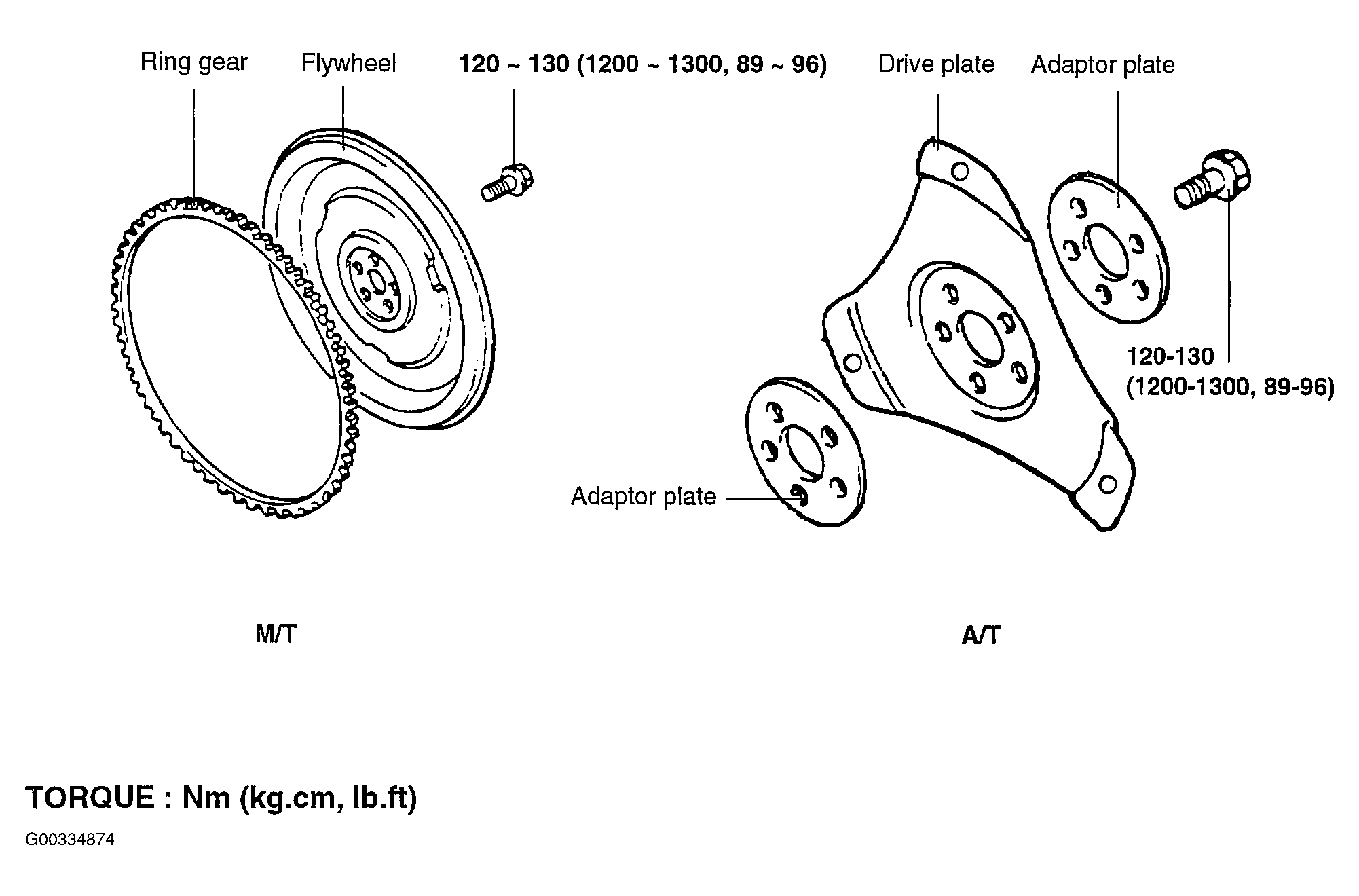

Fig 1: Identifying Flywheel Components

G00334874

Courtesy of HYUNDAI MOTOR CO.

M/T: Manual Transmission Vehicles

A/T: Automatic Transmission Vehicles
