Main Moving System: Crankshaft: Components

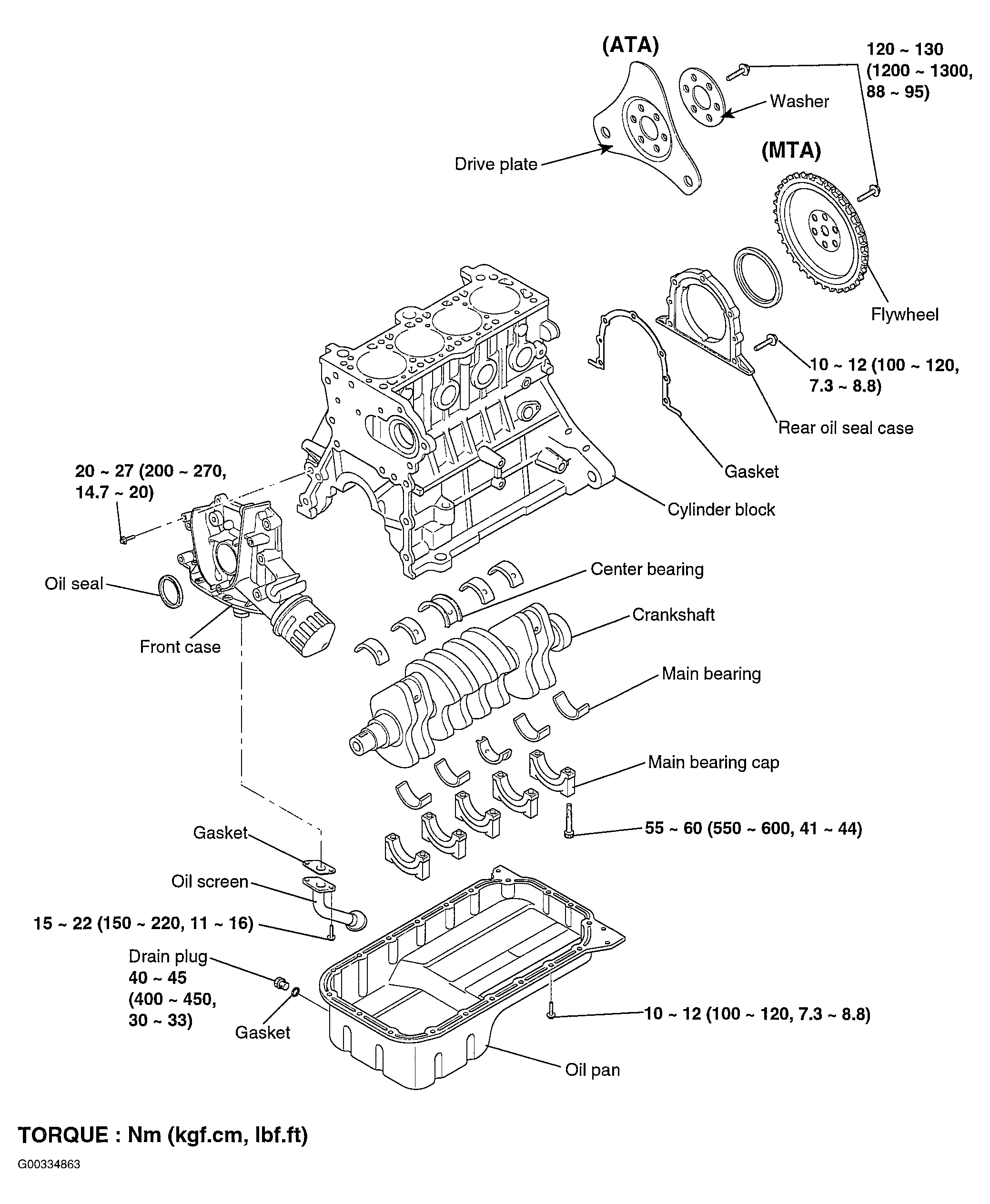

Fig 1: Identifying Crankshaft Components

G00334863

Courtesy of HYUNDAI MOTOR CO.
