Main Moving System: Camshaft: Components

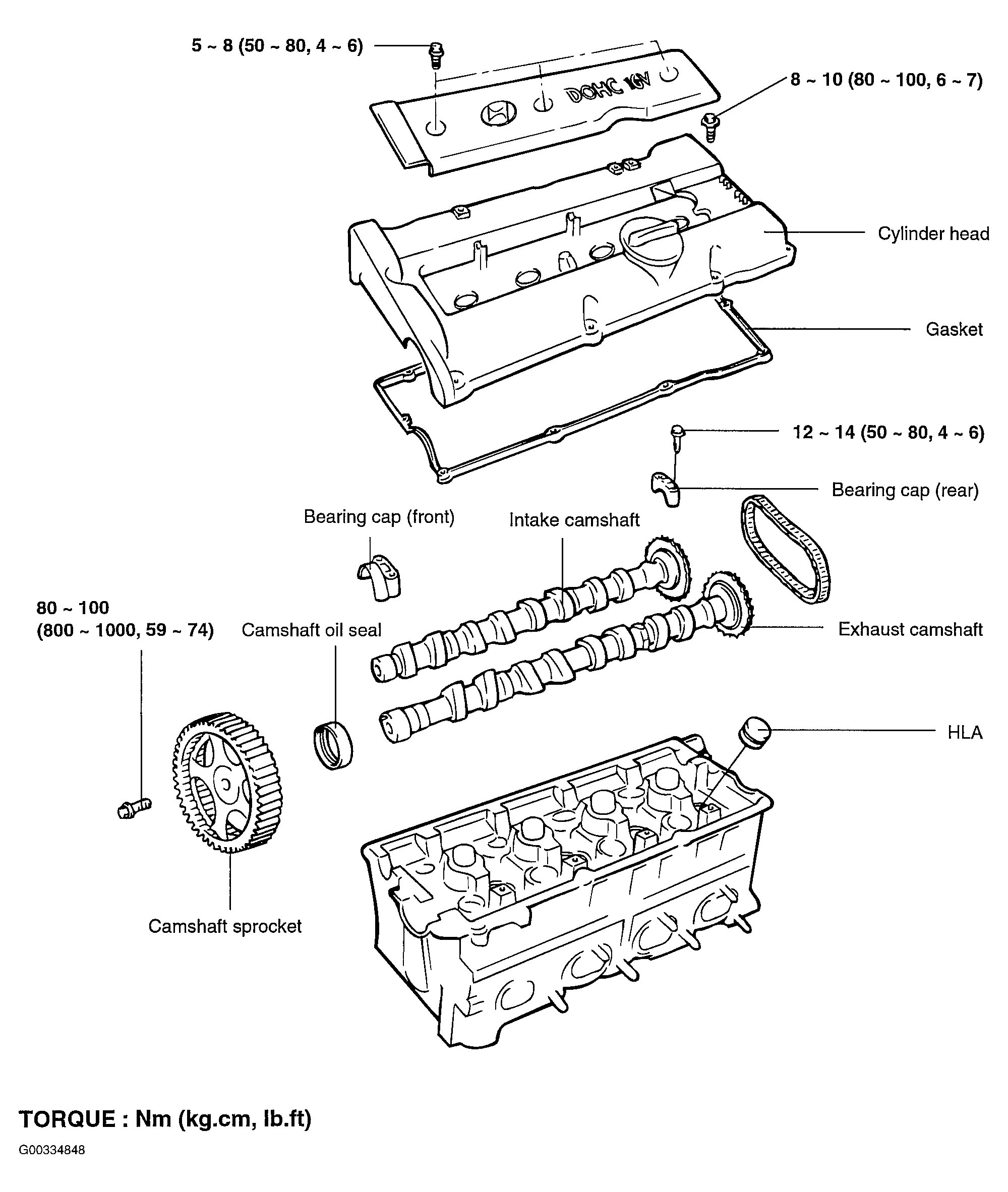

Fig 1: Identifying Camshaft Components

G00334848

Courtesy of HYUNDAI MOTOR CO.
