Intake Manifold: Installation

  1. Replace the intake manifold gasket and install the intake manifold.
  2. Install the intake manifold stay.
  3. Install the delivery pipe with the fuel injectors.
    CAUTION: Be careful not to drop the injectors when removing the delivery pipe.

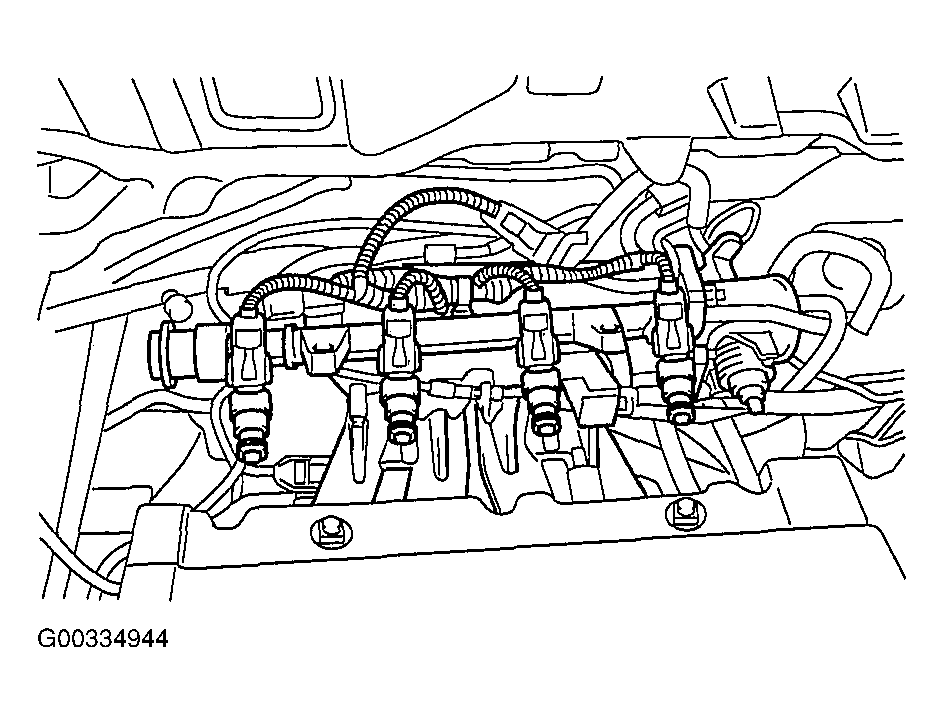

    Fig 1: Installing Delivery Pipe With Fuel Injectors
    G00334944Courtesy of HYUNDAI MOTOR CO.
  4. Connect the fuel injector harness connector.
  5. Install the P.C.V. hose and brake booster vacuum hose.
  6. Install the intake air hose to the throttle body.
  7. Install the accelerator cable.
  8. Connect the ISA and TPS wire harness connector.
