Engine Mounting

Remove the engine mounting support bracket from the engine.

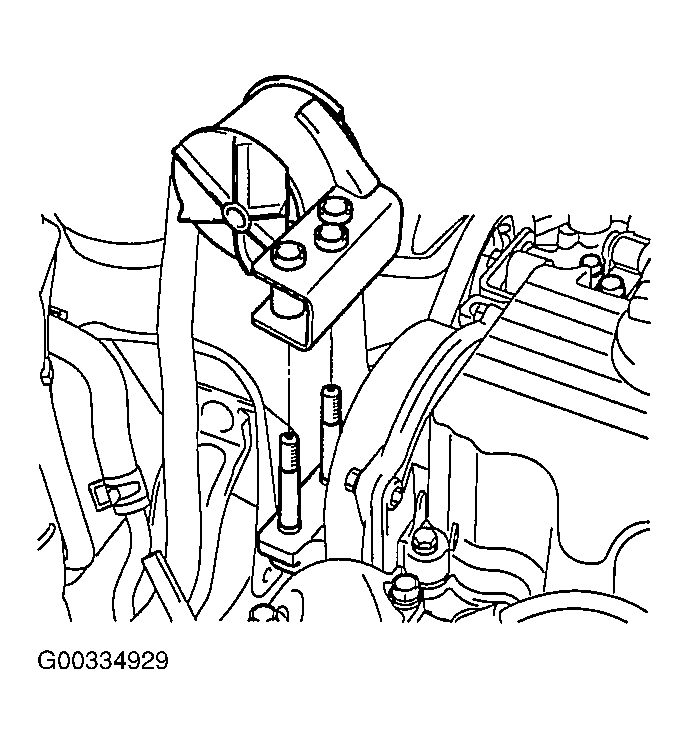

Fig 1: Removing Engine Mounting Support Bracket From Engine

G00334929

Courtesy of HYUNDAI MOTOR CO.
