Hi-Scan (Pro) Check

  1. Turn the ignition OFF.
  2. Connect the Hi-Scan (Pro) to the data link connector located underneath the lower crash pad panel.
  3. Turn the ignition ON.
  4. Use the Hi-Scan (Pro) to check for diagnostic trouble codes.
  5. After completion of the repair or correction of the problem, erase the stored fault codes using the clear key on the Hi-Scan (Pro).
  6. Disconnect the Hi-Scan (Pro).

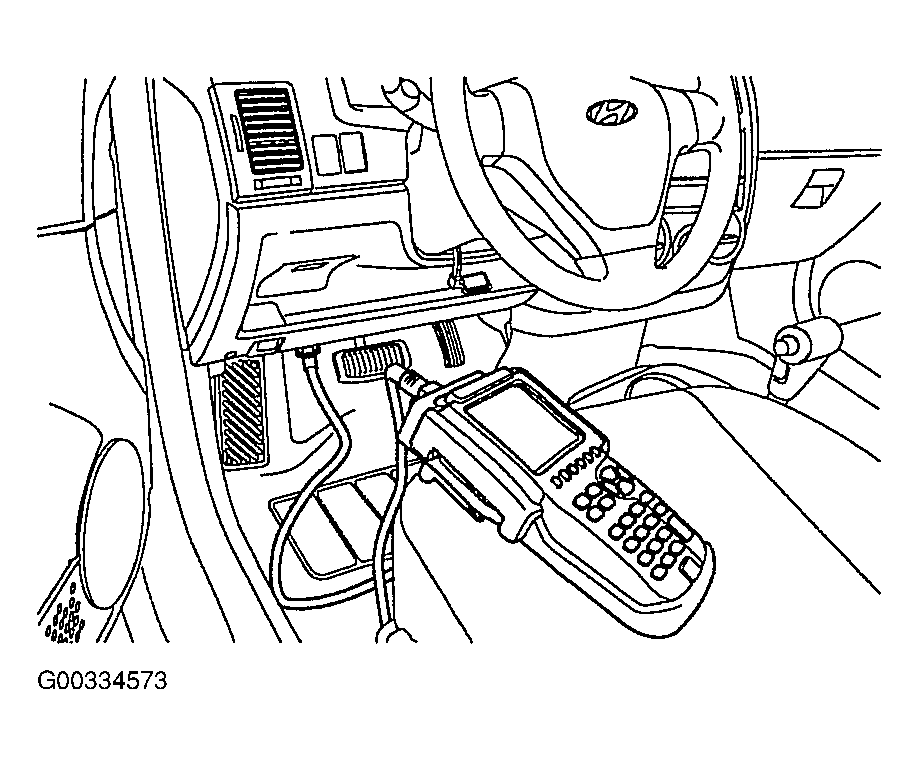

    Fig 1: Identifying Connected Scan Tool
    G00334573Courtesy of HYUNDAI MOTOR CO.
    Fig 2: Data Link Connector
    G00334574Courtesy of HYUNDAI MOTOR CO.
