Inspection Chart For Diagnostic Trouble Codes
Inspection Chart For Diagnostic Trouble Codes
Inspect according to the inspection chart that is appropriate for the malfunction code.

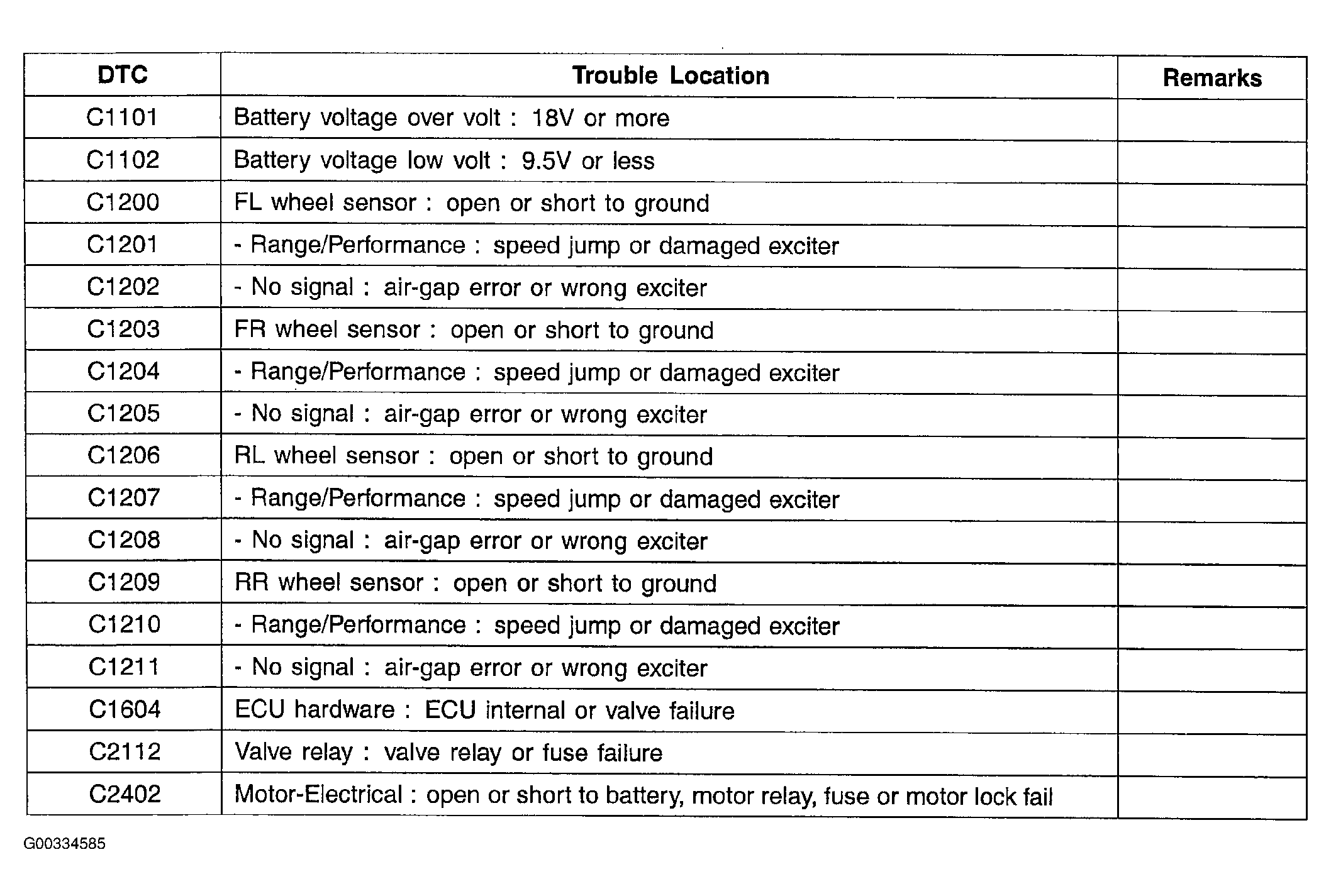

Fig 1: Inspection Chart For Diagnostic Trouble Codes C1101-C2402
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
