Rear Wheel Speed Sensor

  1. Remove the rear wheel speed sensor mounting bolt.

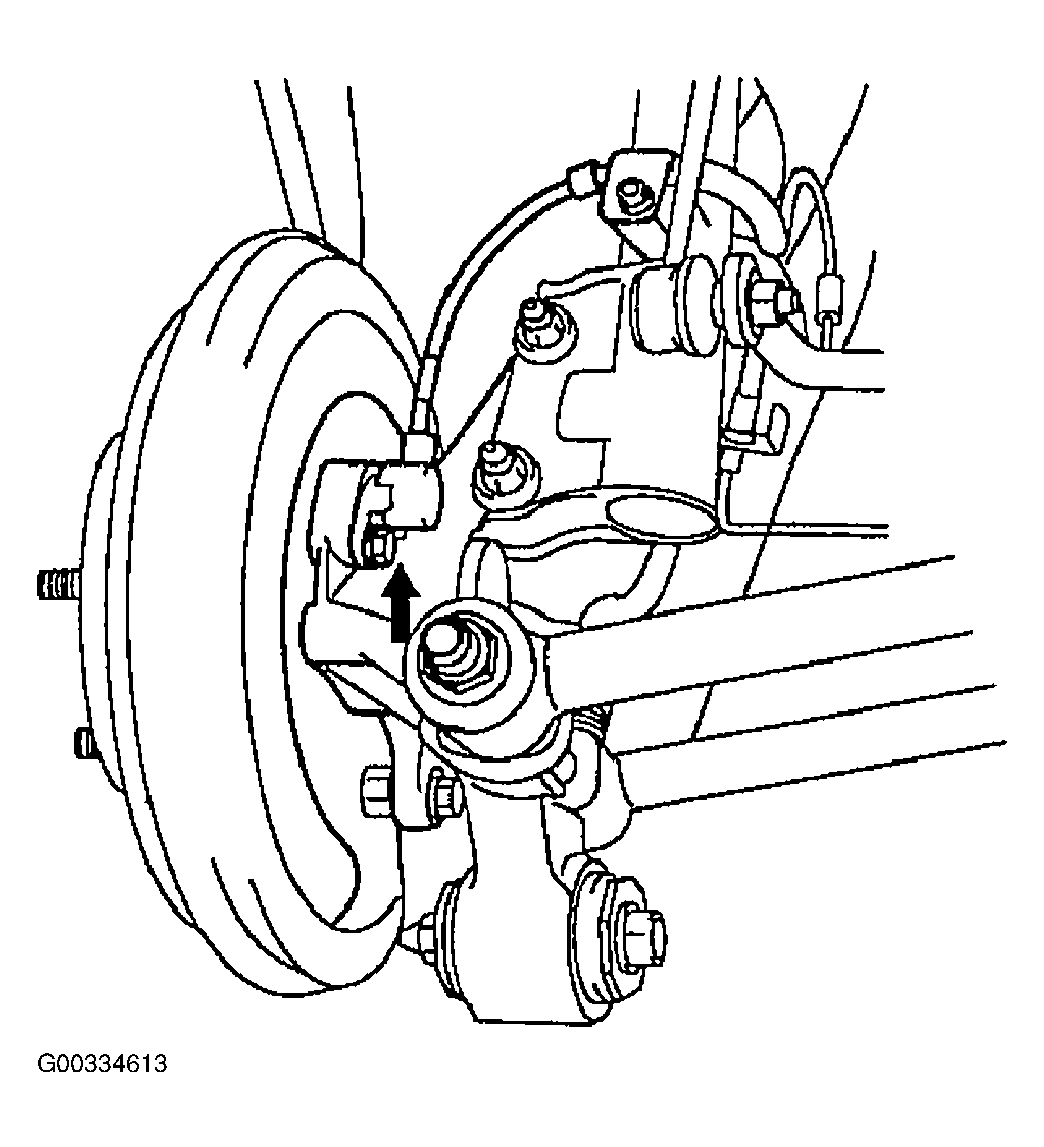

    Fig 1: Locating Rear Wheel Speed Sensor Mounting Bolt
    G00334613Courtesy of HYUNDAI MOTOR CO.
  2. Remove the luggage trim and disconnect the wire connector from the rear wheel speed sensor.

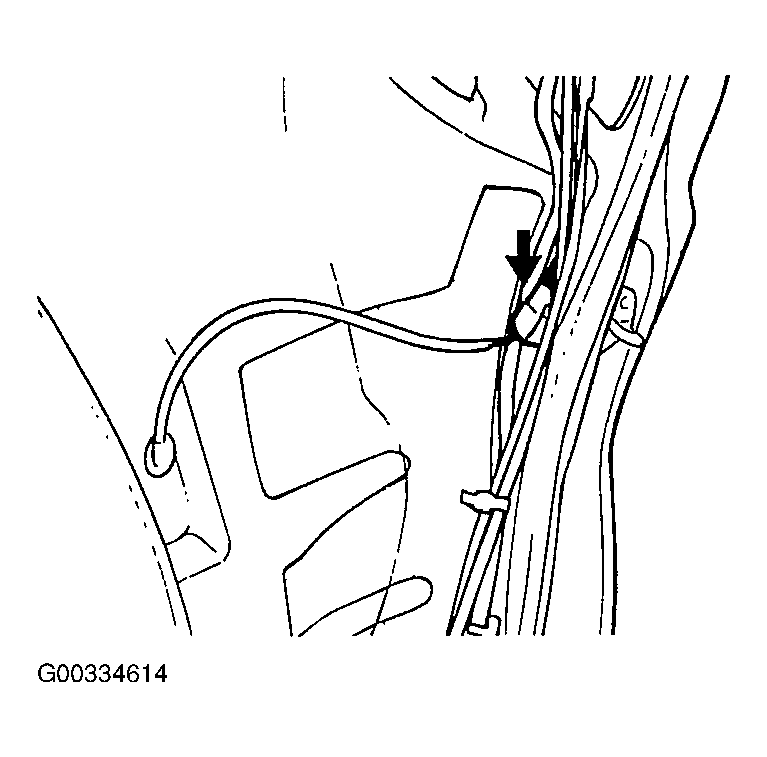

    Fig 2: Locating Rear Wheel Speed Sensor Wire Connector
    G00334614Courtesy of HYUNDAI MOTOR CO.
