Removal & Installation

Disconnect the negative (-) battery terminal.
Remove the 2 bolts and disconnect the air bag connector and the horn connector, then remove the air bag module.
CAUTION: Remove the horn pad only for vehicle without air bag.

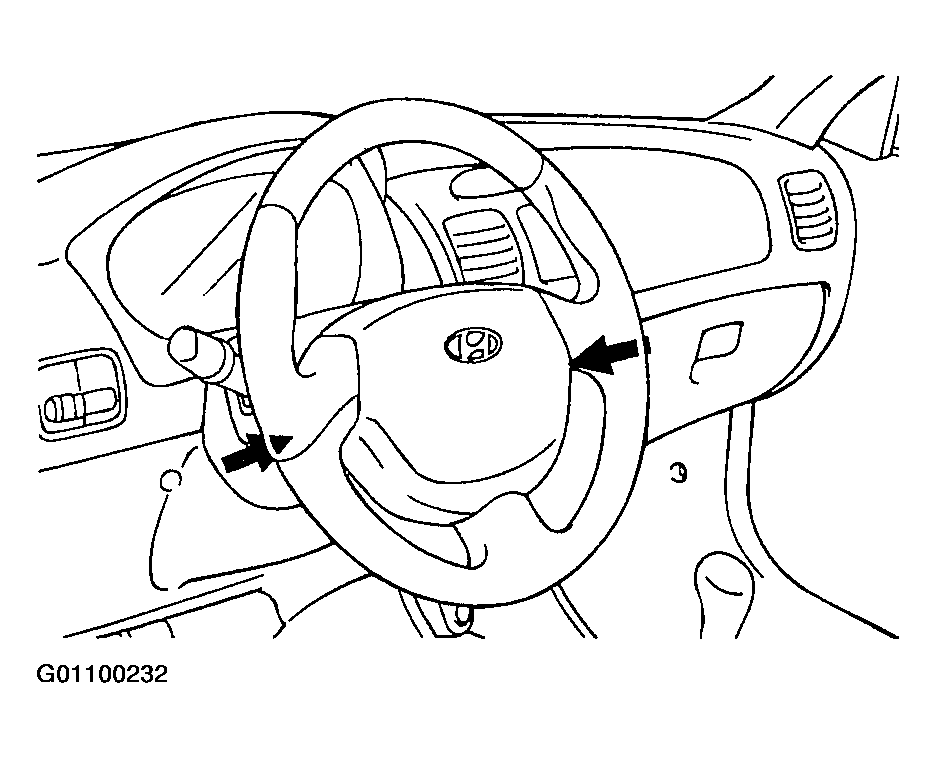

Fig 1: Removing Drivers Air Bag Module
Courtesy of HYUNDAI MOTOR CO.
Remove the steering wheel lock nut.

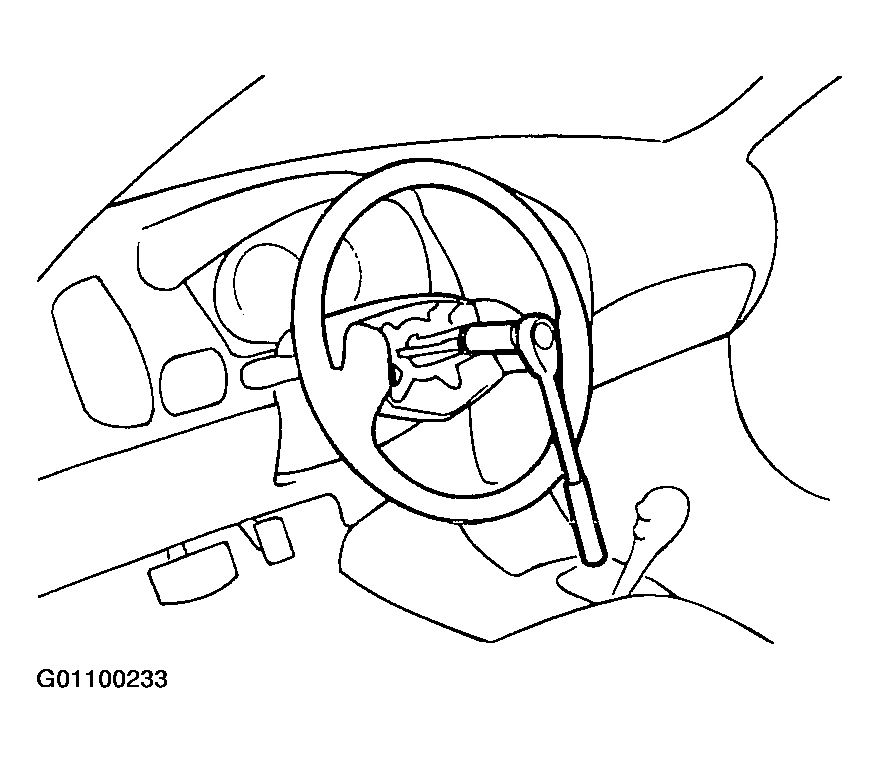

Fig 2: Removing Steering Wheel Lock Nut
Courtesy of HYUNDAI MOTOR CO.
Remove the steering wheel with special tool (09561-11002).
CAUTION: Do not hammer on the steering wheel to remove it. Doing so may damage the collapsible mechanism.

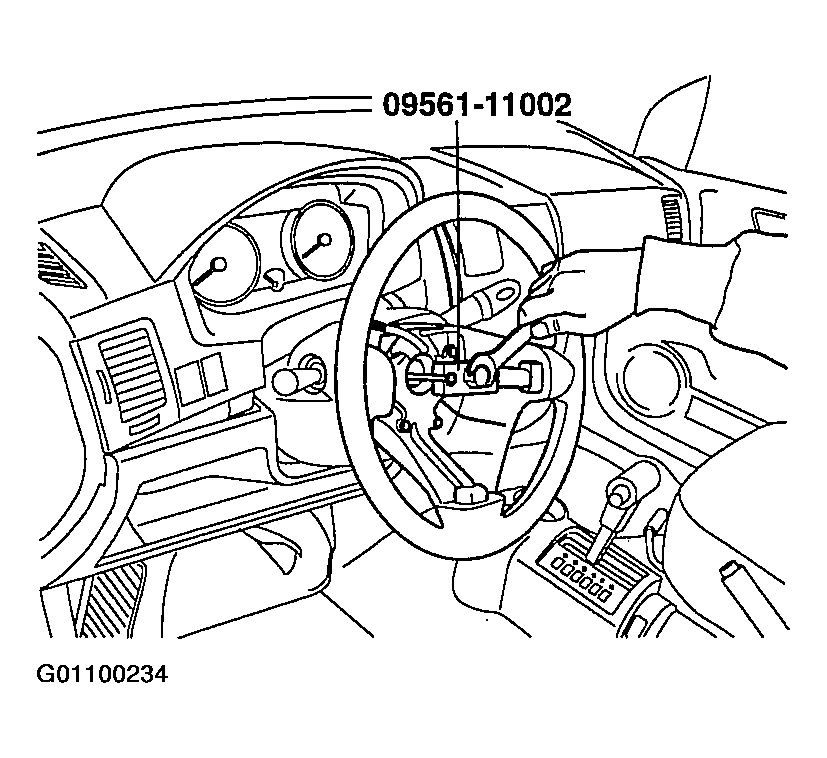

Fig 3: Removing Steering Wheel
Courtesy of HYUNDAI MOTOR CO.
Remove the steering column shroud after removing 3 screws.

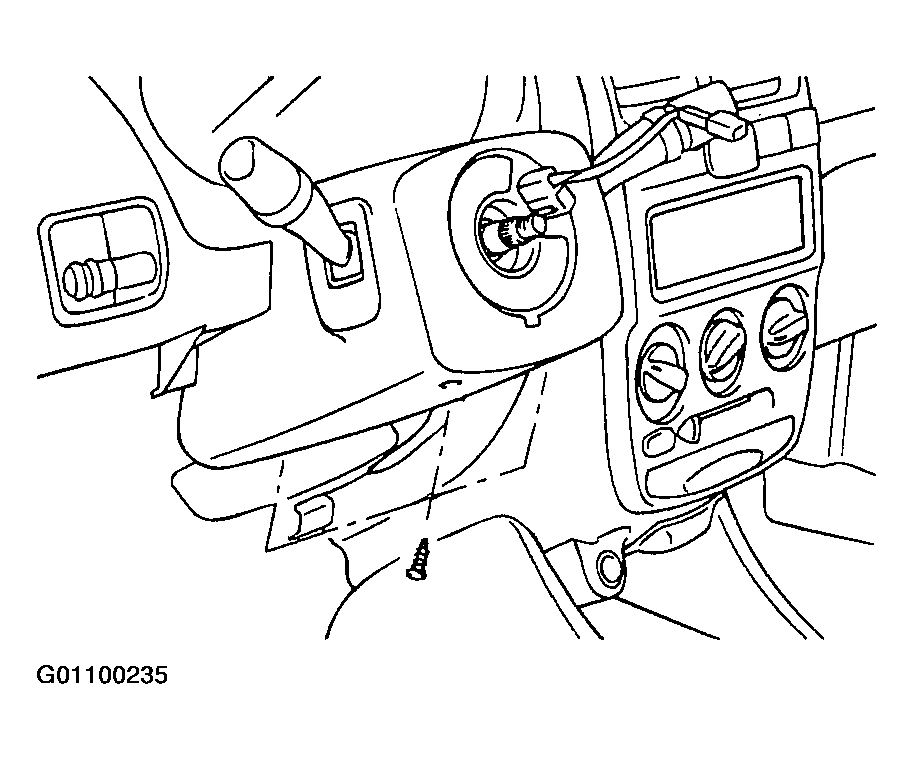

Fig 4: Removing Steering Column Shrouds
Courtesy of HYUNDAI MOTOR CO.
Remove the screws holding the multi-function switch, then disconnect the wire connector.
Remove the multi-function switch assembly.

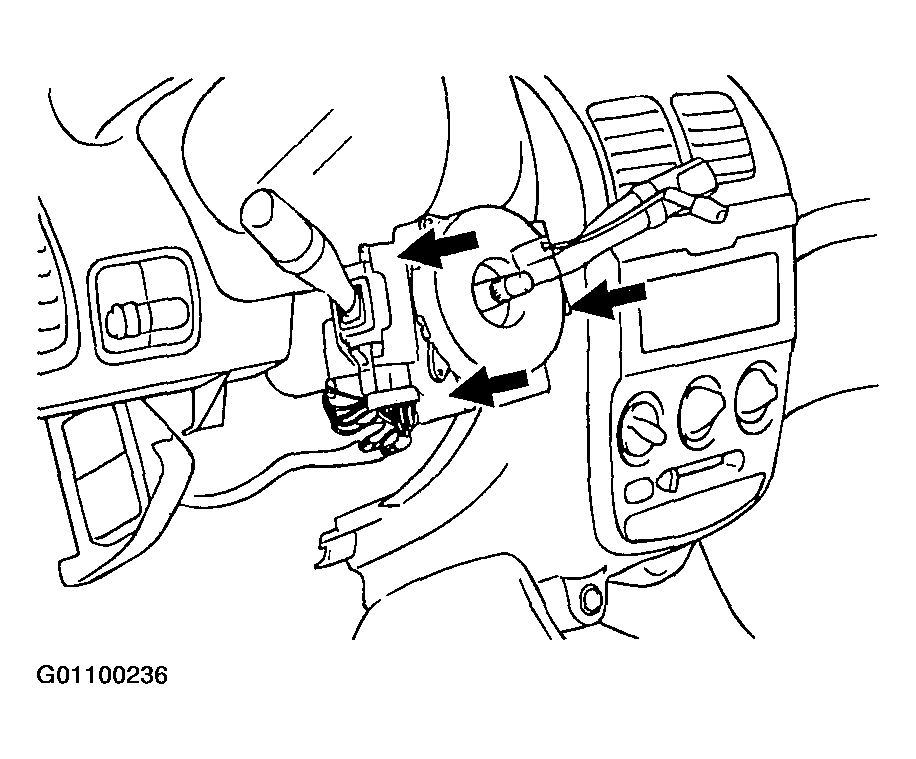

Fig 5: Removing Multi-Function Switch Assembly
Courtesy of HYUNDAI MOTOR CO.
Remove the driver's side crash pad lower panel.

Fig 6: Removing Driver's Side Lower Crash Pad
Courtesy of HYUNDAI MOTOR CO.
Remove the steering column mounting bolts.

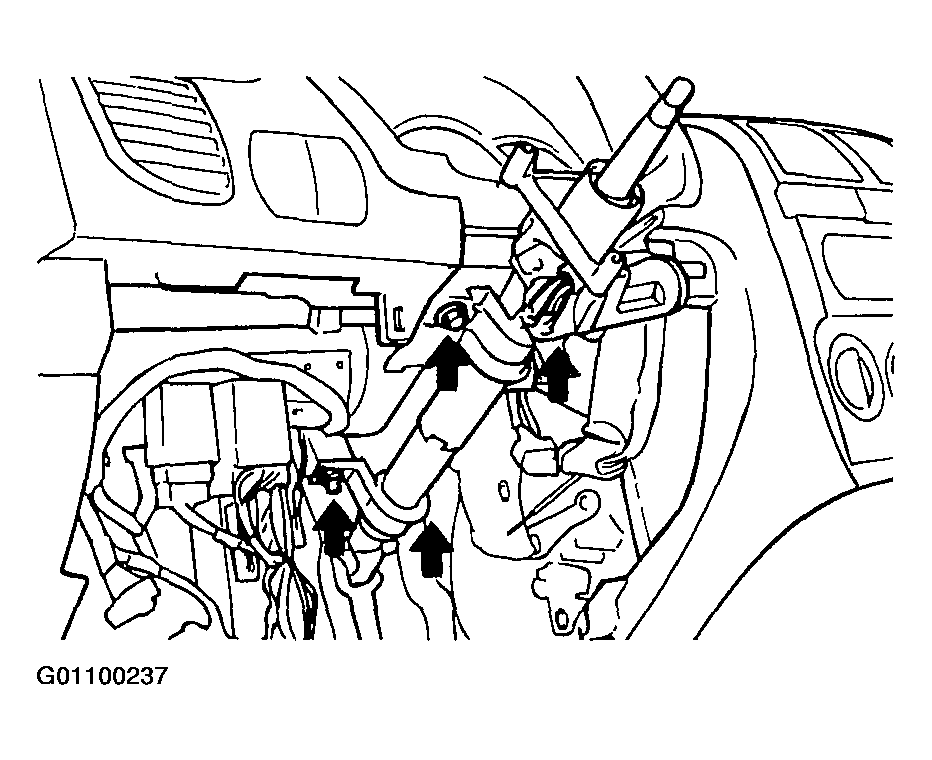

Fig 7: Removing Steering Column Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.
Remove the key lock assembly from the steering column shaft.
Installation is the reverse of removal.
