Audio System: Components

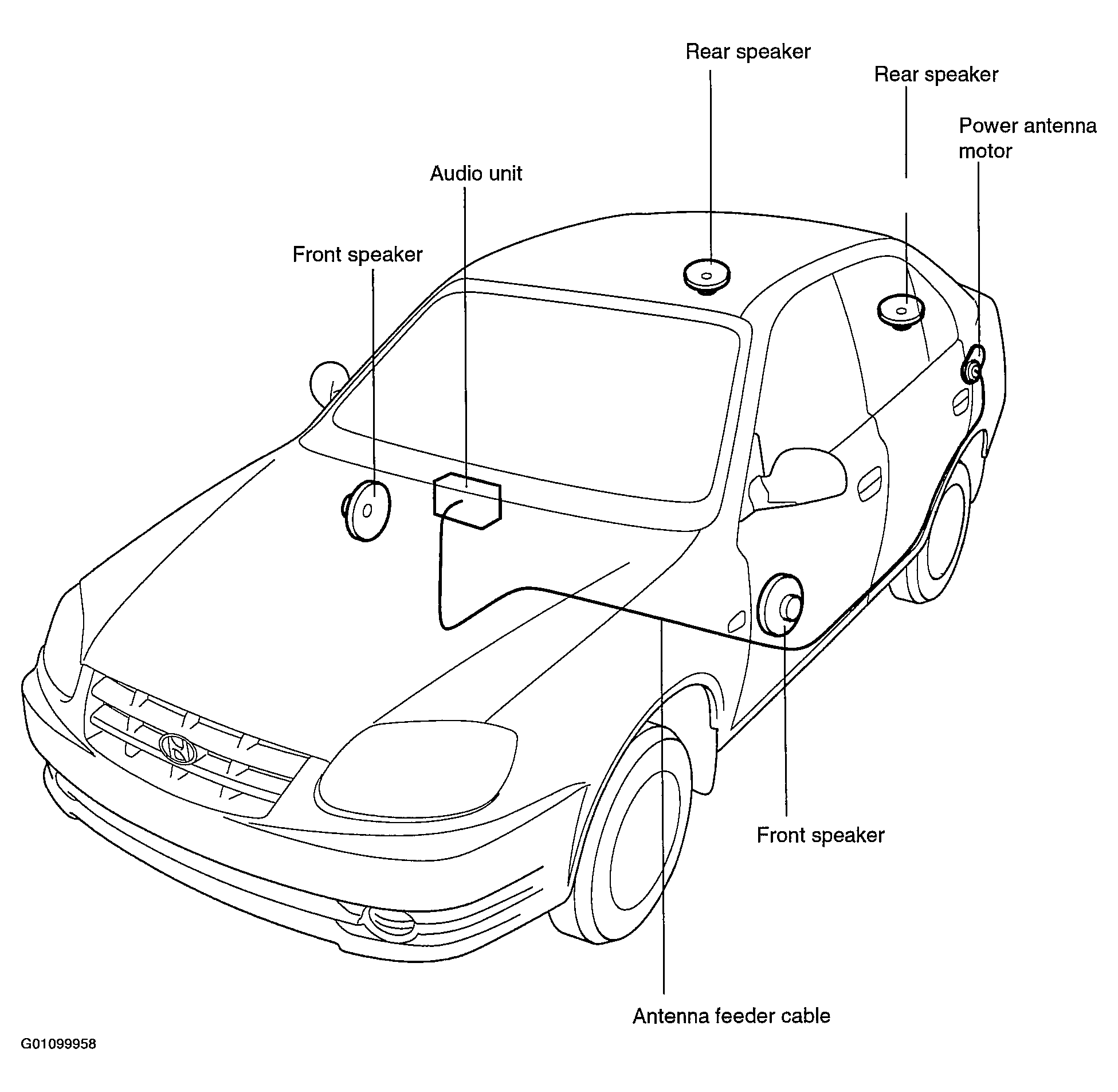

Fig 1: Identifying Audio System Components
G01099958Courtesy of HYUNDAI MOTOR CO.

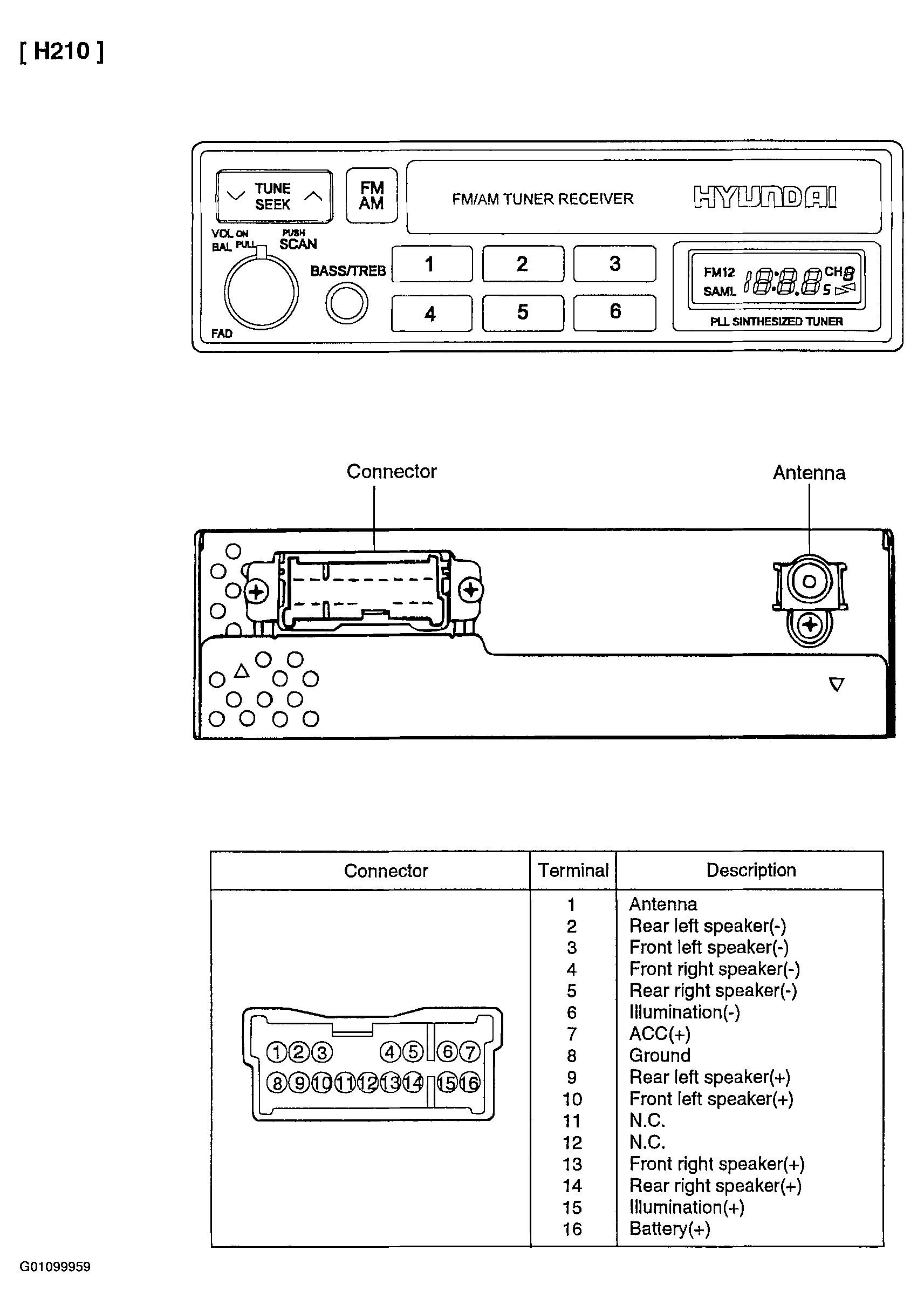

Fig 2: Identifying AM/FM Tuner Receiver & Connector Terminal Identification
G01099959Courtesy of HYUNDAI MOTOR CO.

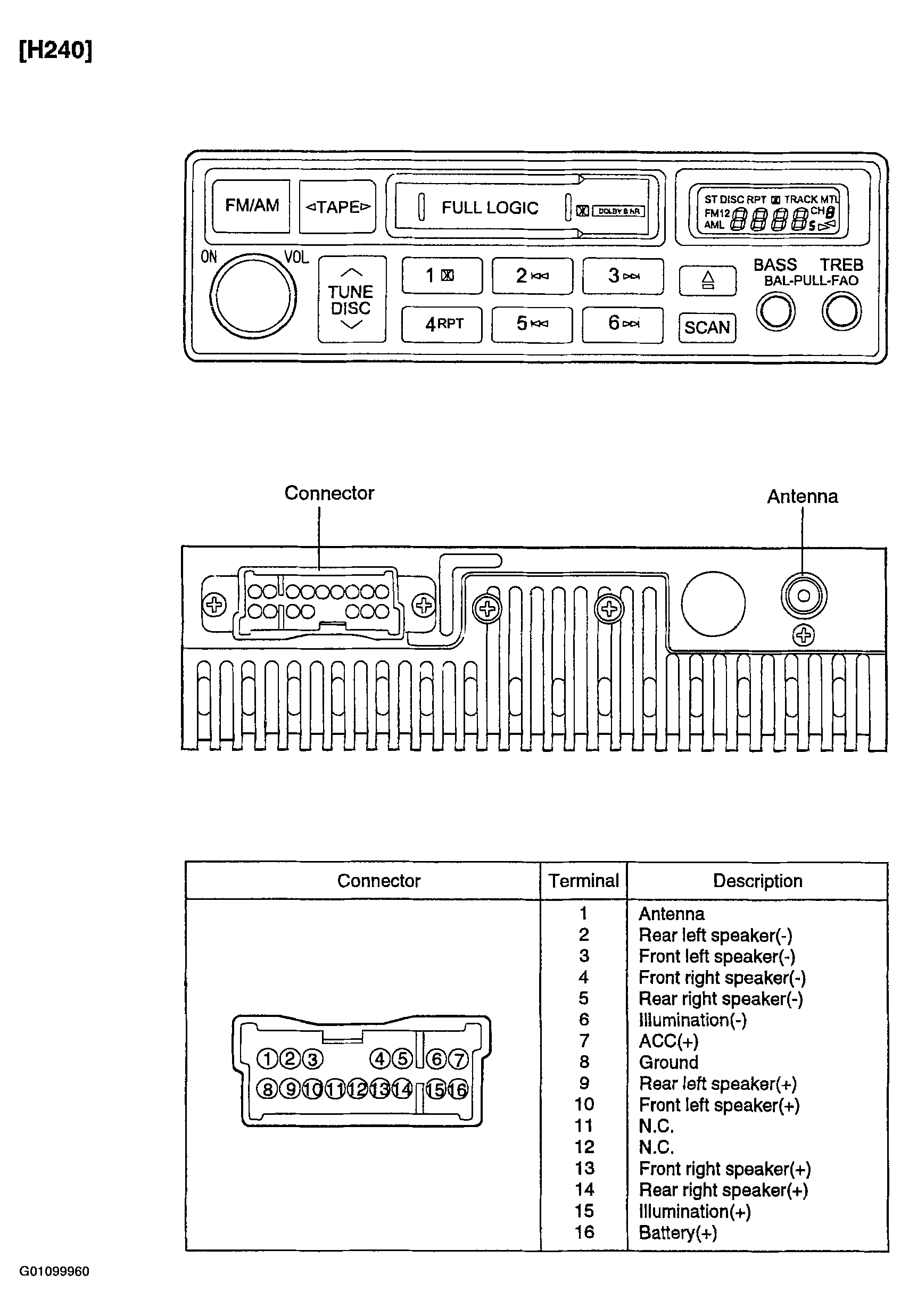

Fig 3: Identifying AM/FM Tuner Receiver/Tape Player & Connector Terminal Identification
G01099960Courtesy of HYUNDAI MOTOR CO.

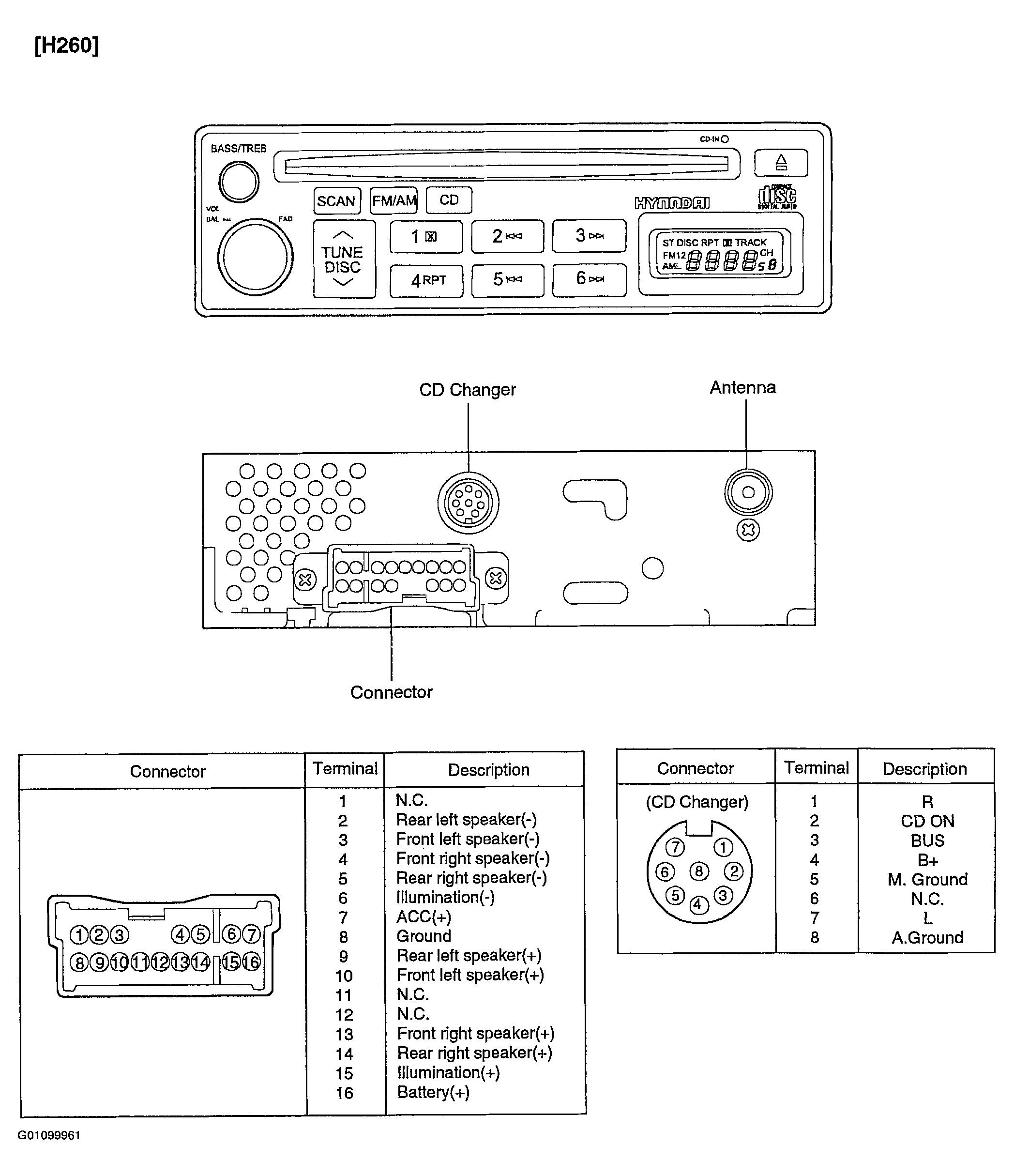

Fig 4: Identifying AM/FM Tuner Receiver/ CD Player & Connector Terminal Identification
G01099961Courtesy of HYUNDAI MOTOR CO.
