Signal Wave Form & Data

This is the wave form of vehicle sensor when it drives 40Km/h.

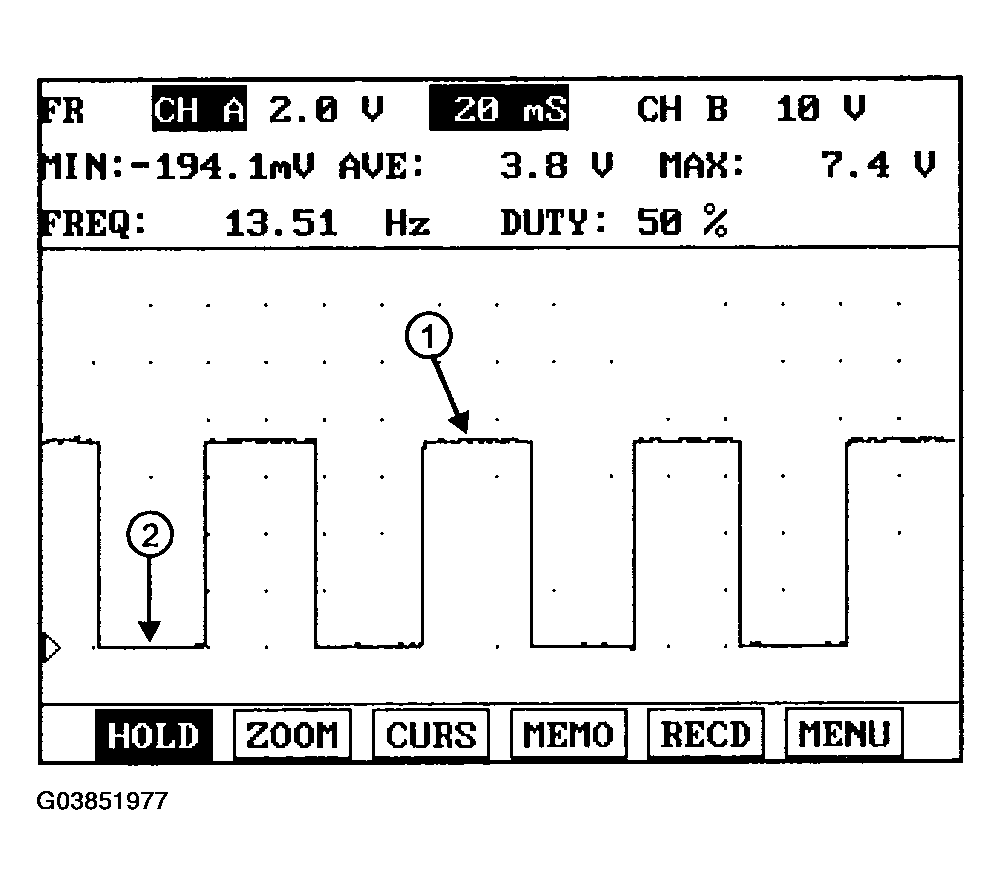

Fig 1: Vehicle Sensor Wave Form

Courtesy of HYUNDAI MOTOR CO.

• The voltage at point (1) should be below 0.8V and at point (2) should be above 7V.
• The frequency of vehicle sensor must increase as the RPM increases
