Signal Circuit Inspection

Check for short to ground in harness
1. Ignition "OFF"
2. Disconnect Fuel sender connector and PCM connector.
3. Ignition "ON" & Engine "OFF"
4. Measure resistance between terminal 1 and 3 of Fuel sender harness connector.
5. Measure resistance between terminal 1 and 3 of Fuel sender harness connector and chassis ground.
  Specification: infinite

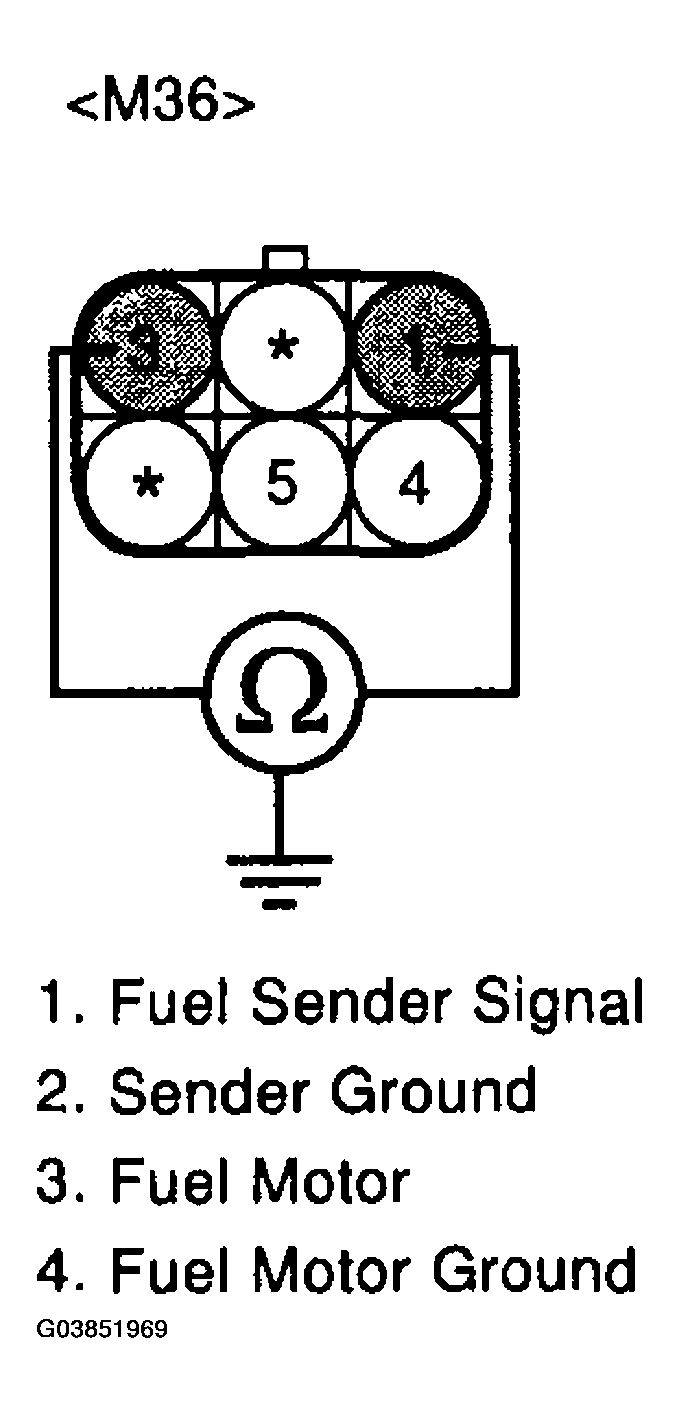

  Fig 1: Measuring Resistance Between Terminal 1 And 3 Of Fuel Sender Harness Connector And Chassis Ground
  Courtesy of HYUNDAI MOTOR CO.
6. Is measure resistance within Specification?
  YES
  - Go to "COMPONENT INSPECTION " procedure.
  NO
  - Short circuit to ground between Fuel sender harness connector and sender signal circuit.
  - Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
