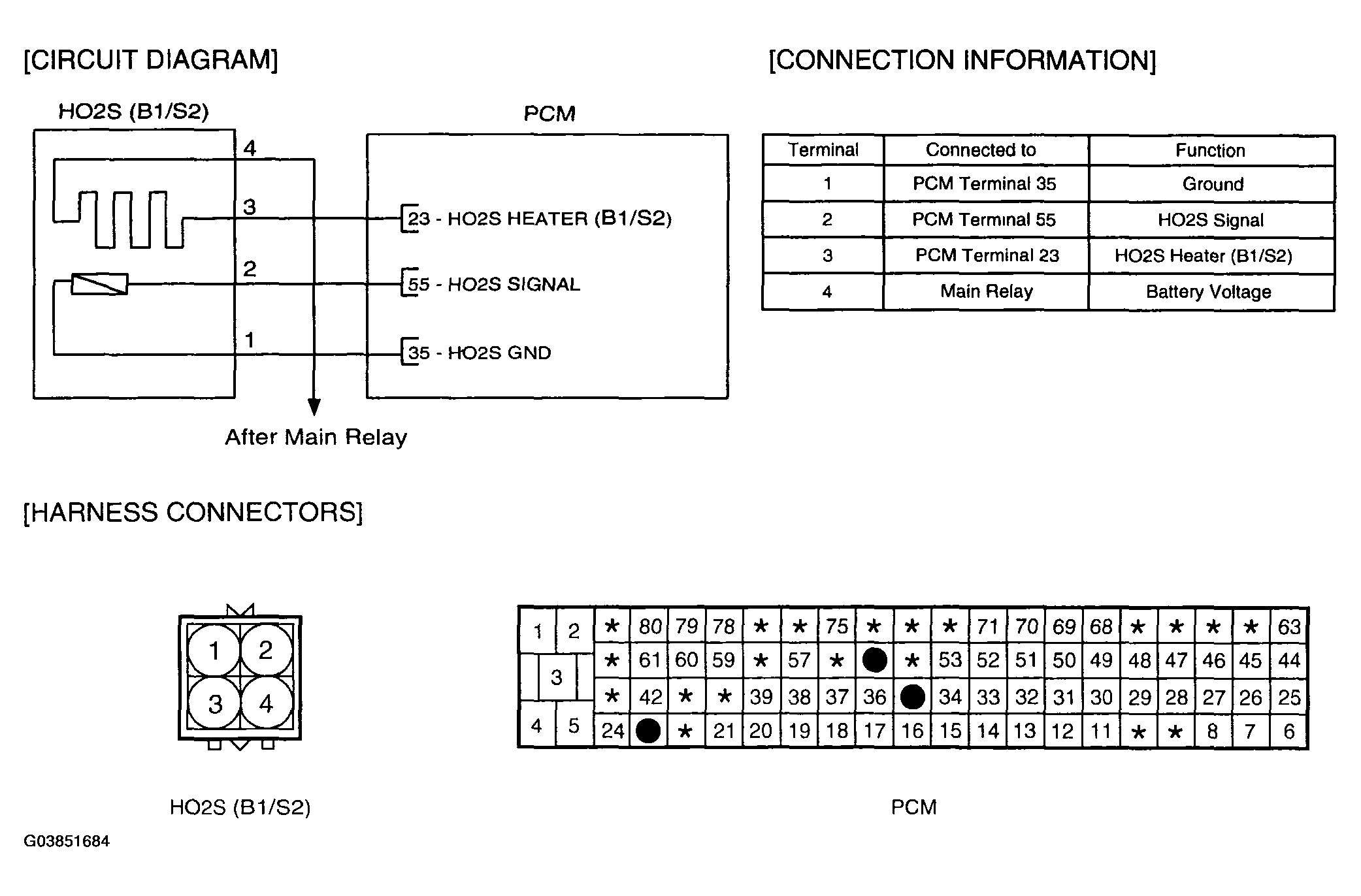

Home >> Hyundai >> 2004 >> Accent Base >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> Engine Control System Diagnosis (1 Of 2) >> DTC Troubleshooting Procedures >> DTC P0036: O2 Sensor Heater Control Circuit (Bank 1/Sensor 2) >> Schematic Diagram
