Tightening Torque

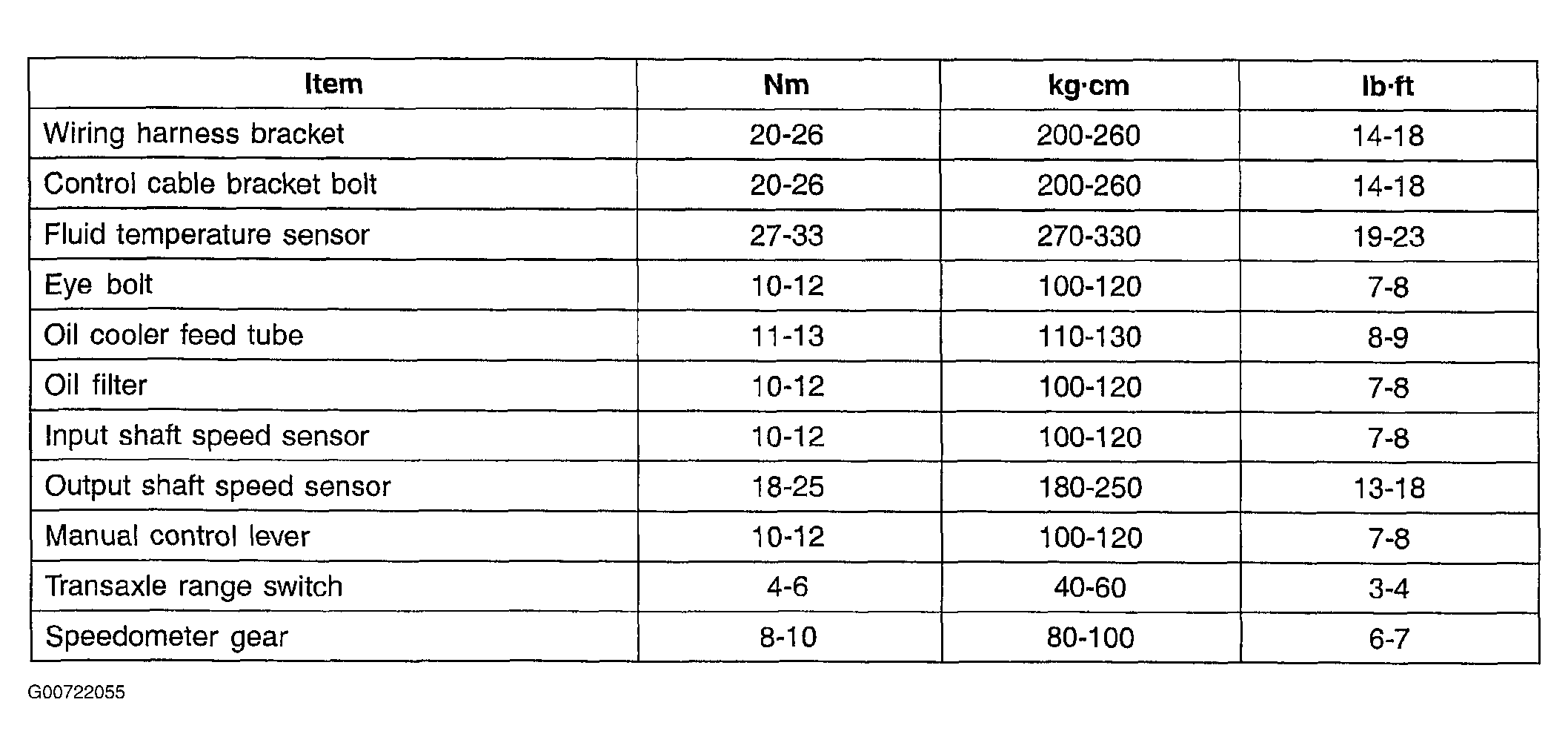

Fig 1: Tightening Torque (1 Of 2)

G00722055

Courtesy of HYUNDAI MOTOR CO.

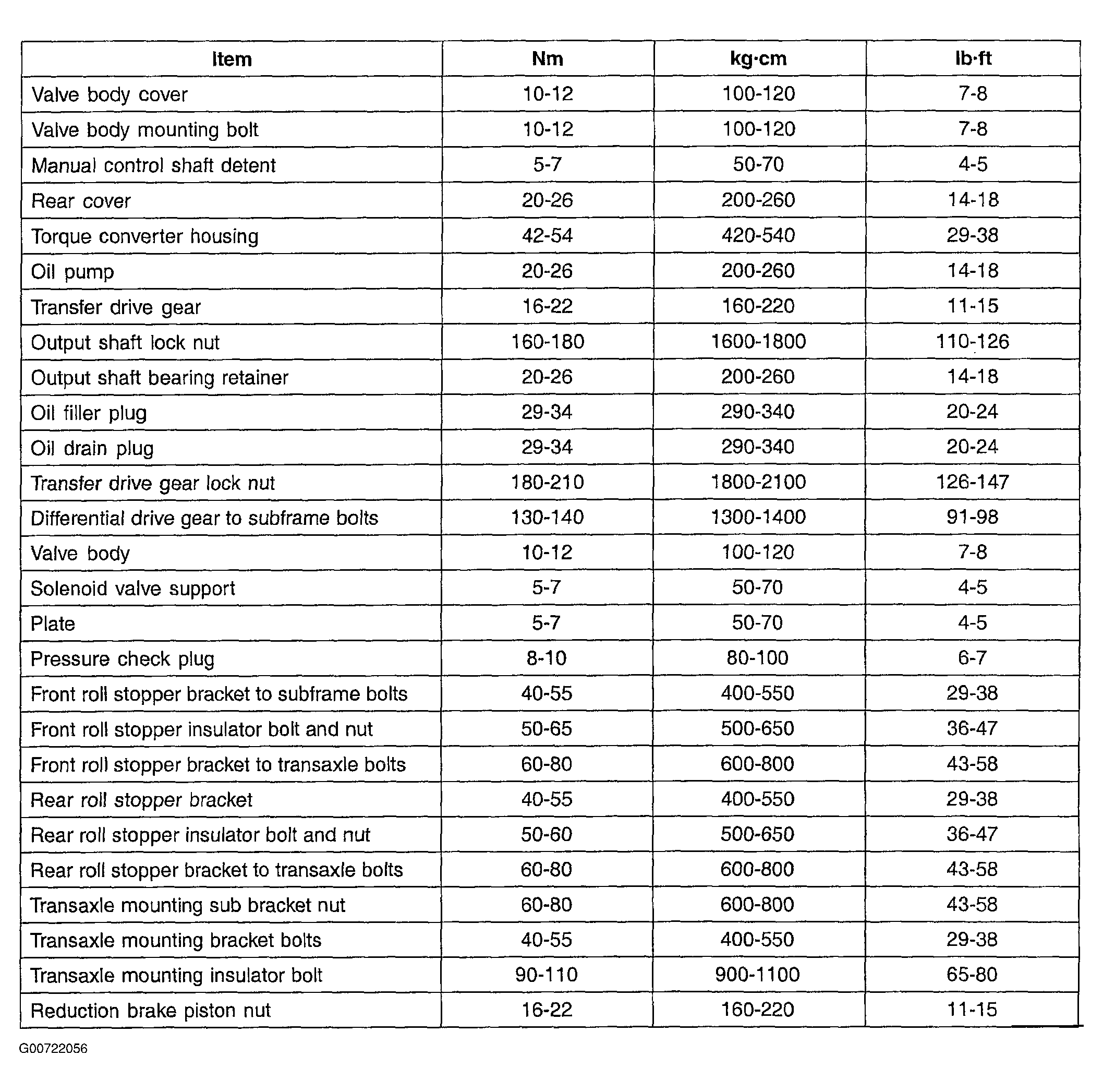

Fig 2: Tightening Torque (2 Of 2)

G00722056

Courtesy of HYUNDAI MOTOR CO.
