Repair and Diagnosis
>>
Suspension
>>
Front Suspension System
>>
Trouble Shooting
Trouble Shooting

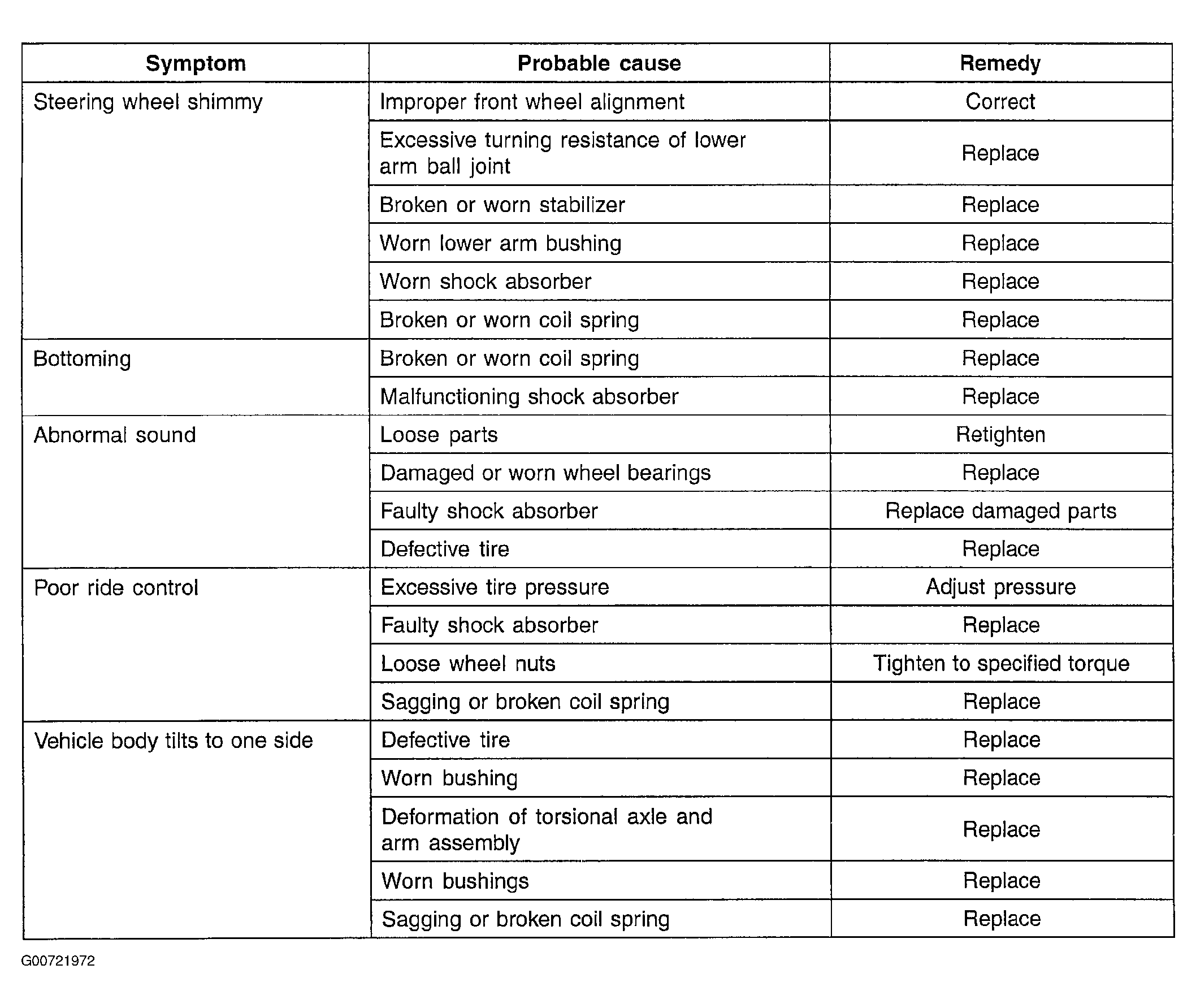

Fig 1: Trouble Shooting (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

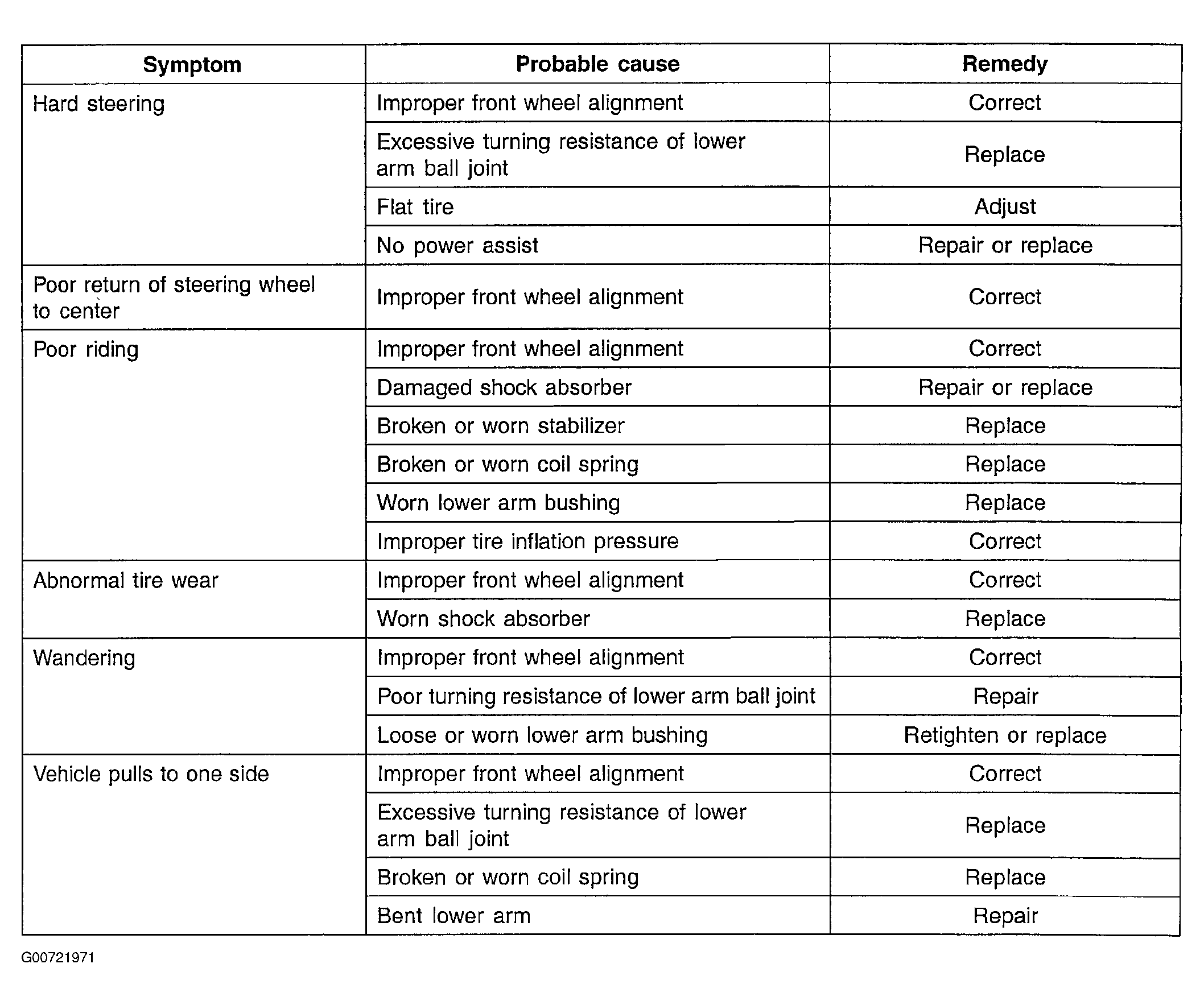

Fig 2: Trouble Shooting (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
