Lower Arm: Components

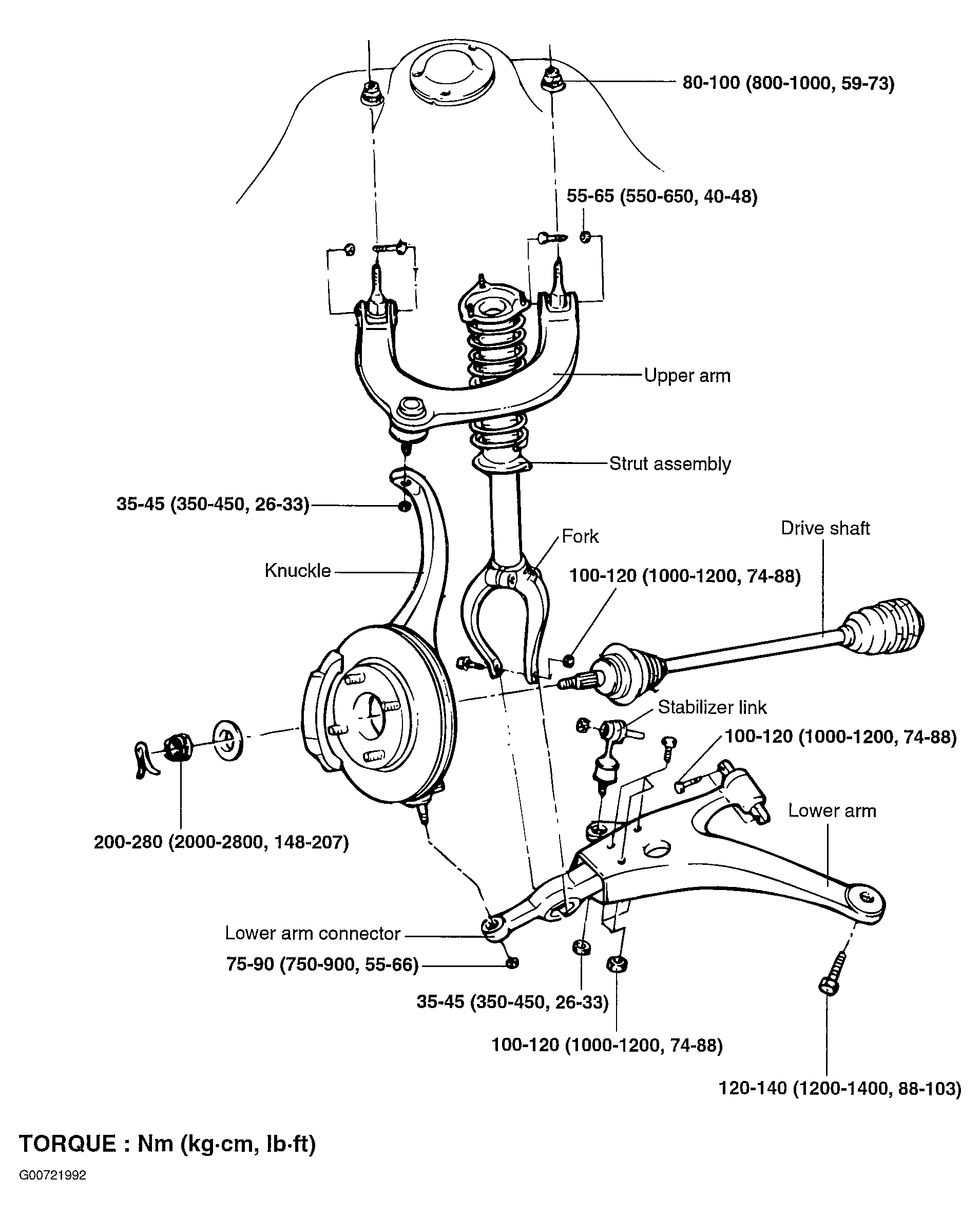

Fig 1: Identifying Lower Arm Components

G00721992

Courtesy of HYUNDAI MOTOR CO.
