3.5L V6 Engine
>>
Trouble Shooting
Trouble Shooting

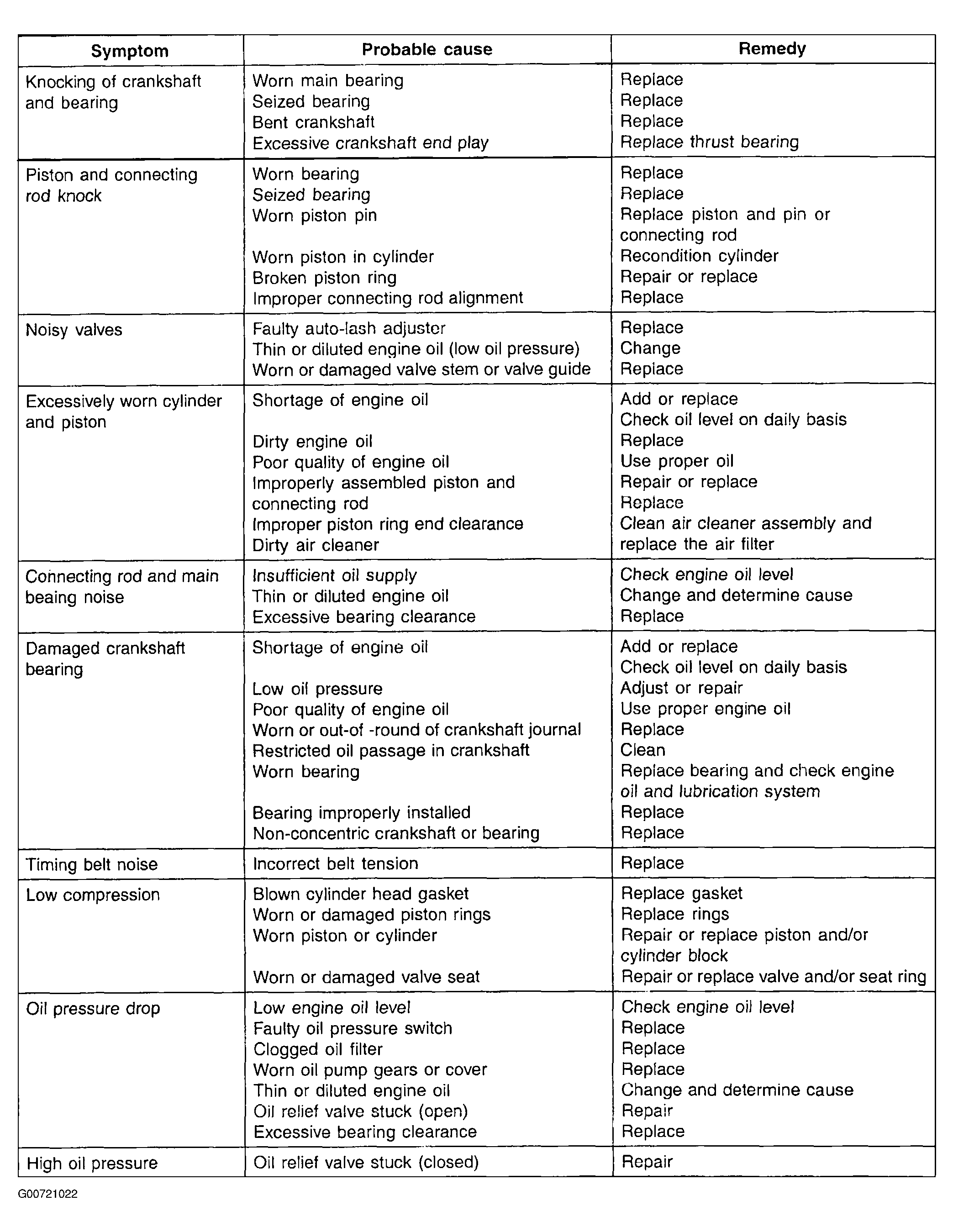

Fig 1: Trouble Shooting Table (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

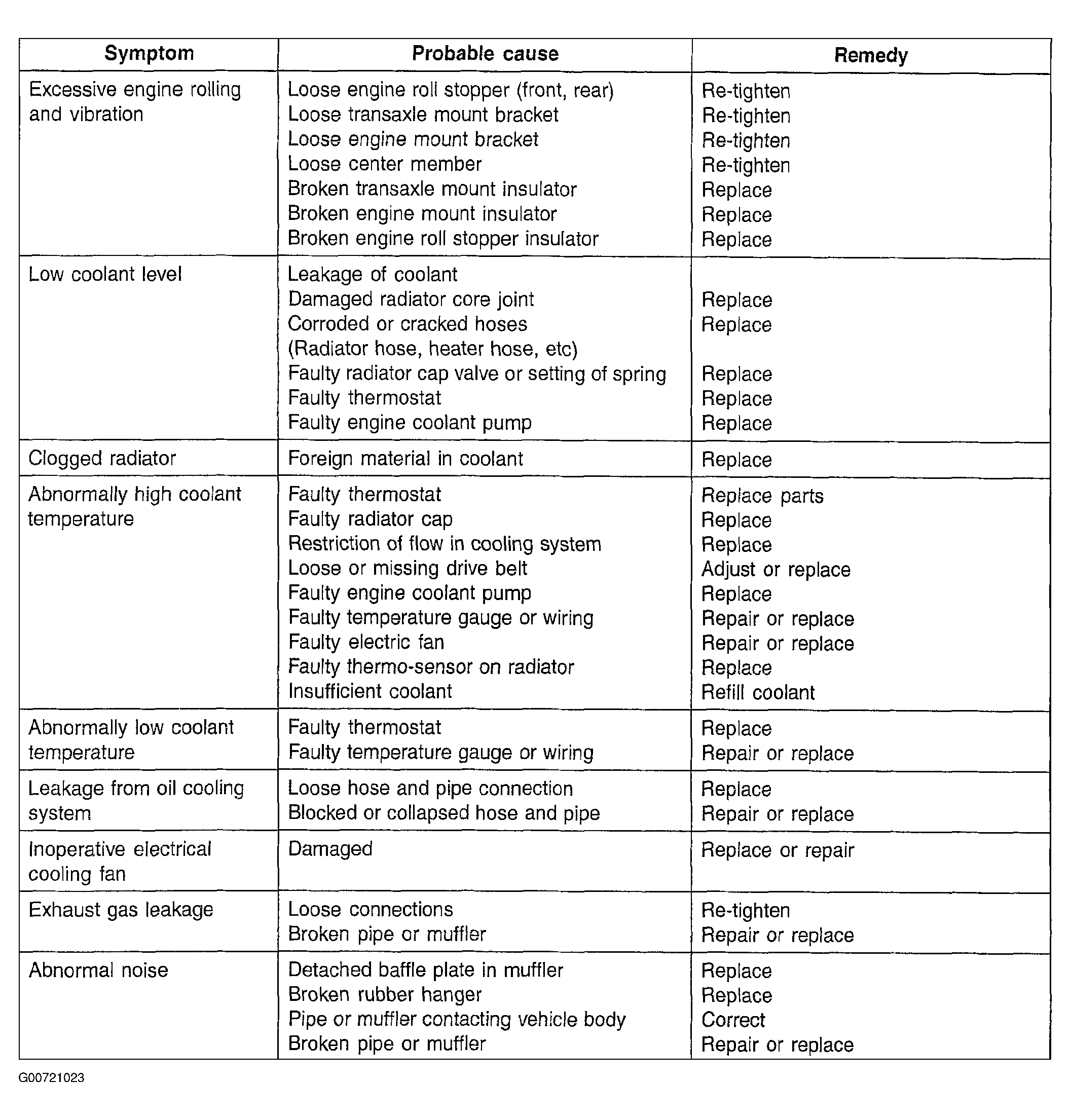

Fig 2: Trouble Shooting Table (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
