Special Tools
Special Tools

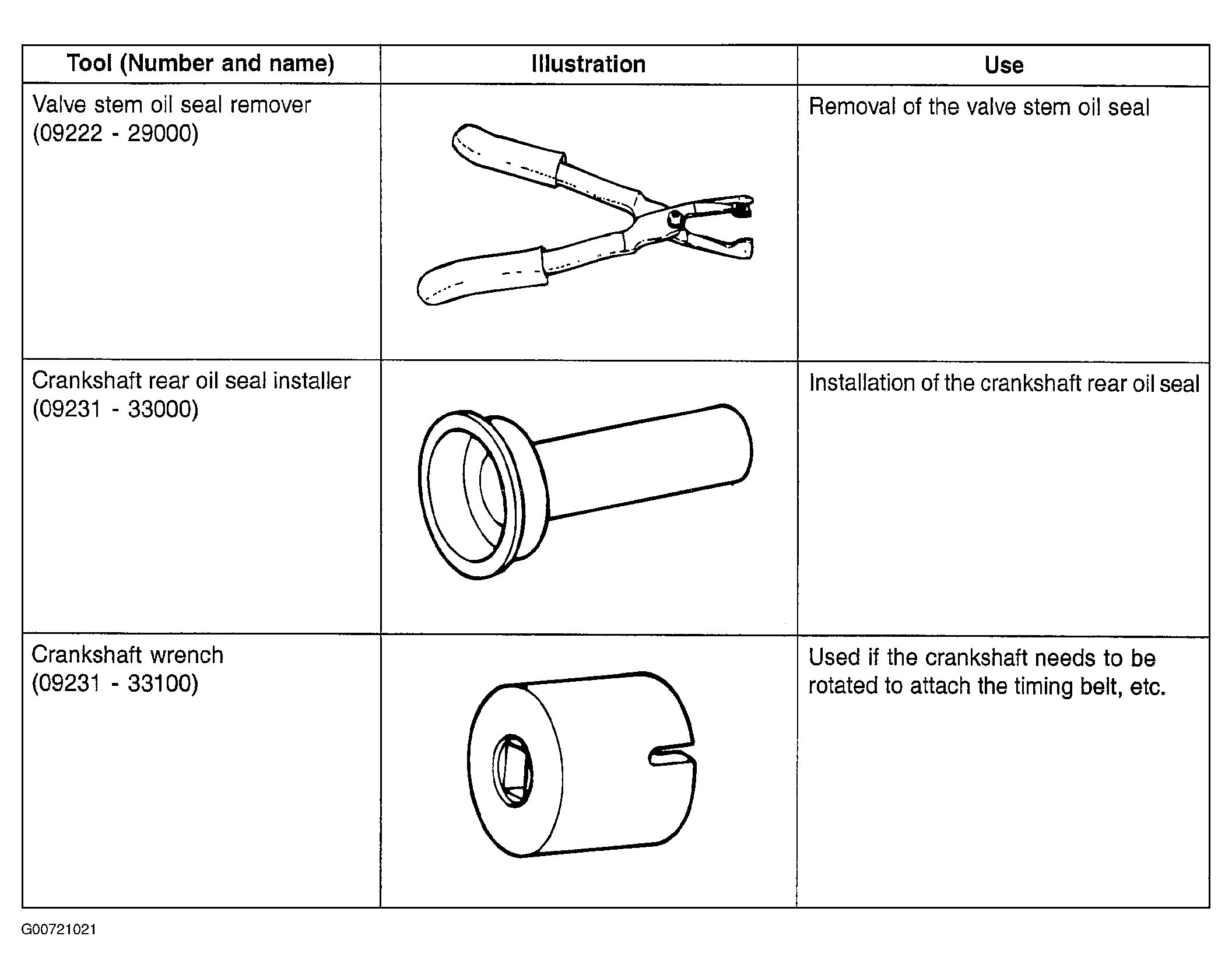

Fig 1: Special Tools (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Fig 2: Special Tools (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
