Intake Manifold: Removal

  1. Remove the air intake hose connected to the throttle body.

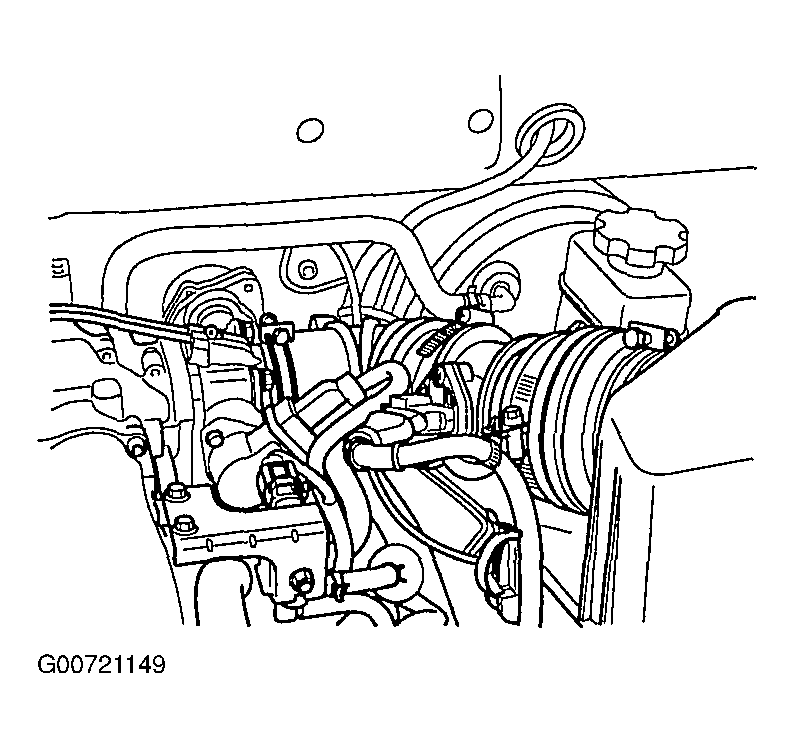

    Fig 1: Removing Throttle Body Air Intake Hose
    G00721149Courtesy of HYUNDAI MOTOR CO.
  2. Remove the engine coolant hose and throttle body.
  3. Remove the P.C.V. hose and brake booster vacuum hoses.

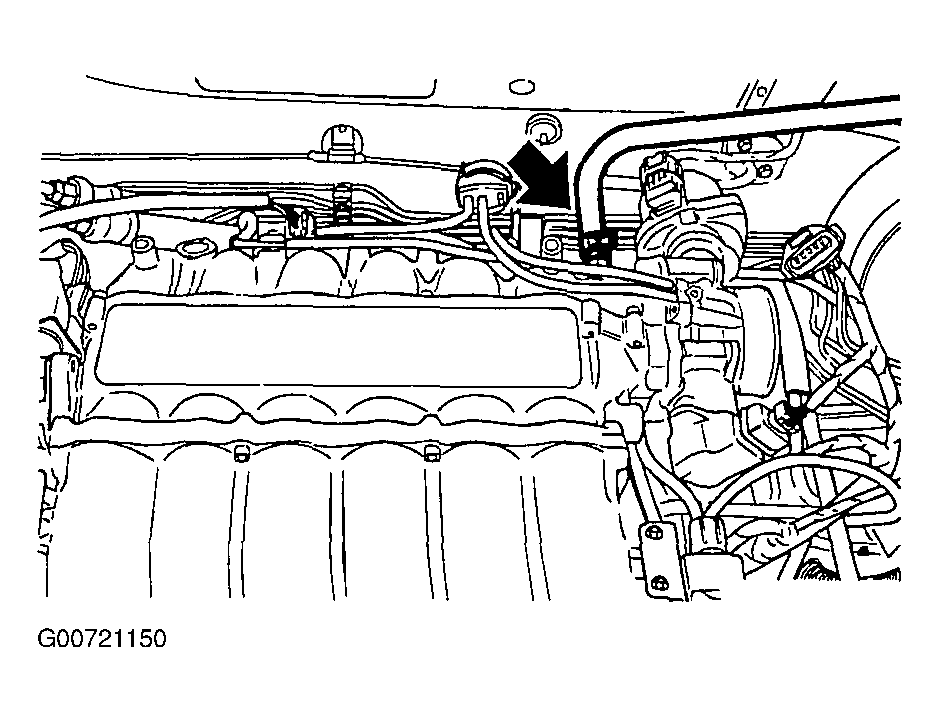

    Fig 2: Removing PCV & Brake Booster Vacuum Hoses
    G00721150Courtesy of HYUNDAI MOTOR CO.
  4. Disconnect the vacuum hose connections.
  5. Remove the surge tank stay.

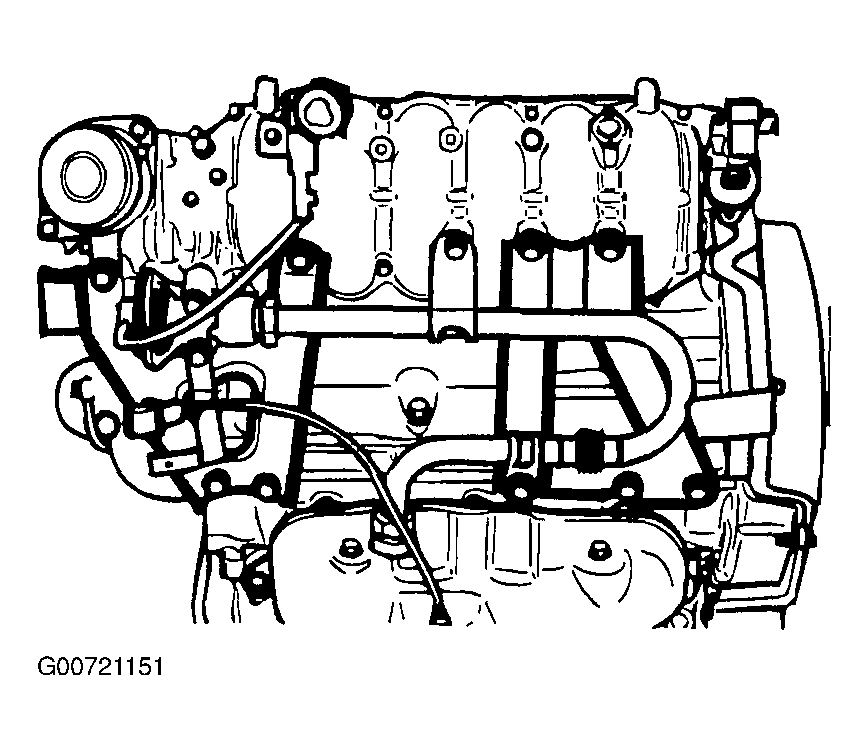

    Fig 3: Removing Surge Tank Stay
    G00721151Courtesy of HYUNDAI MOTOR CO.
  6. Remove the surge tank.
  7. Remove the surge tank and gasket.
    Fig 4: Removing Surge Tank Gasket
    G00721152Courtesy of HYUNDAI MOTOR CO.
  8. Disconnect the fuel injector harness connector.

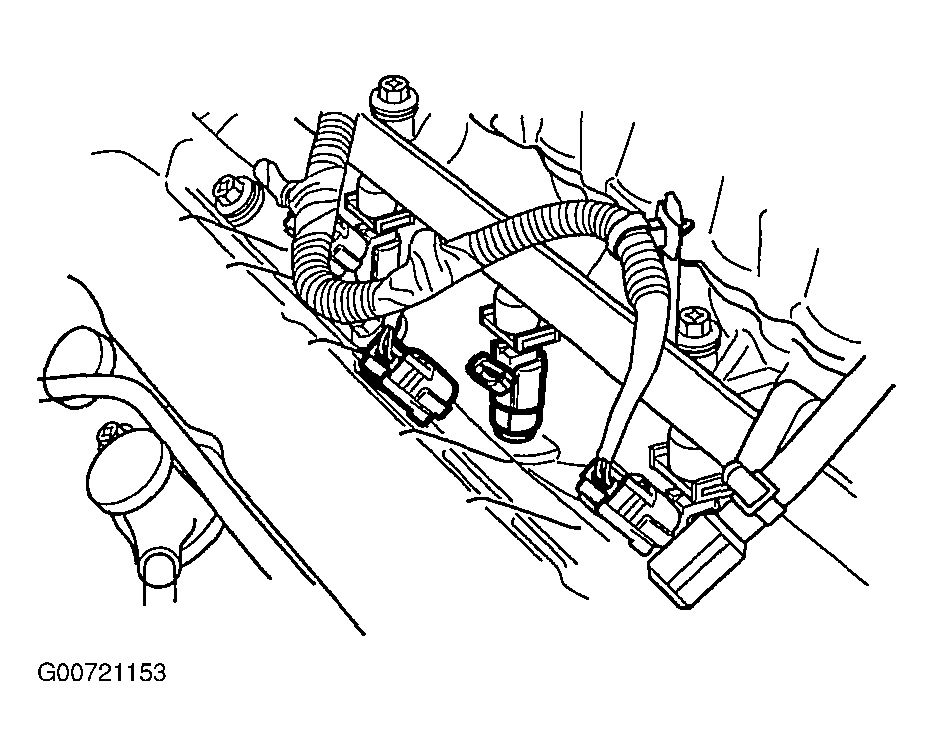

    Fig 5: Disconnecting Fuel Injector Harness Connectors
    G00721153Courtesy of HYUNDAI MOTOR CO.
  9. Remove the delivery pipe with the fuel injector and the pressure regulator.
    NOTE: When the delivery pipe is removed, be careful not to drop an injector.

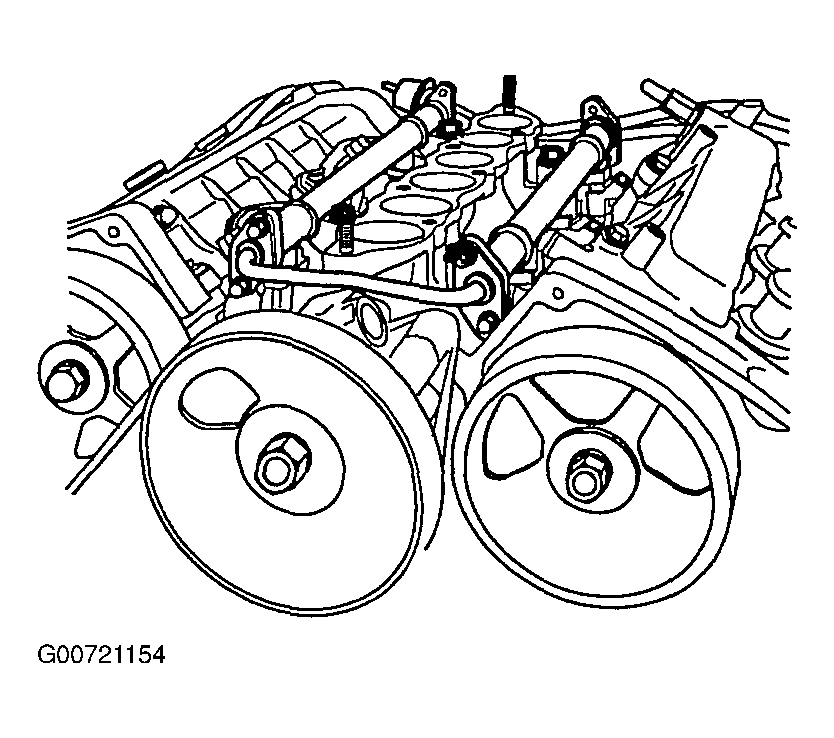

    Fig 6: Removing Fuel Delivery Pipe With Fuel Injectors
    G00721154Courtesy of HYUNDAI MOTOR CO.
  10. Disconnect the wiring harness of the coolant sensor assembly.
